Rear Safing Sensor Replacement: Installation

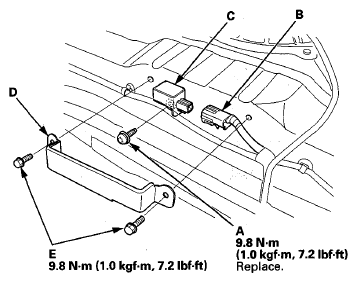

- Install the rear safing sensor with a new TORX bolt (A), using a TORX T30 bit. Connect the floor wire harness 2P connector (B) to the rear safing sensor(C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the rear safing sensor cover (D) with two bolts (E).
- Do the 12 volt battery terminal reconnection procedure (see
RECONNECTION
).
- Clear any DTCs with the HDS (see HOW TO CLEAR DTCS ).
- Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
- Install all removed parts.
