Climate Control Unit Knob Replacement

Climate Control Unit Knob Replacement

NOTE:

- Do not work in a dusty or dirty place.
- Do not work with dusty hands.
- Discharge static electricity from your body before and during the work.
- Do not touch the circuit board(s) with your bare hands.

1. Remove the climate control unit Climate Control Unit Removal/Installation.

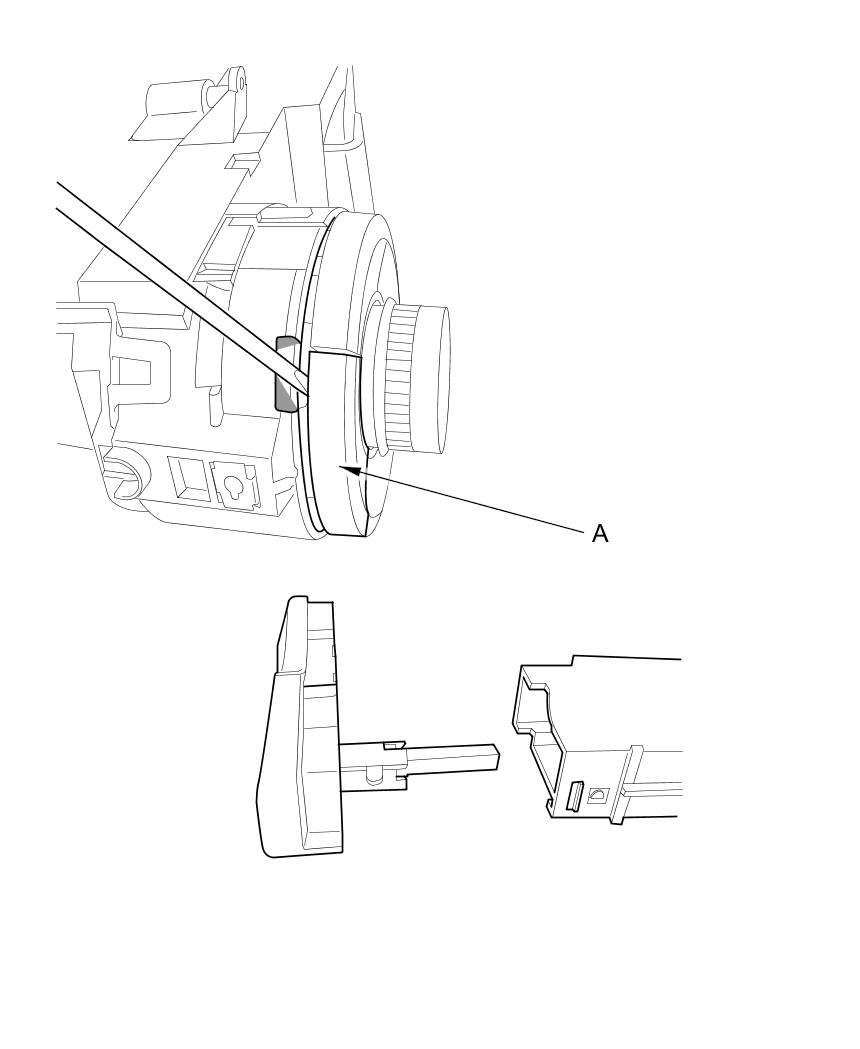

2. Remove the knob (A).






3. Install the knob in the reverse order of removal. After installation, operate the various functions to see whether it works properly.

4. Run the self-diagnostic function to confirm that there are no problems in the system.
