Climate Control Unit Removal/Installation

Climate Control Unit Removal/Installation

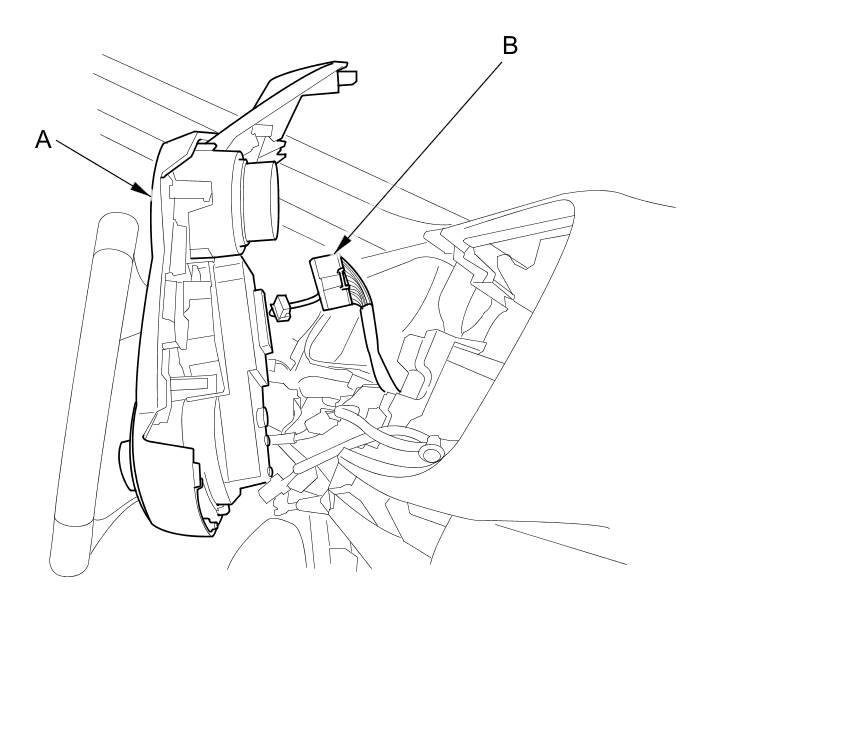

1. Remove the instrument panel (A) Instrument Panel Removal / Installation.





2. Disconnect the connector (B) and the climate control unit.

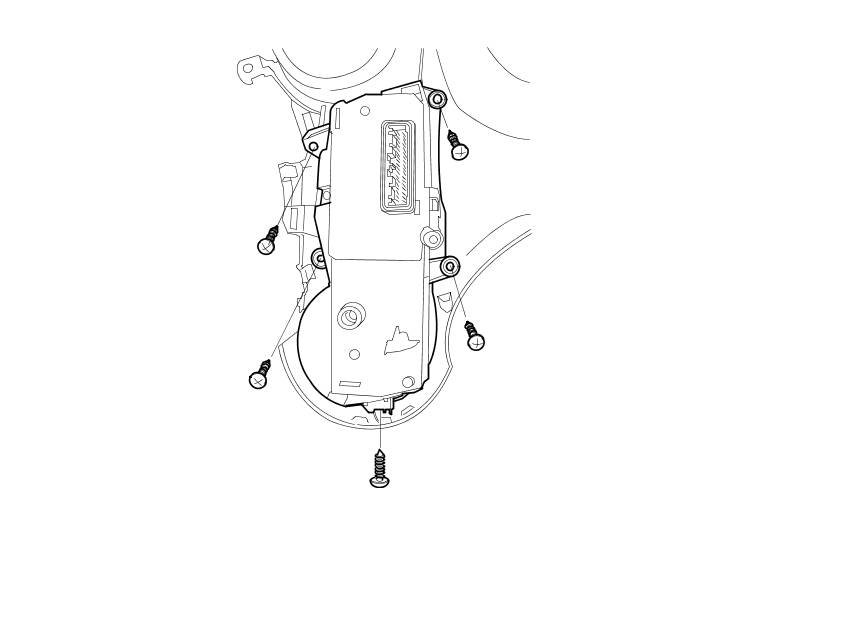

3. Remove the self-tapping screws from the climate control unit.

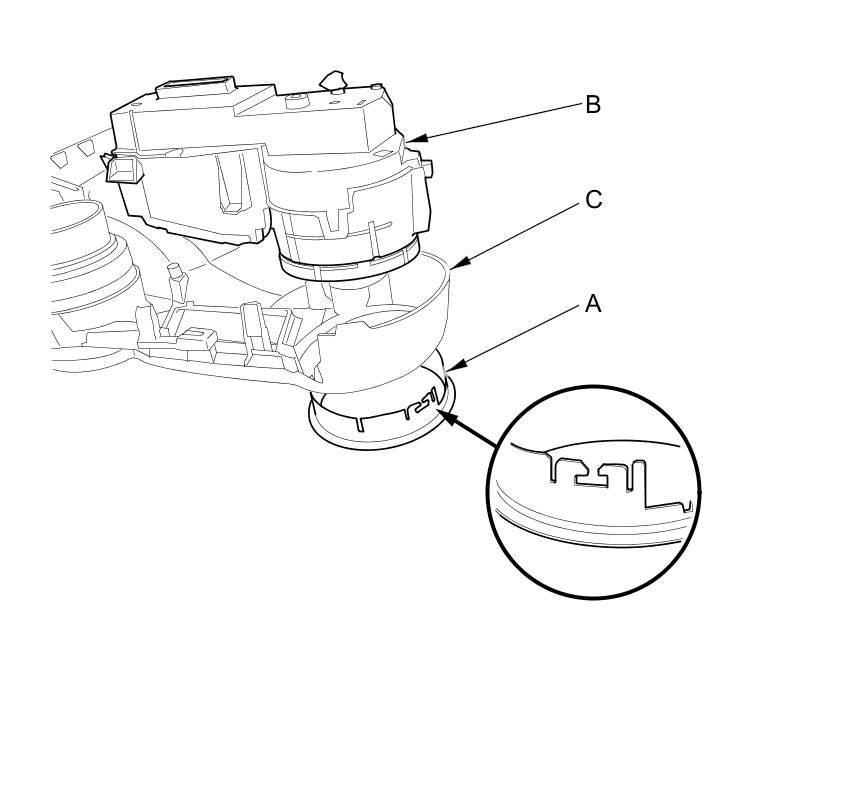

4. Remove the ring cover (A), and detach the climate control unit (B) from the instrument panel (C).





5. Install the climate control unit in the reverse order of removal. After installation, operate the various functions to see whether it works properly.

6. Run the self-diagnostic function to confirm that there are no problems in the system.
