Fuse To Components Index

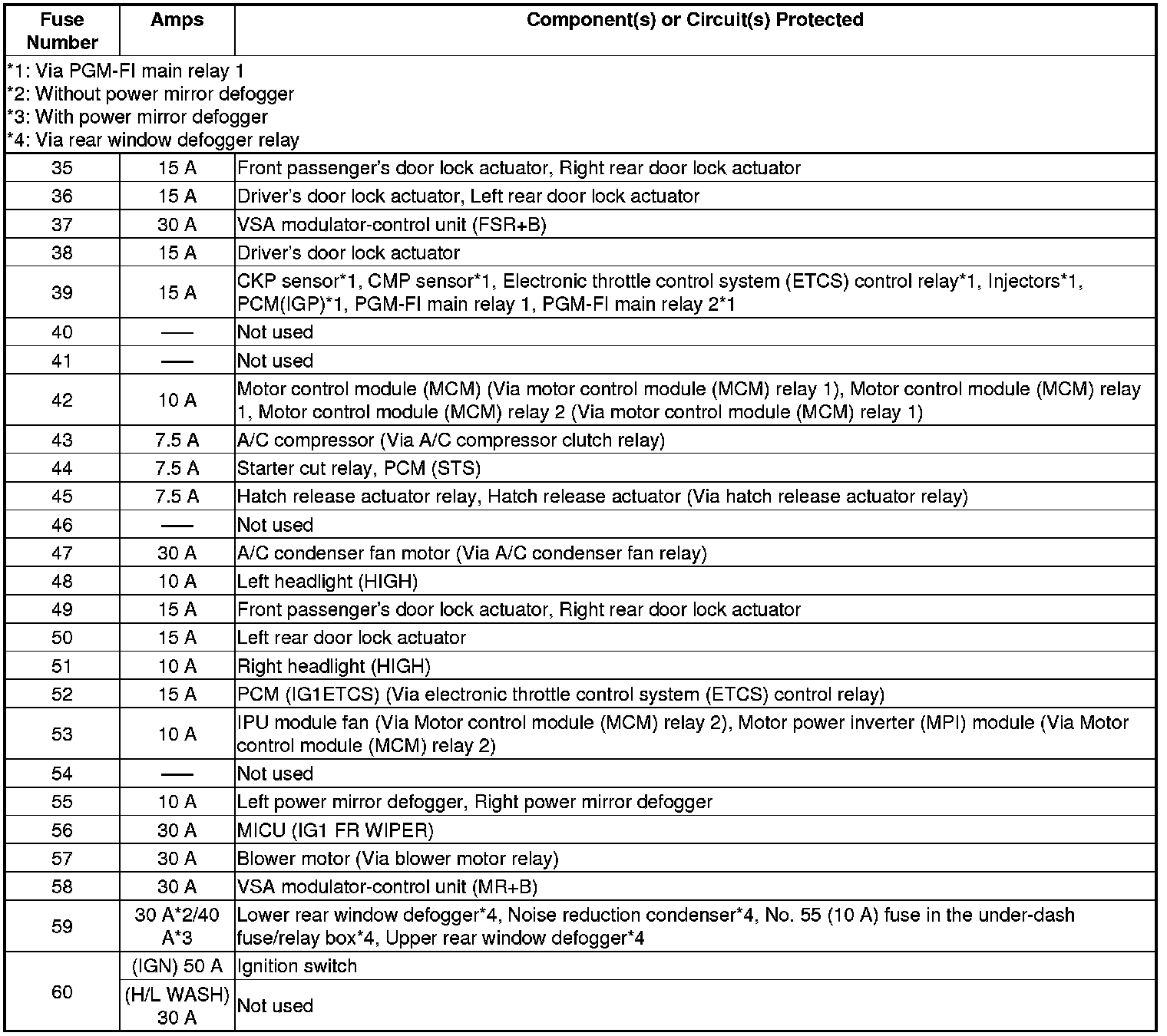

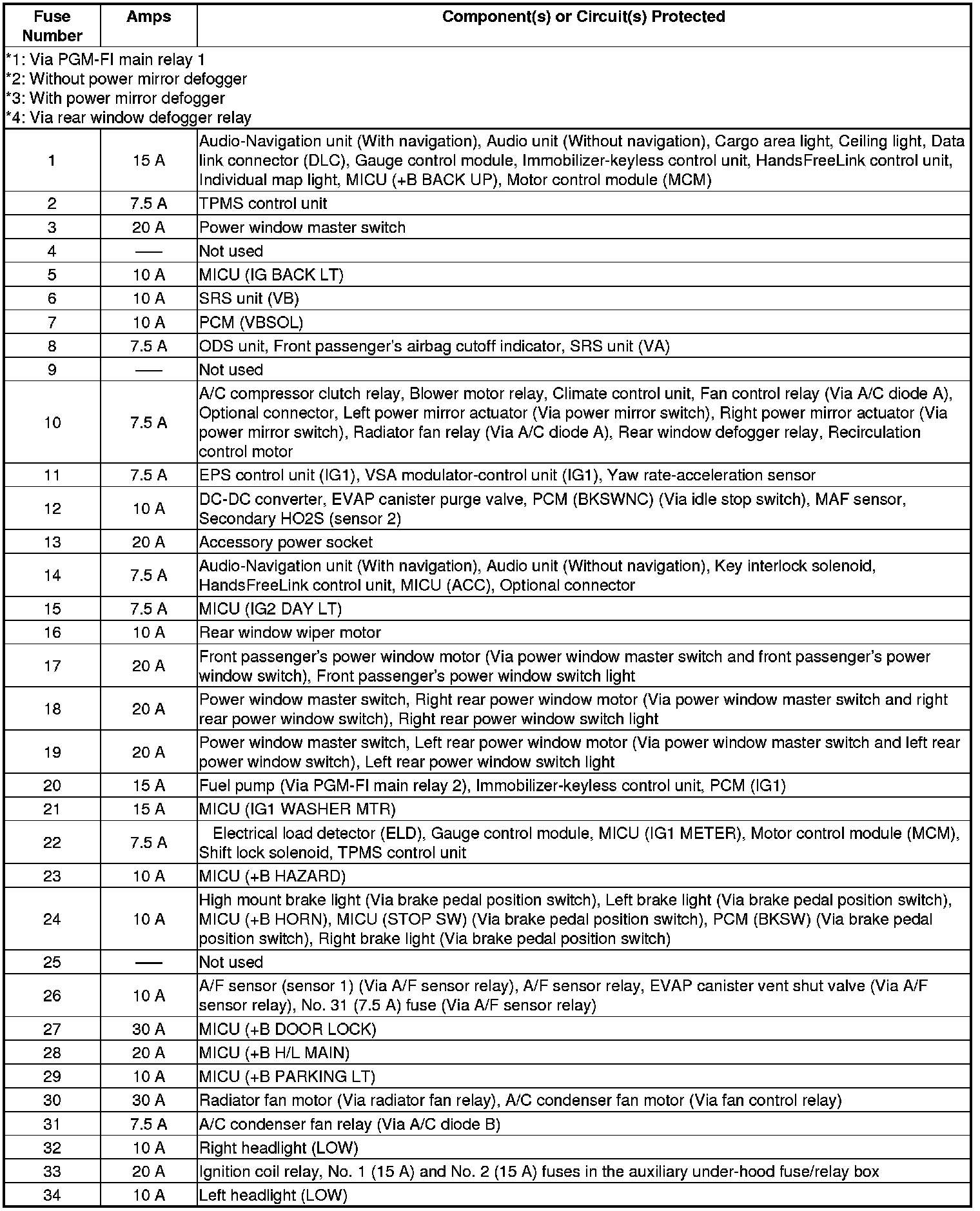

Fuse to Components Index

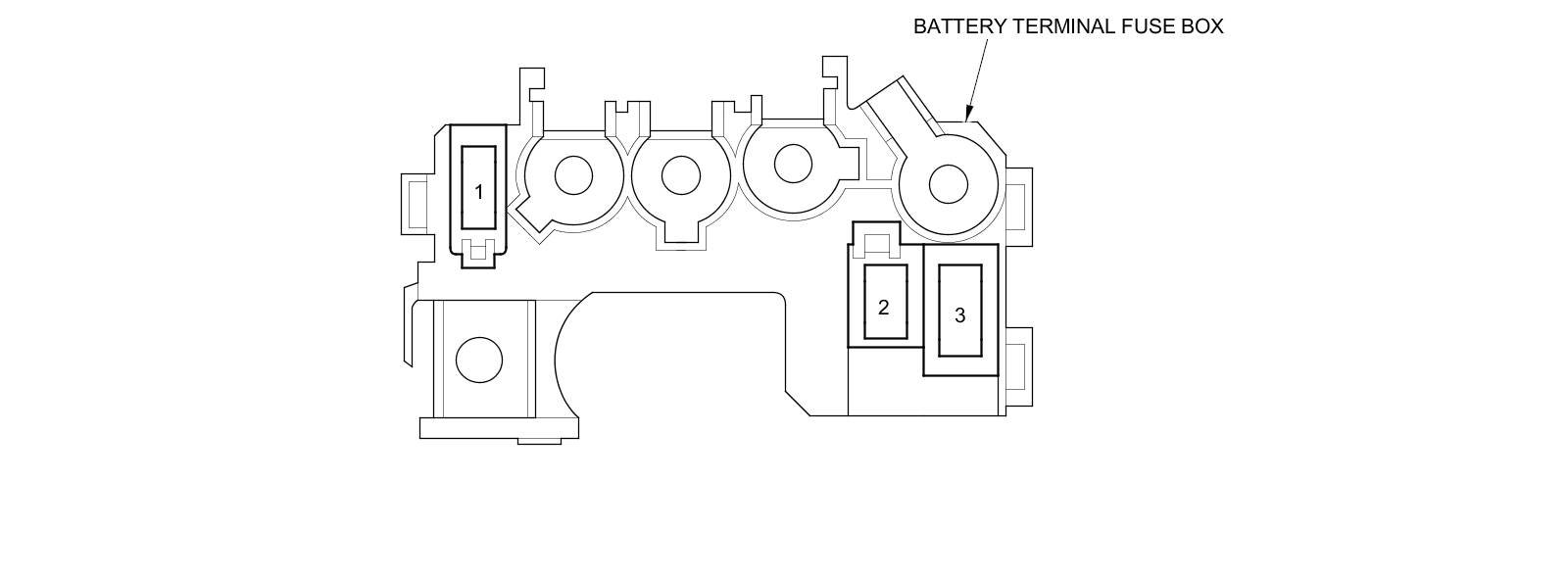

Battery Terminal Fuse Box

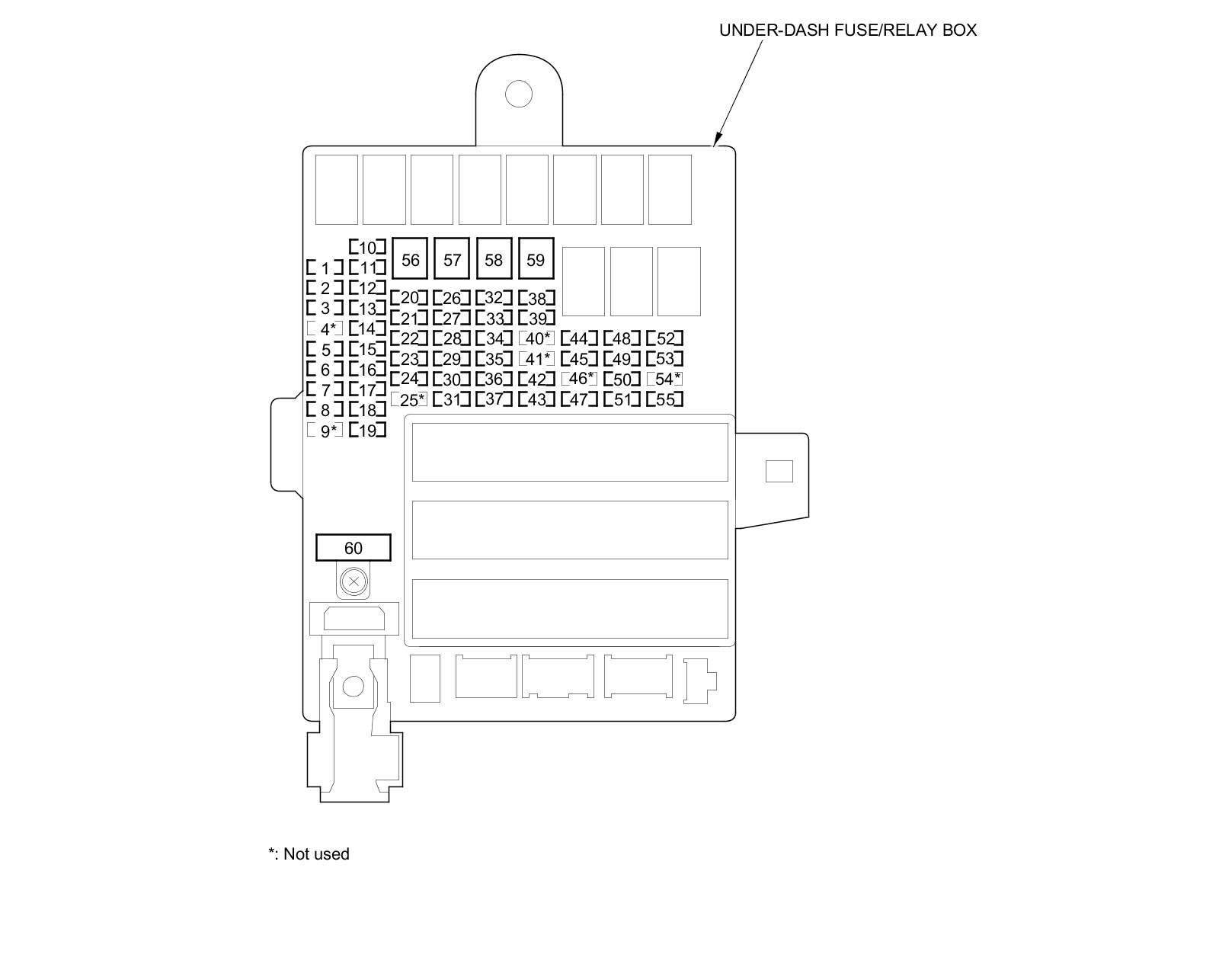

Under-dash fuse/relay box

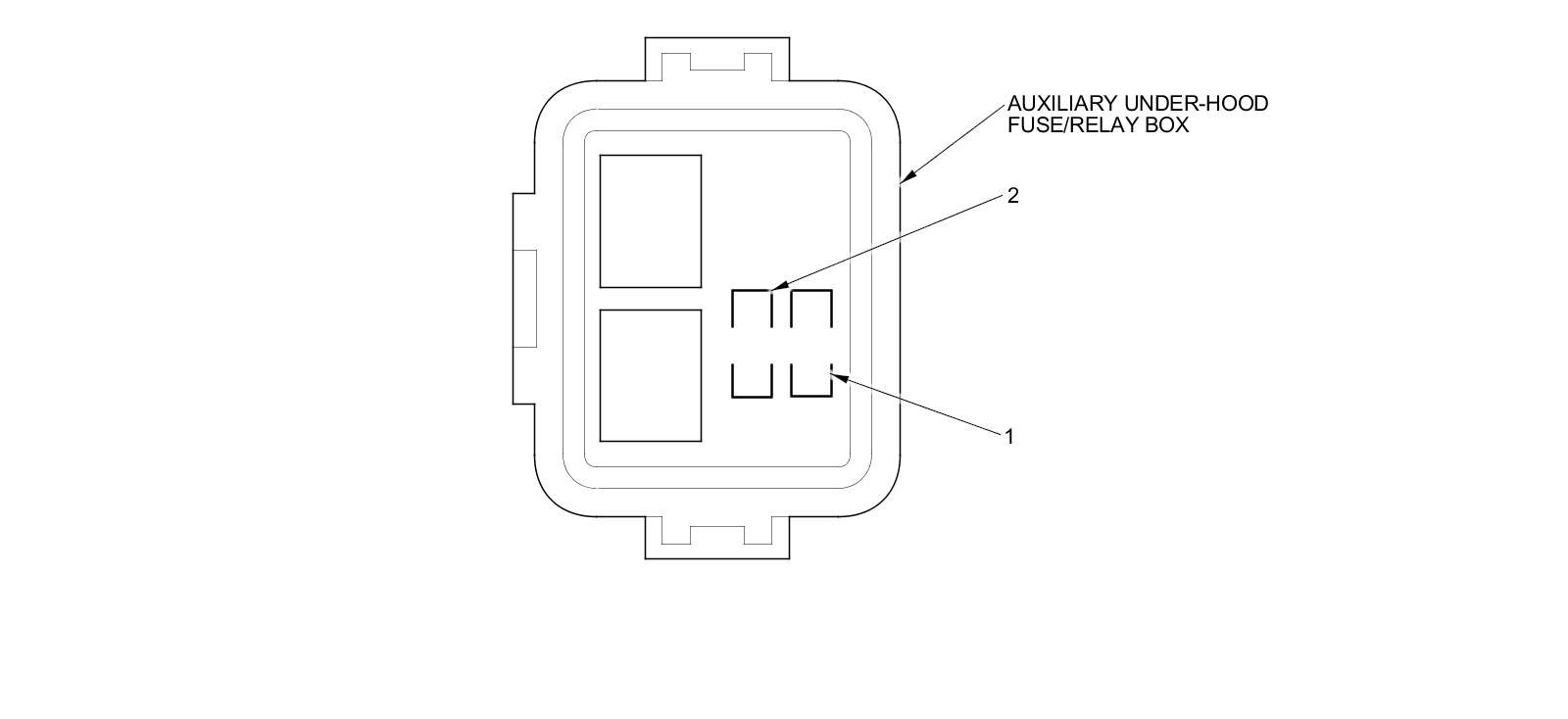

Auxiliary Under-hood Fuse/Relay Box
