Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

1. Raise the vehicle on a lift.

2. Disconnect the hoses from the EVAP canister filter. Service and Repair

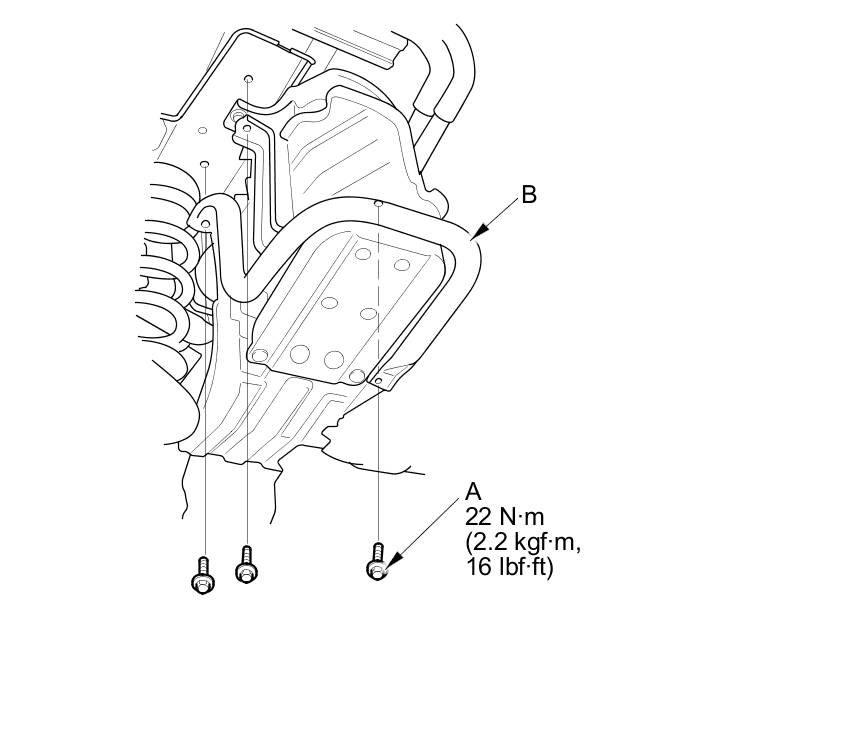

3. Remove the bolts (A), then remove the canister guard (B).

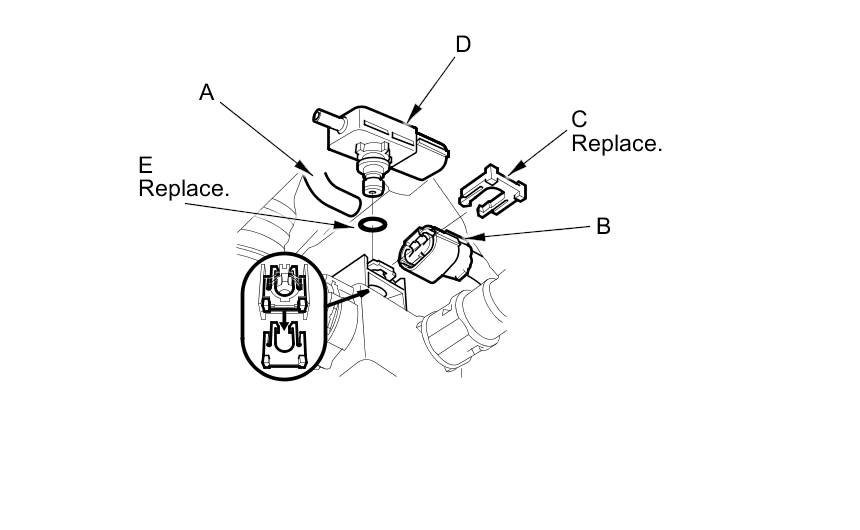

4. Disconnect the hose (A) and the FTP sensor 3P connector (B).






5. Remove the retainer (C), then remove the FTP sensor (D).

6. Install the parts in the reverse order of removal with a new O-ring (E) and a new retainer.
