Instrument Panel Control Module: Service and Repair




Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO data and the maintenance minder data from the gauge control module with the HDS Programming and Relearning.

1. Remove the instrument panel Instrument Panel Removal / Installation.

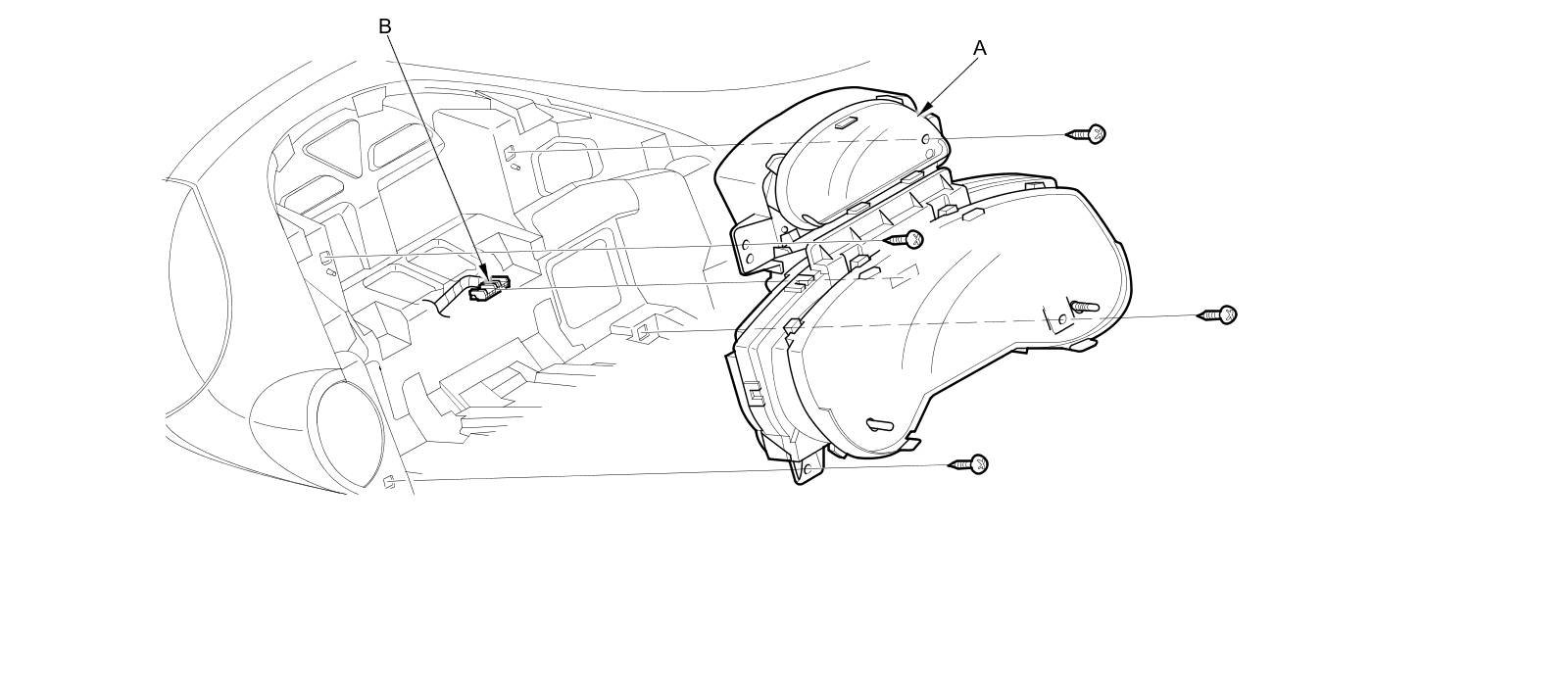

2. Remove the four screws from the gauge control module (A).





3. Disconnect the 32P connector (B) from the gauge control module.

4. Install the gauge control module in the reverse order of removal.

5. Write the ODO data and transfer the maintenance minder data to the new gauge control module Programming and Relearning.
