Connecting Rod Nut/Bolt Torque




Torque the connecting rod bolts to 9.8 N-m (1.0 kgf-m, 7.2 lbf-ft).

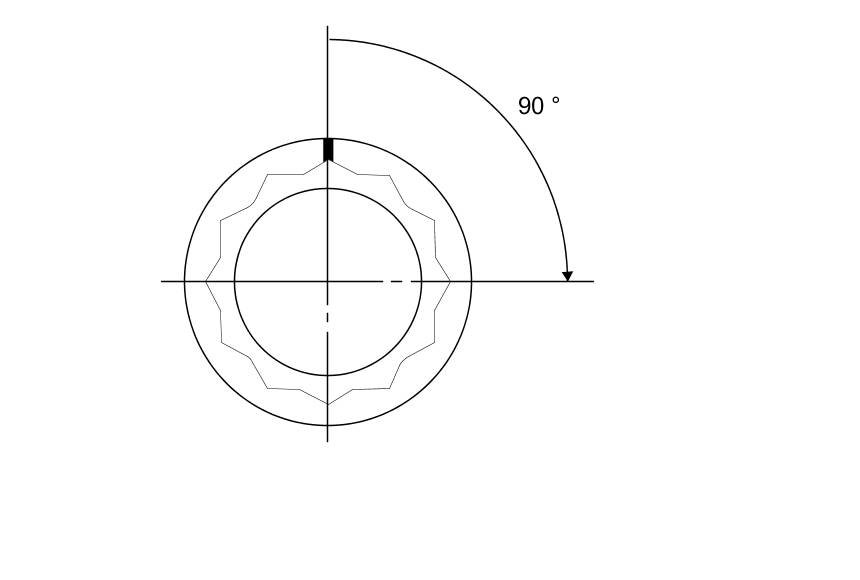

Tighten the connecting rod bolts an additional 90 °
