Torque Specifications




Torque Specifications

Torque Specifications

NOTE
*Refer to the S/M section for the precautions and complete procedures.
*Refer to the S/M section for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the S/M procedures closely for torque, sequence, and special steps.

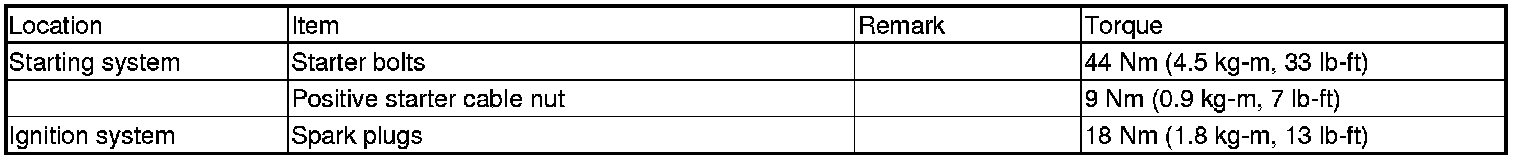

Engine Electrical

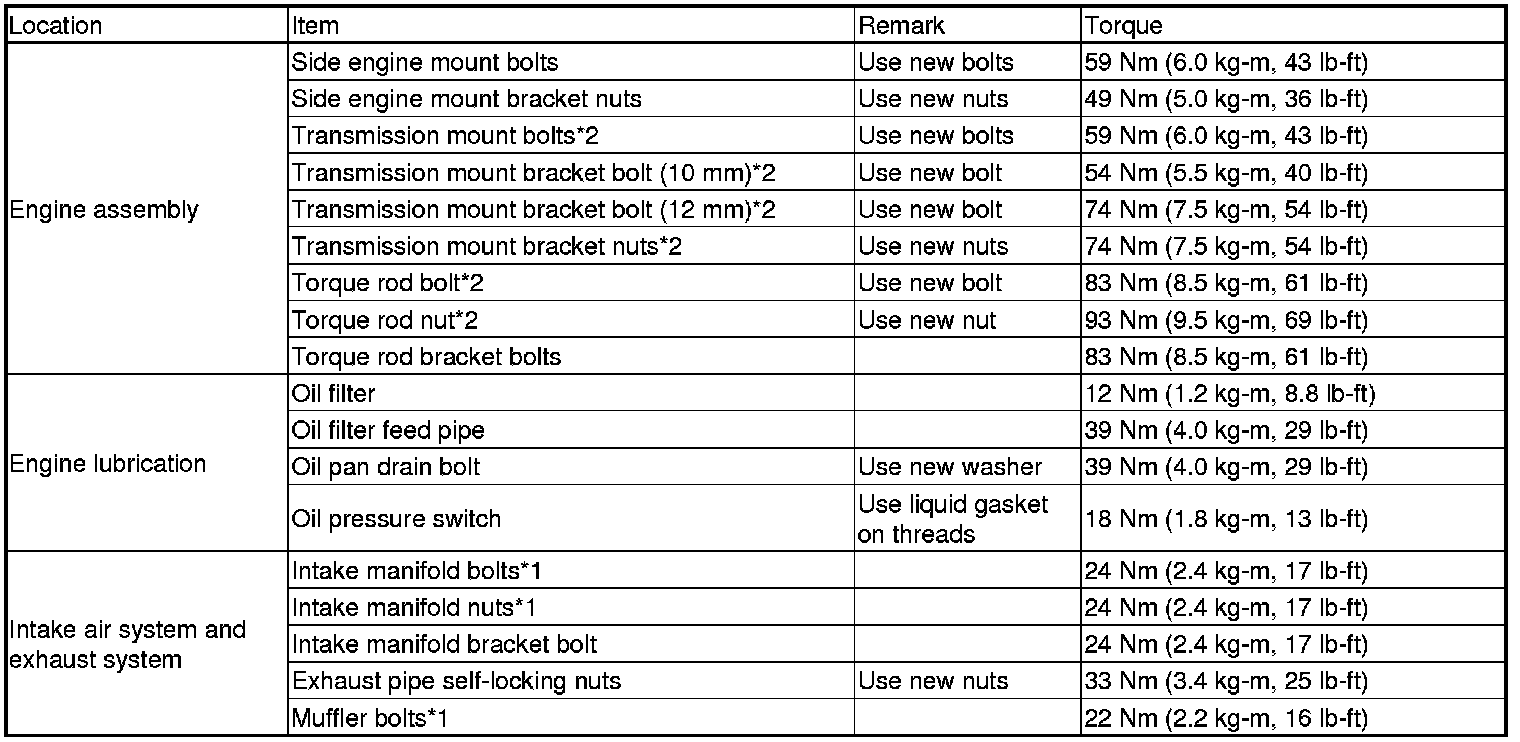

Engine Mechanical

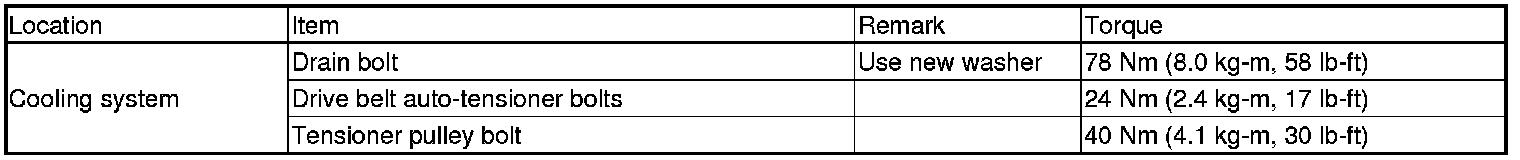

Engine Cooling

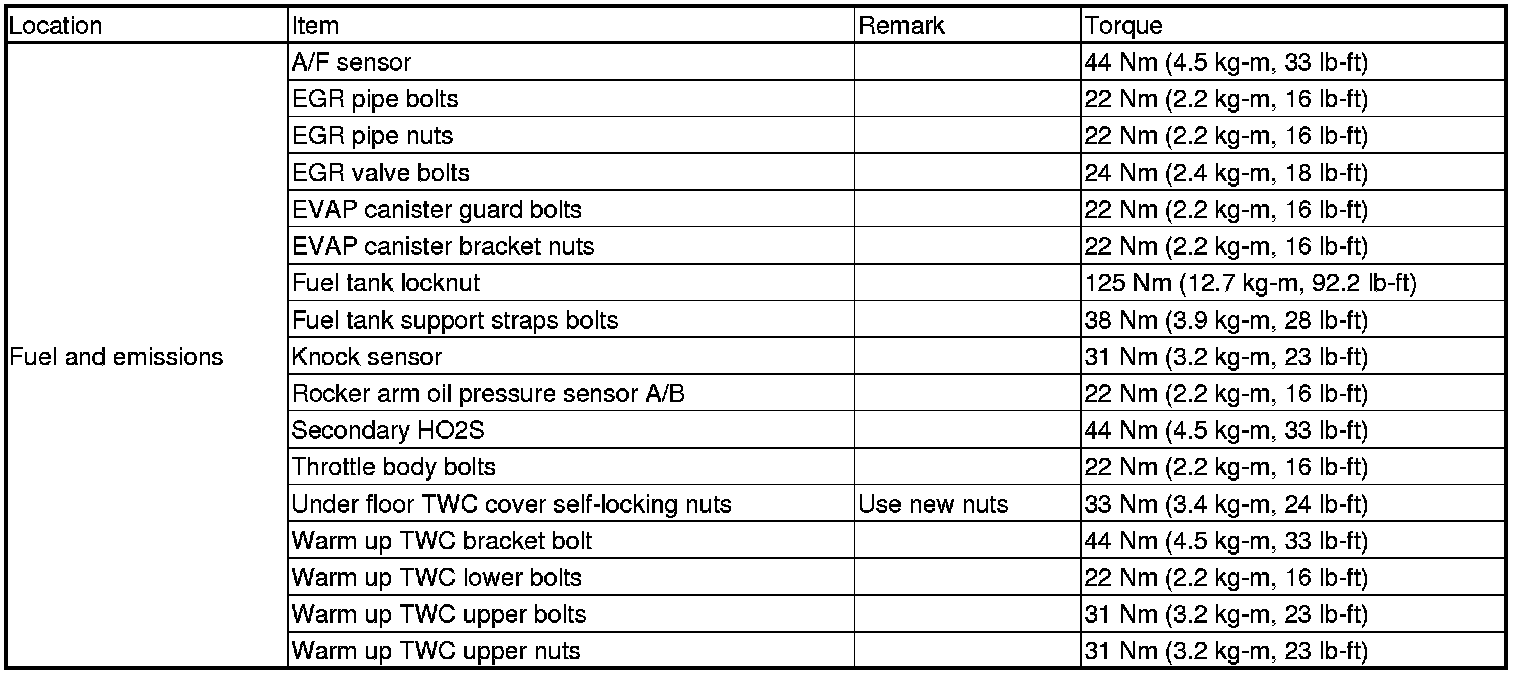

Fuel Emissions






Torque Specifications

NOTE
*Refer to the S/M section for the precautions and complete procedures.
*Refer to the S/M section for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the S/M procedures closely for torque, sequence, and special steps.

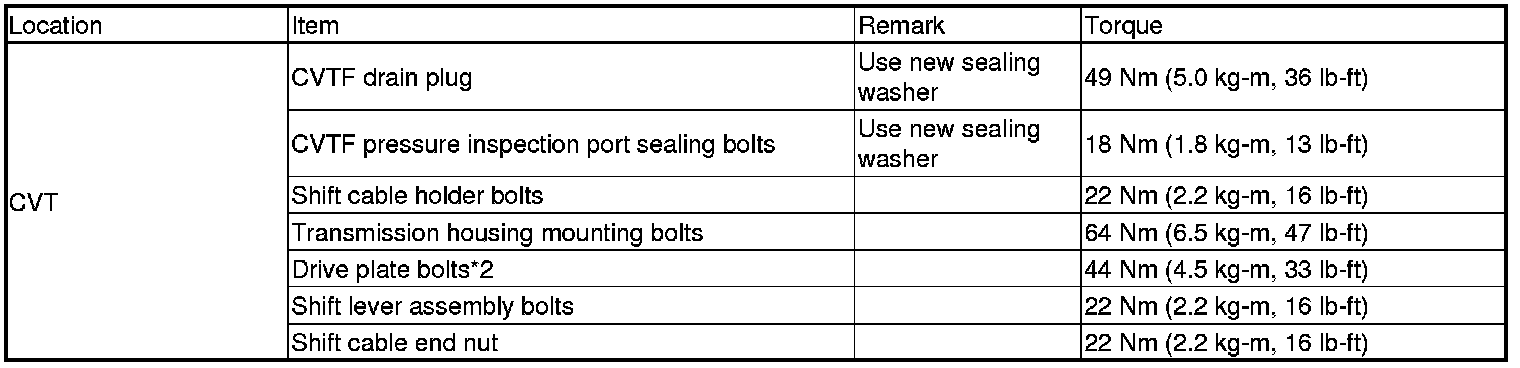

CVT

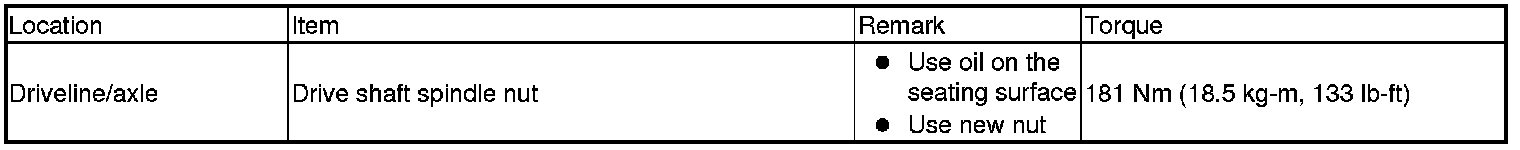

Driveline/Axle





Steering

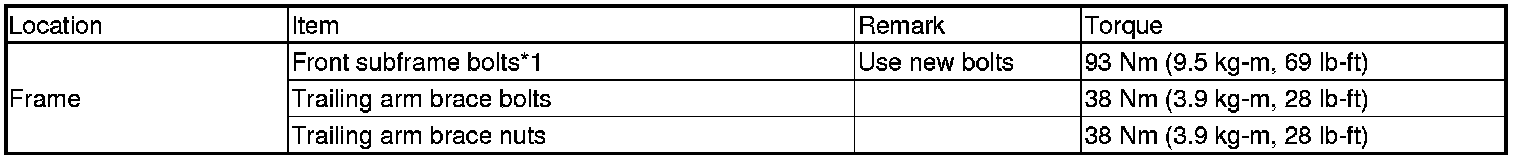

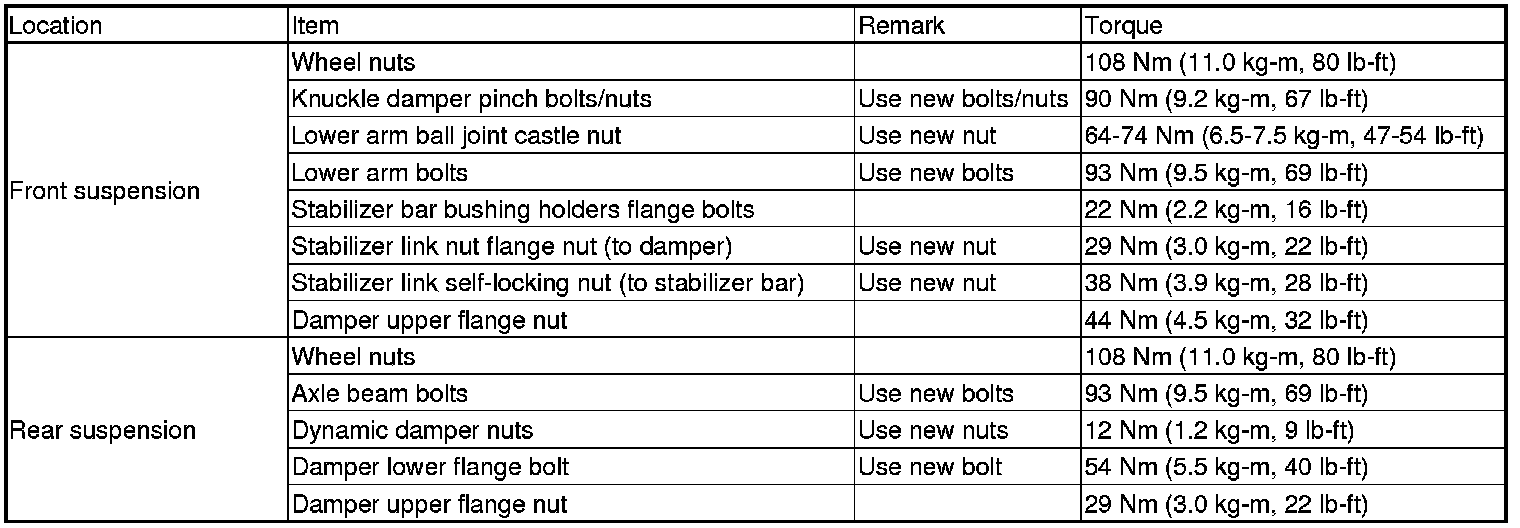

Suspension

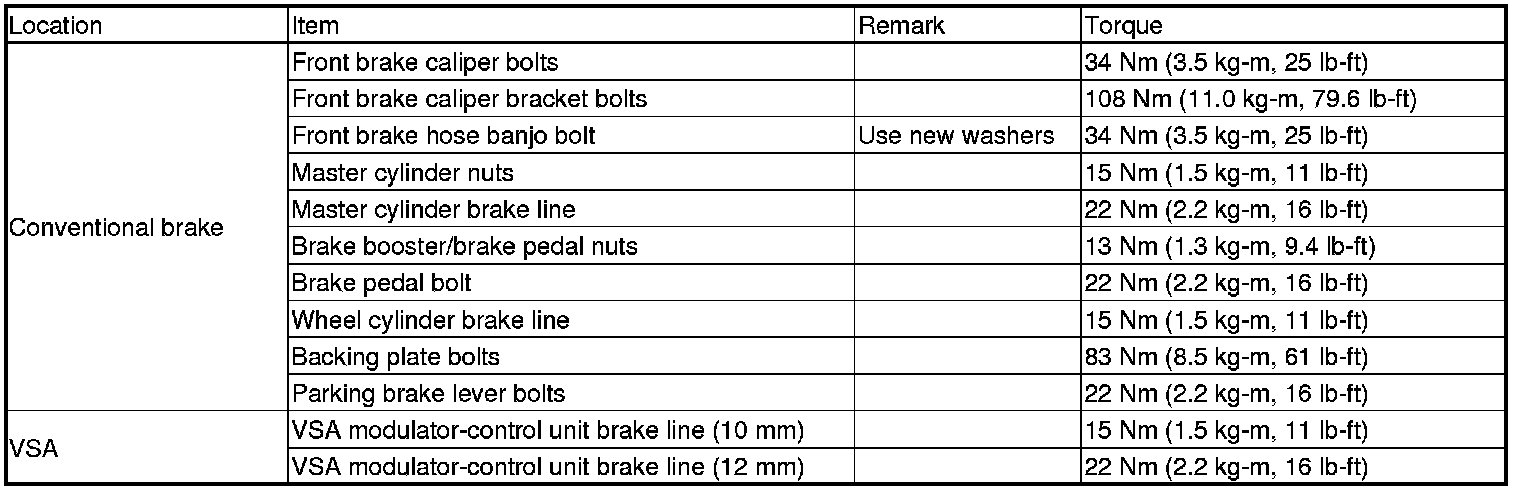

Brakes





Torque Specifications

NOTE
*Refer to the S/M section for the precautions and complete procedures.
*Refer to the S/M section for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the S/M procedures closely for torque, sequence, and special steps.

Body

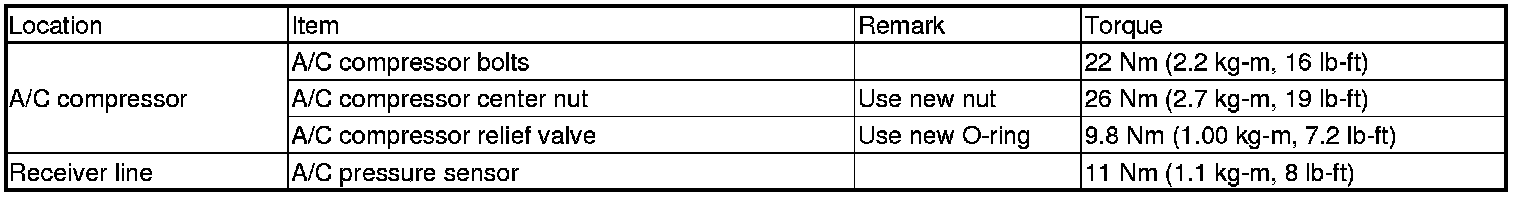

Heating, Ventilation, and Air Conditioning

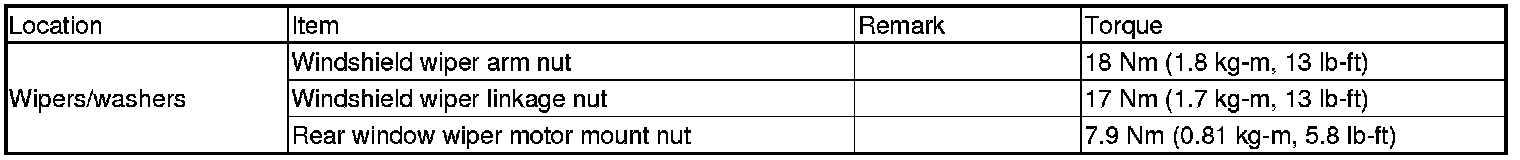

Body Electrical
