Transmission Temperature Sensor/Switch: Testing and Inspection

CVTF Temperature Sensor Test

1. Remove the air cleaner assembly Service and Repair.

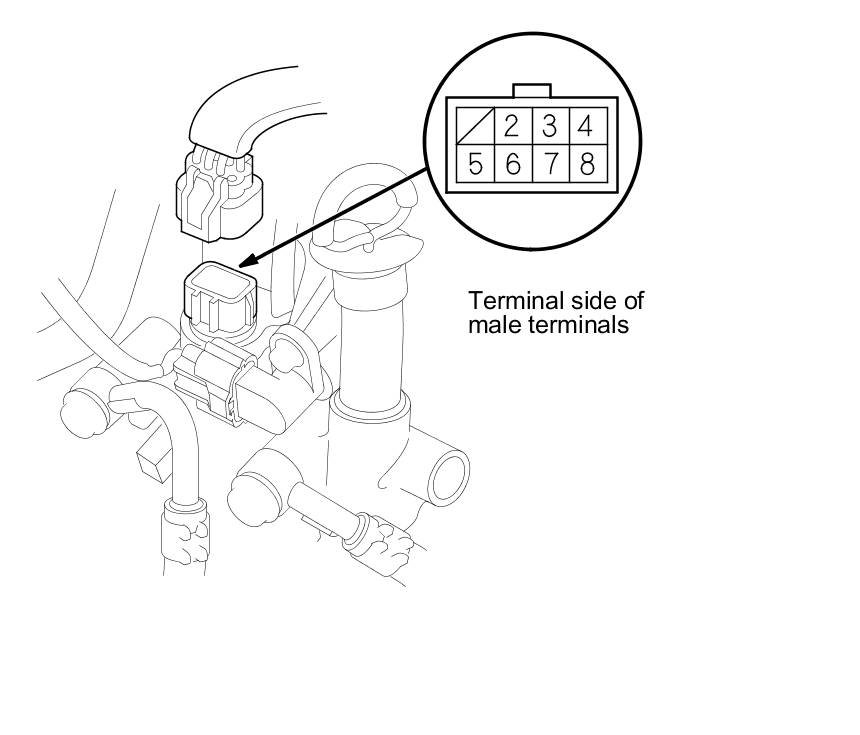

2. Disconnect the solenoid harness 8P connector.





3. Measure CVTF temperature sensor resistance between the solenoid harness 8P connector terminals No. 6 and No. 7.





4. If the resistance is out of standard, replace the CVTF temperature sensor Service and Repair.

5. Connect the connector securely.

6. Install the air cleaner assembly Service and Repair.
