Wheel Speed Sensor Replacement: Rear

  1. Turn the ignition switch to LOCK (0).
  2. Remove the clip (A), then disconnect the wheel speed sensor connector (B).

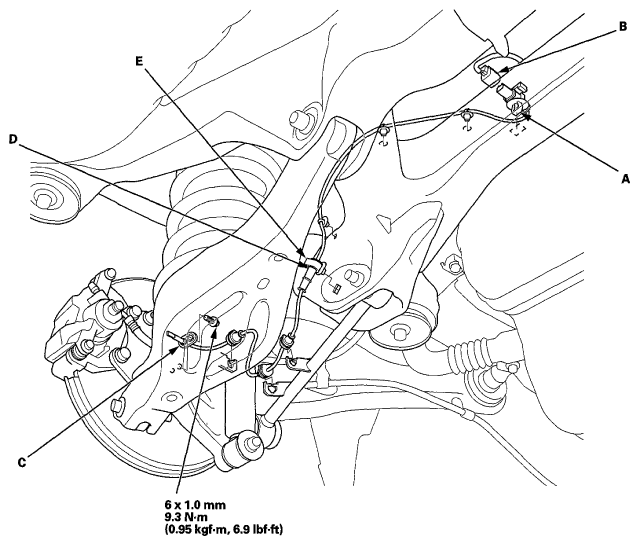

    Fig 1: Wheel Speed Sensor, Connector, Grommet, Clamp And Mounting Bolt Torque Specification (Rear)
    G06969842Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the wire guide rubbers and the clips.
  4. Remove the bolt and the wheel speed sensor (C).
  5. Remove the wire guide rubber (D) from the clamp (E), then pull out the wire harness from between the subframe and the body.
  6. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
