Fuel Vapor Hose Replacement
- Raise the vehicle on a lift.

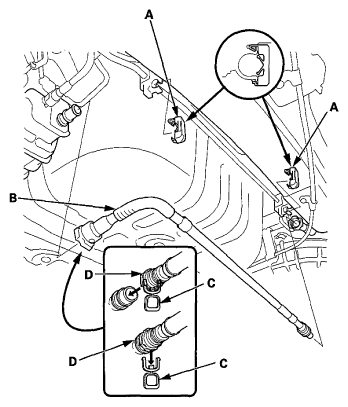

- Remove the clamps (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the fuel vapor hose (B).
- Install the parts in the reverse order of removal.
NOTE:
The new fuel vapor hose has a ring pull (C) at the connector (D). When you connect the connector and confirm that the connection is secure, remove the ring pull by pulling it down.
