A/T Differential: Disassembly/Reassembly

NOTE: Tighten the bolts to the specified torque in a crisscross pattern in at least two steps.

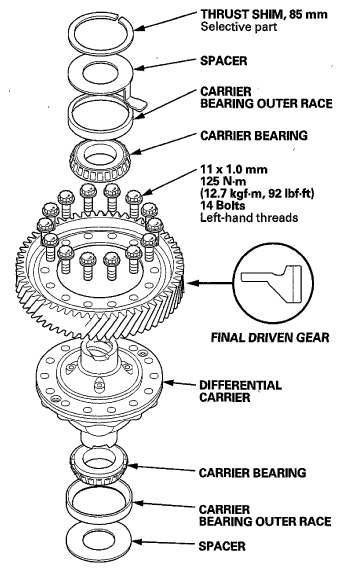

Fig 1: Exploded View Of A/T Differential With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
