Power Mirror Switch: Service and Repair

Power Mirror Switch Test/Replacement

1. Remove the power window master switch panel Power Window Master Switch Replacement.

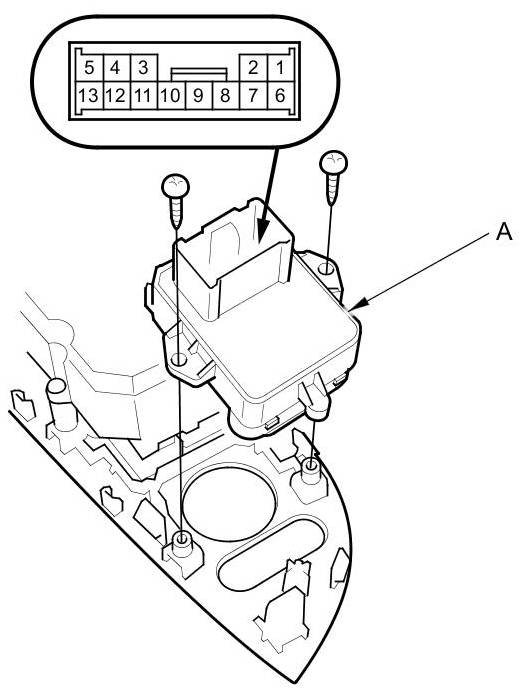

2. Disconnect the 13P connector from the power mirror switch (A).

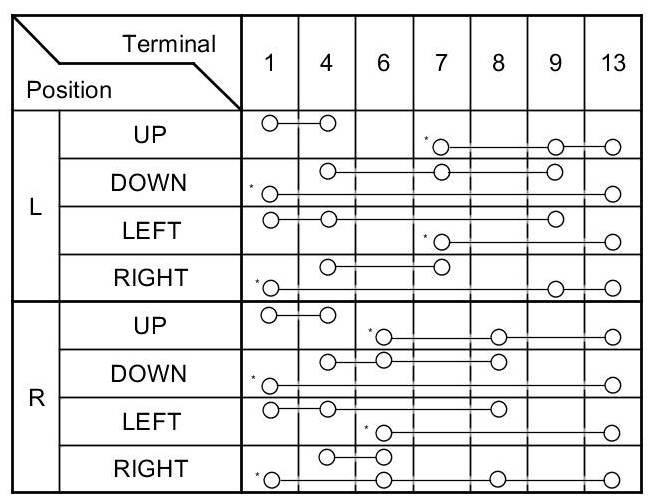

3. Check for continuity between the terminals in each switch position according to the table.





*: There is continuity without operating a switch

4. If the continuity is not as specified, remove the screws and replace the power mirror switch.

5. Install the switch in the reverse order of removal.
