Cruise Control Switch: Service and Repair

Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations Locations and precautions and procedures Service Precautions before doing repairs or service.

1. Remove the steering wheel Removal and Replacement and disassemble the steering wheel Overhaul.

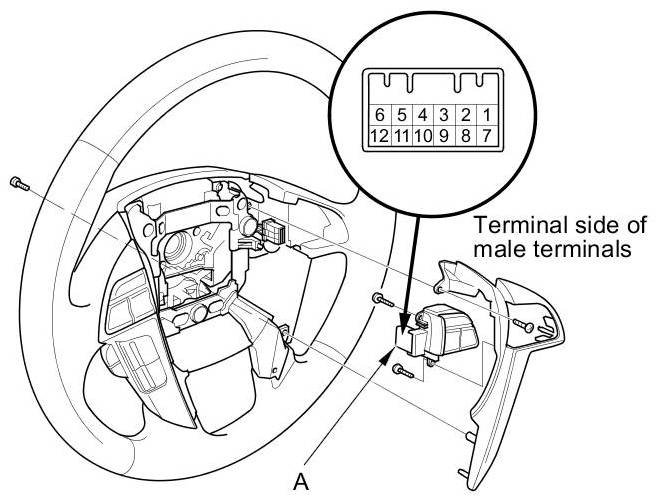

2. Remove the cruise control combination switch (A).

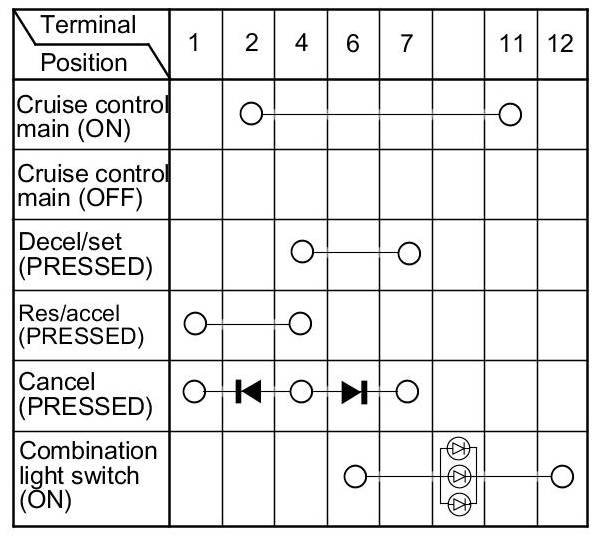

3. Check for continuity between the terminals in each cruise control combination switch position according to the table:

- If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the cruise control combination switch.





4. Install the cruise control combination switch in the reverse order of removal.
