View 382 - Audio Unit Connector View (without Navigation)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

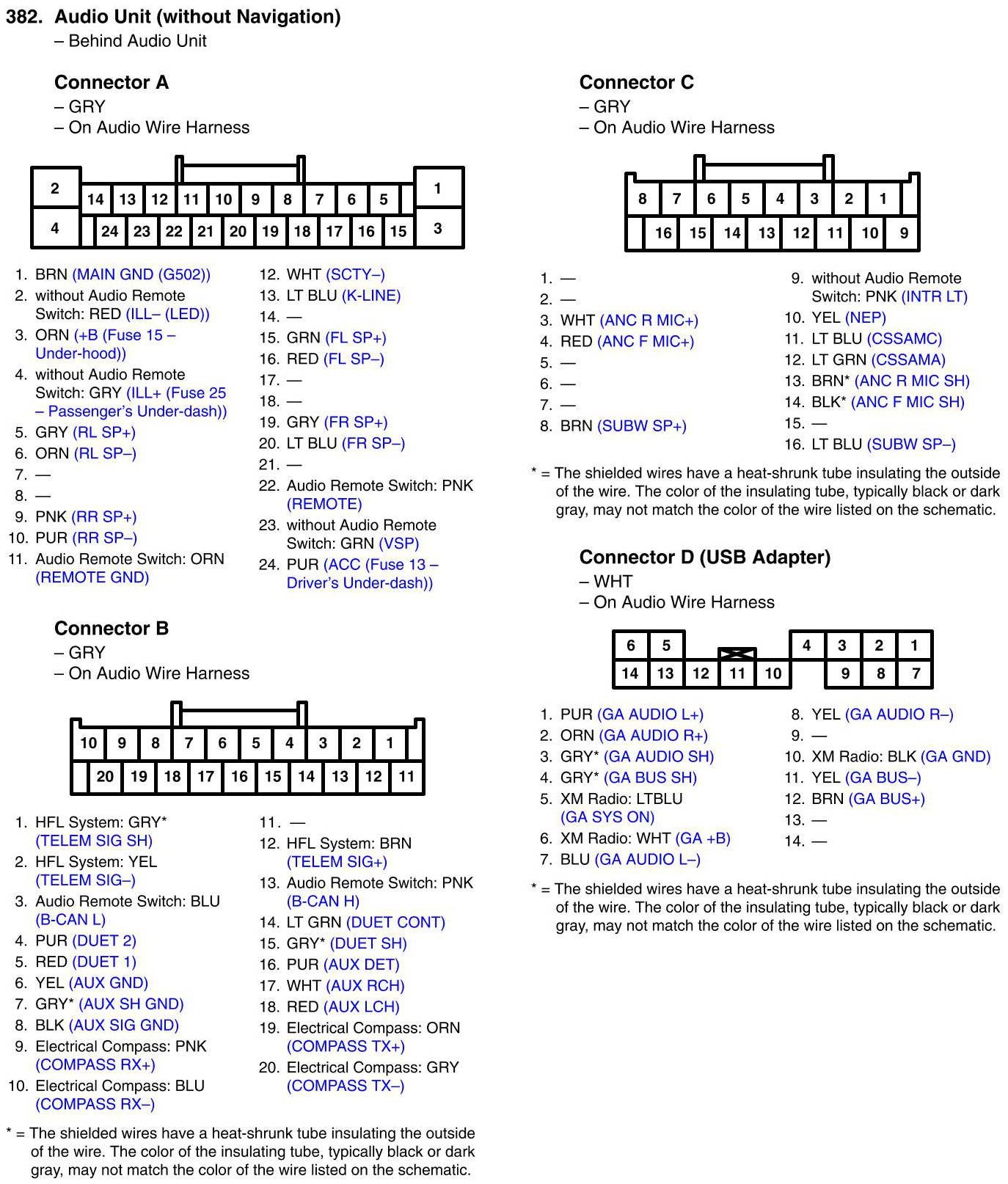

View 382 - Audio Unit Connector View (without Navigation)
