Transmission Range Switch Test (6-Speed A/T)

Transmission Range Switch Test

1. Remove the air intake scoop.

2. Do the battery removal procedure.

3. Remove the air cleaner Service and Repair.

4. Remove the intake air duct.

5. Remove the main under-hood fuse box.

6. Remove the battery base.

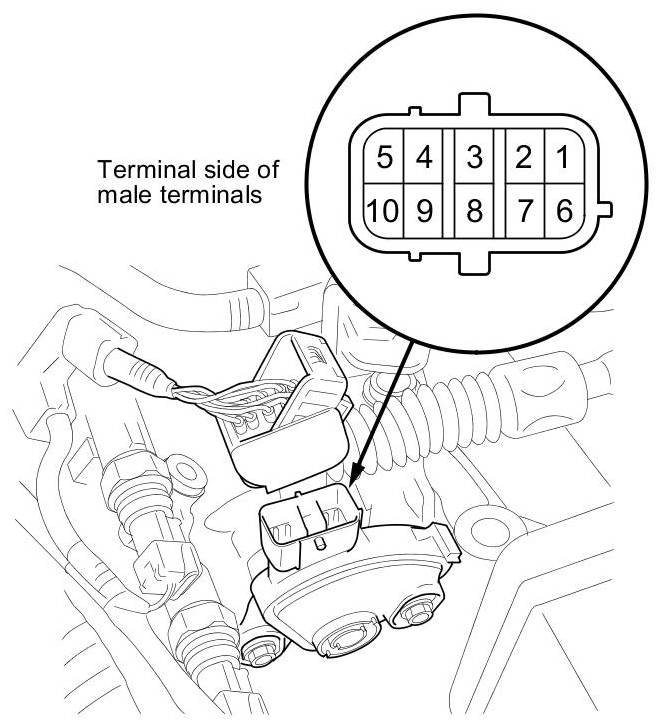

7. Disconnect the transmission range switch connector.

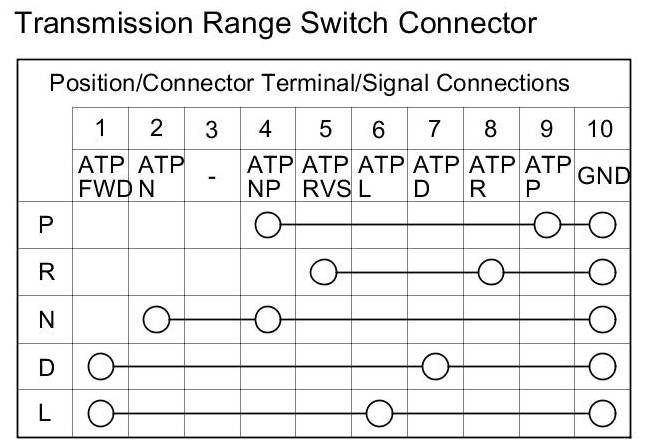

8. Check for continuity between the terminals at the transmission range switch connector. There should be continuity between the terminals in the following table for each transmission range switch position.





9. The transmission range switch test is finished if the test results are OK. If there is no continuity between any terminals, check the transmission range switch installation. If the switch is installed correctly, replace the switch Transmission Range Switch Replacement (6-Speed A/T).

10. Install the battery base.

11. Install the main under-hood fuse box.

12. Install the intake air duct.

13. Install the air cleaner Service and Repair.

14. Do the battery installation procedure.

15. Install the air intake scoop.
