EGR Tube: Service and Repair

EGR Pipe Removal/Installation

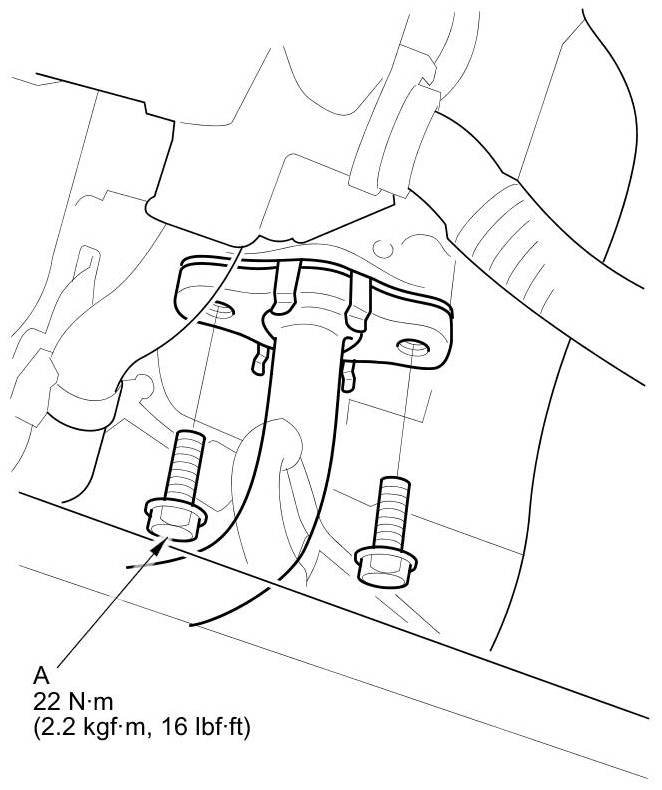

1. Remove the EGR pipe mounting bolts (A).

2. Raise the vehicle on a lift.

3. Remove the front splash shield Service and Repair.

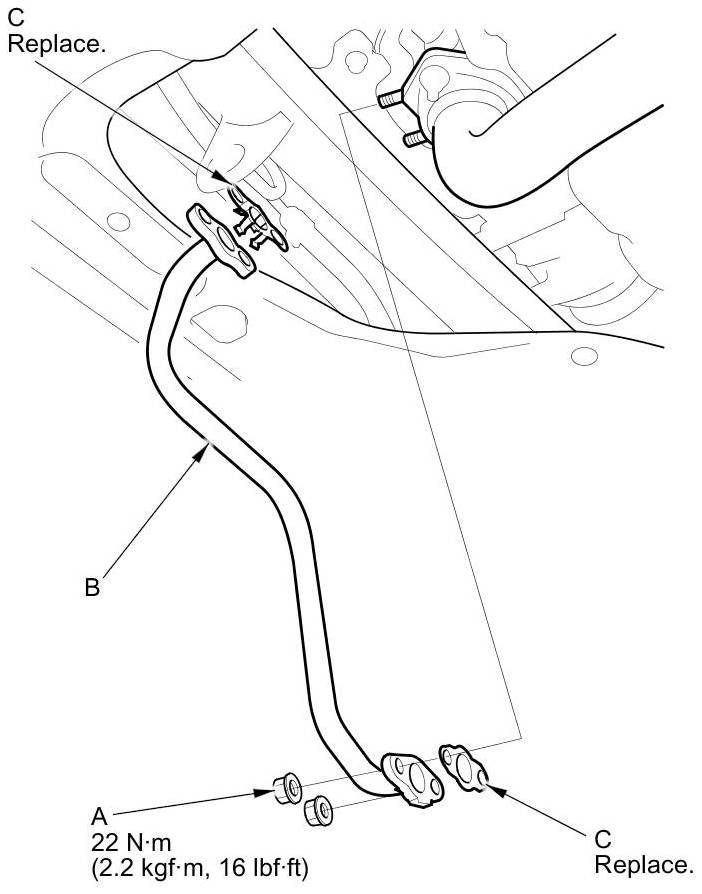

4. Remove the EGR pipe mounting nuts (A).

5. Remove the EGR pipe (B).

6. Install the parts in the reverse order of removal with new gaskets (C).
