Fuse To Components Index

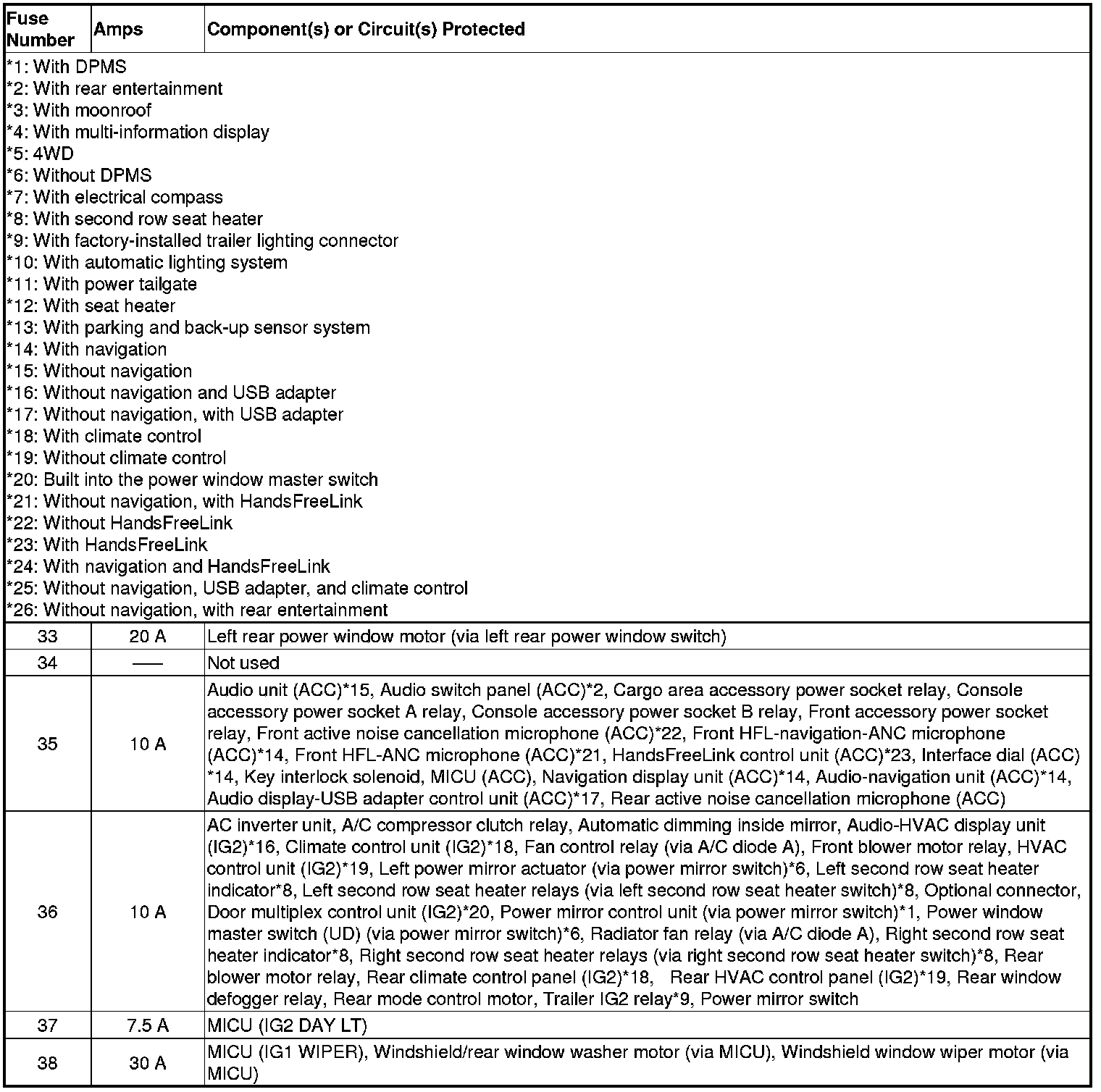

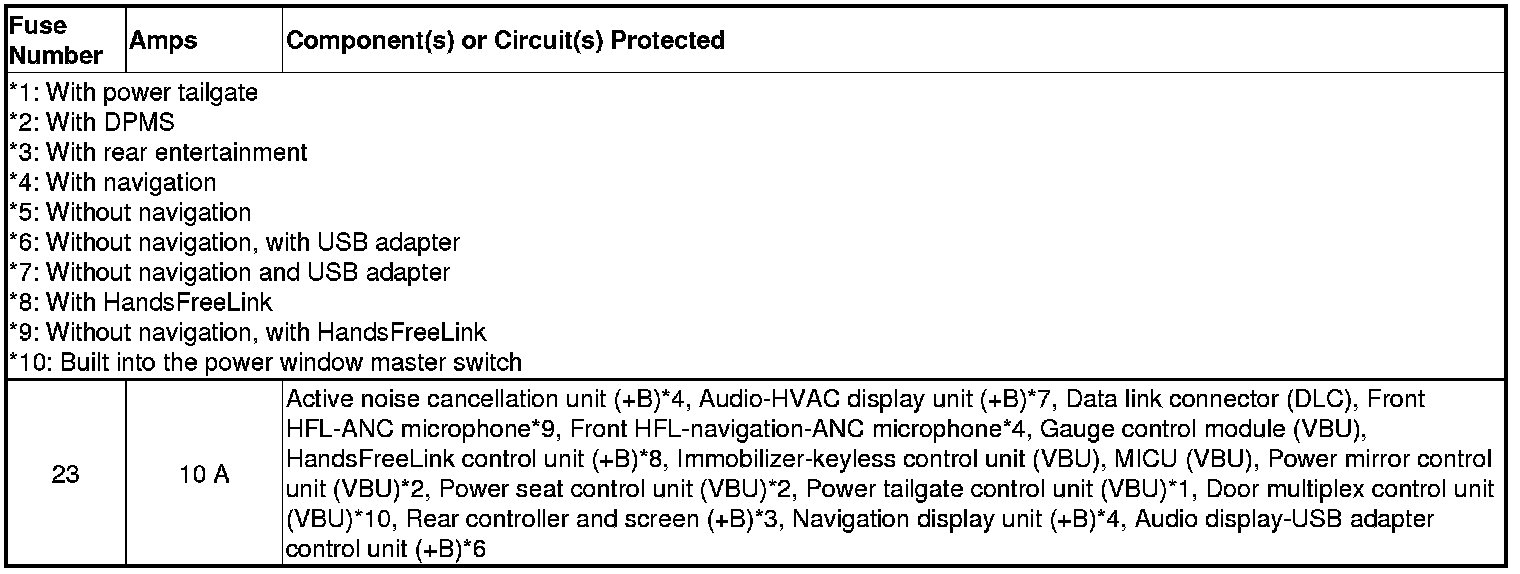

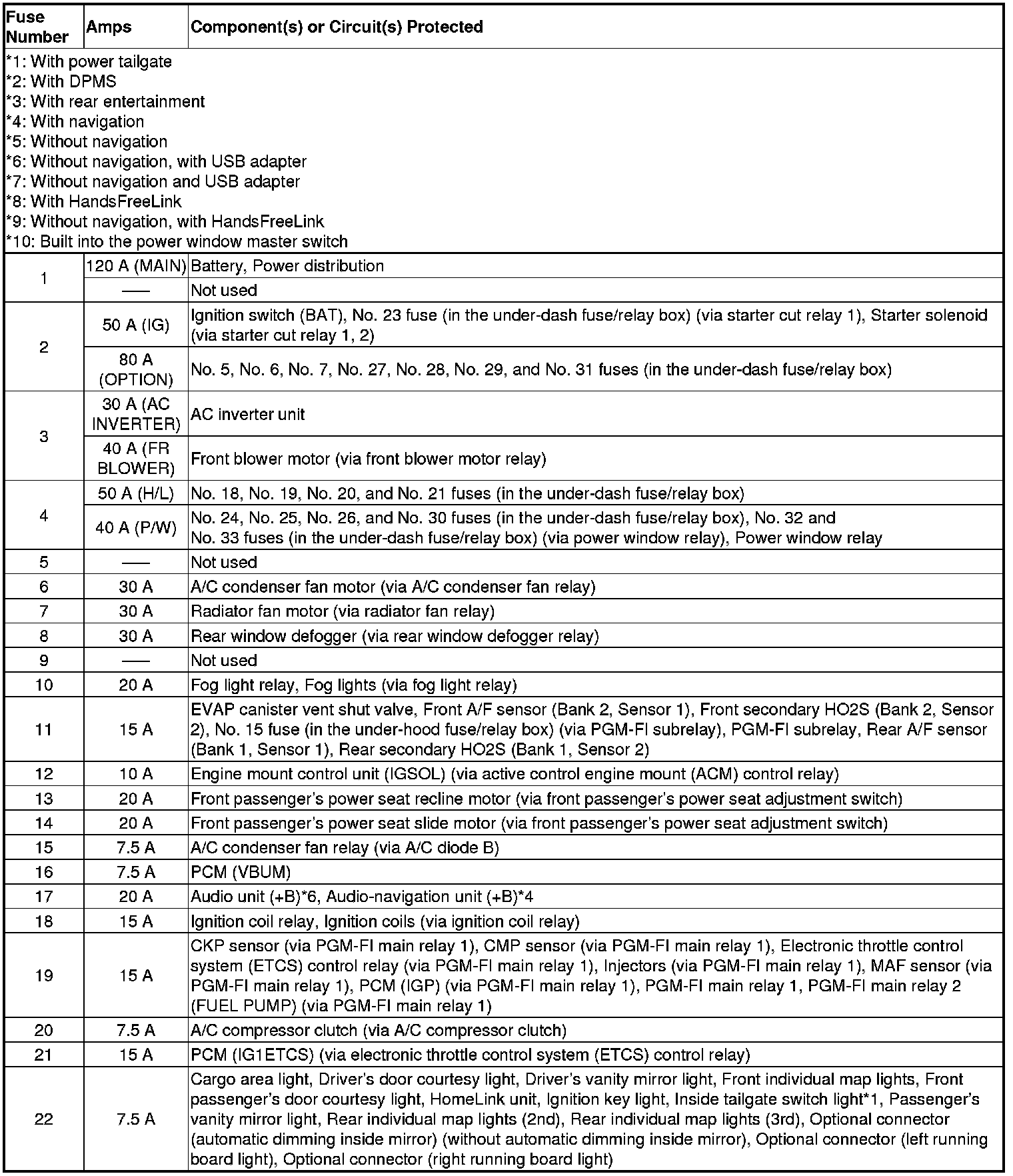

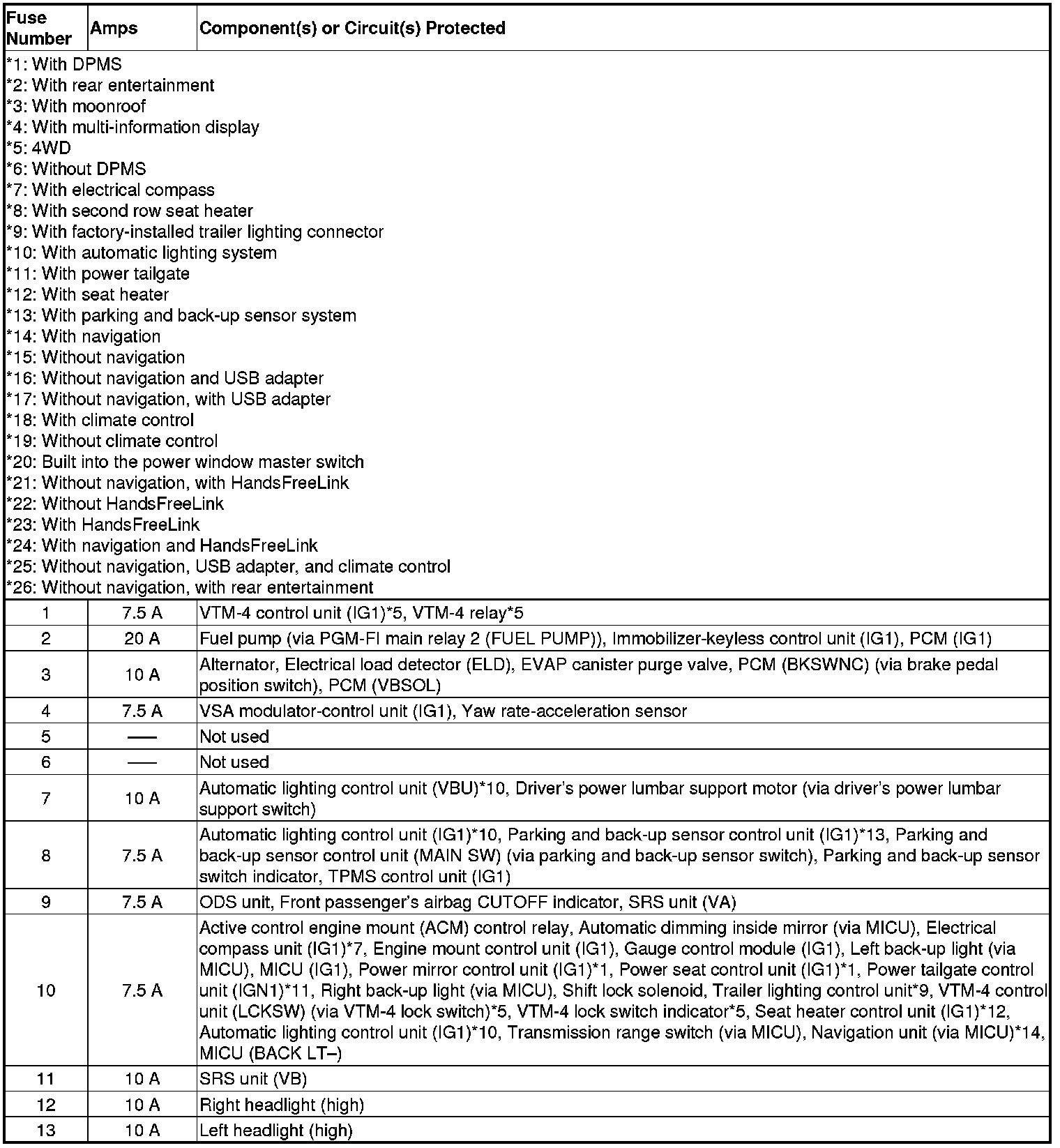

Fuse to Components Index

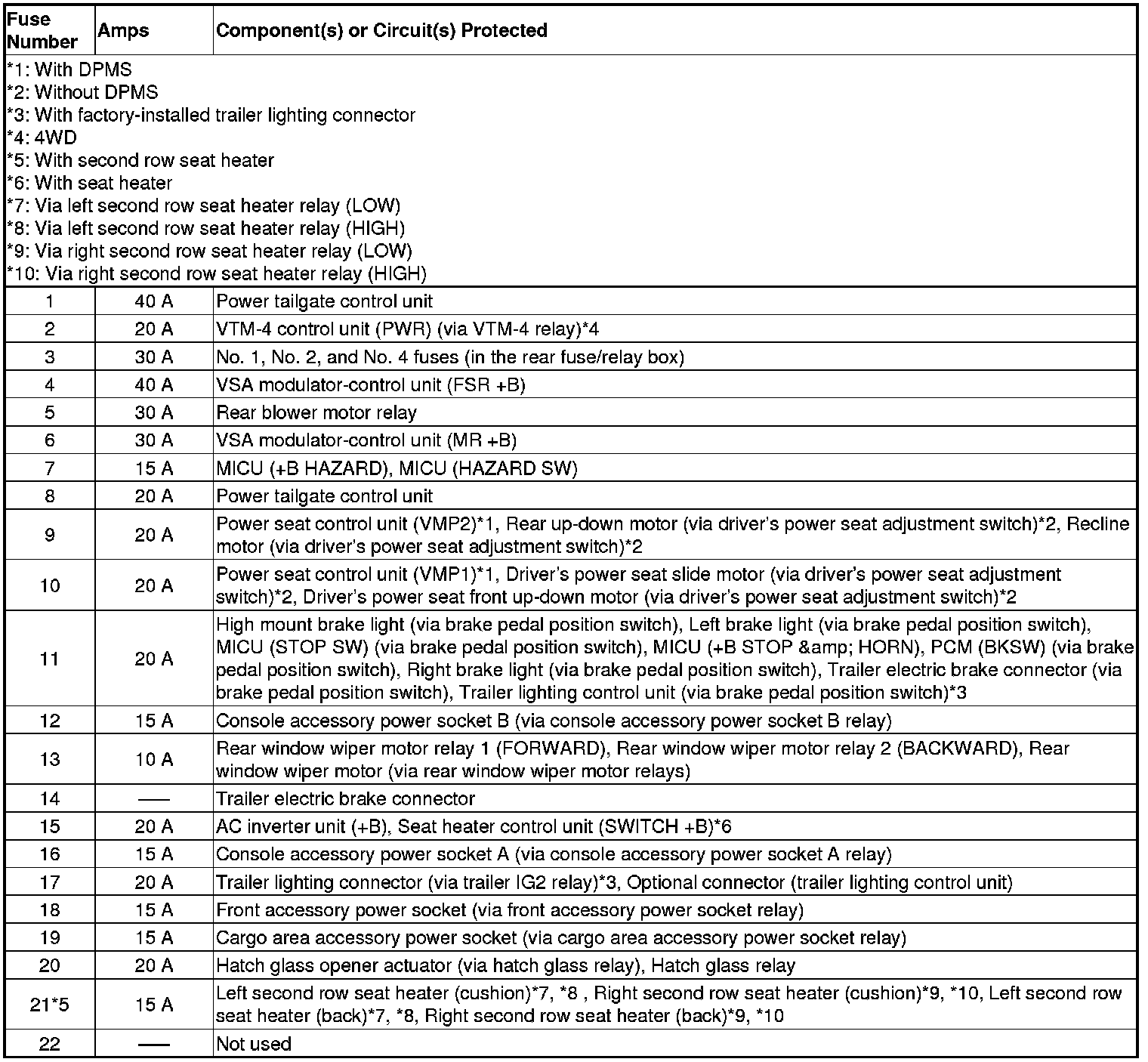

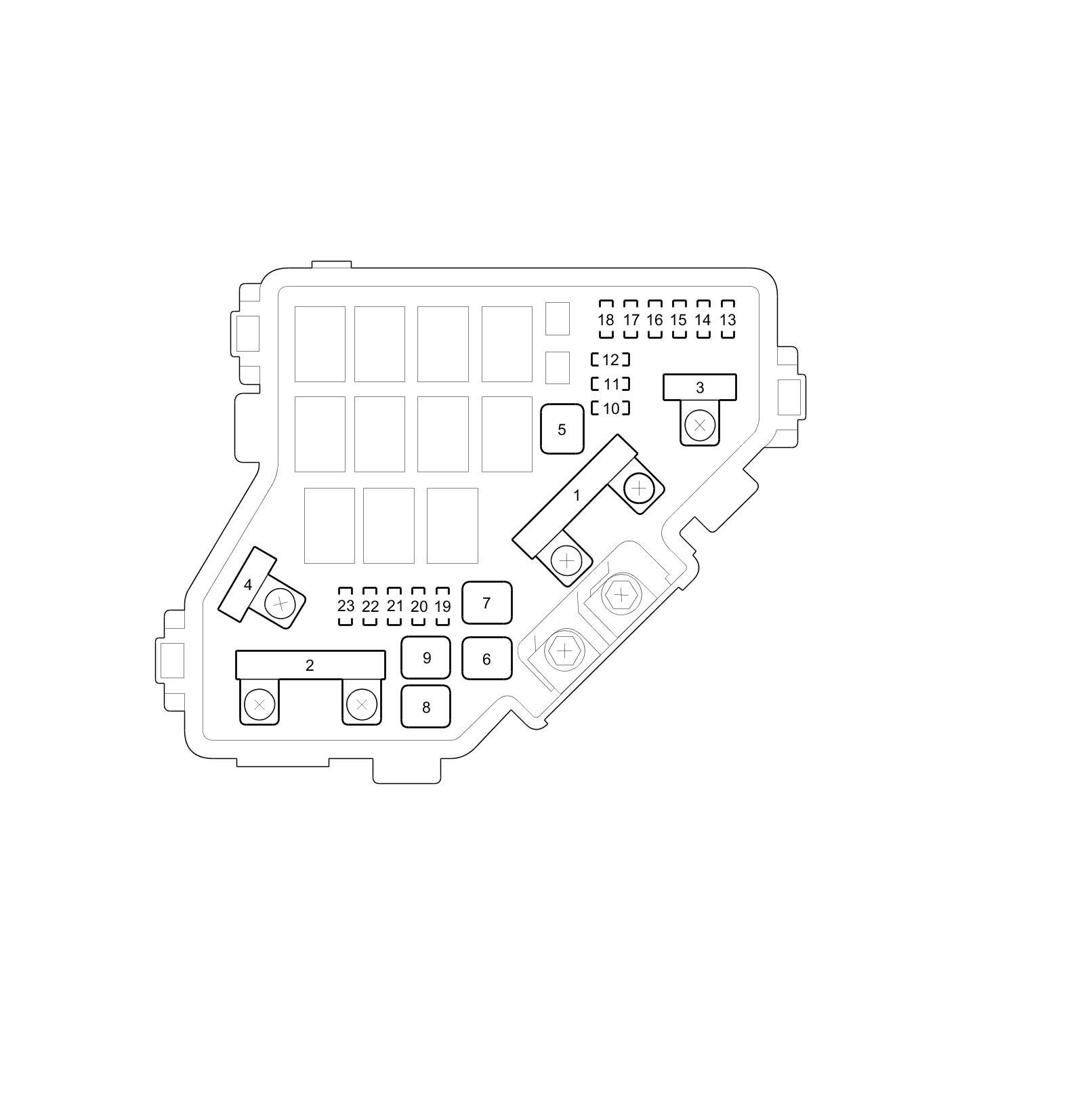

Under-hood Fuse/Relay Box

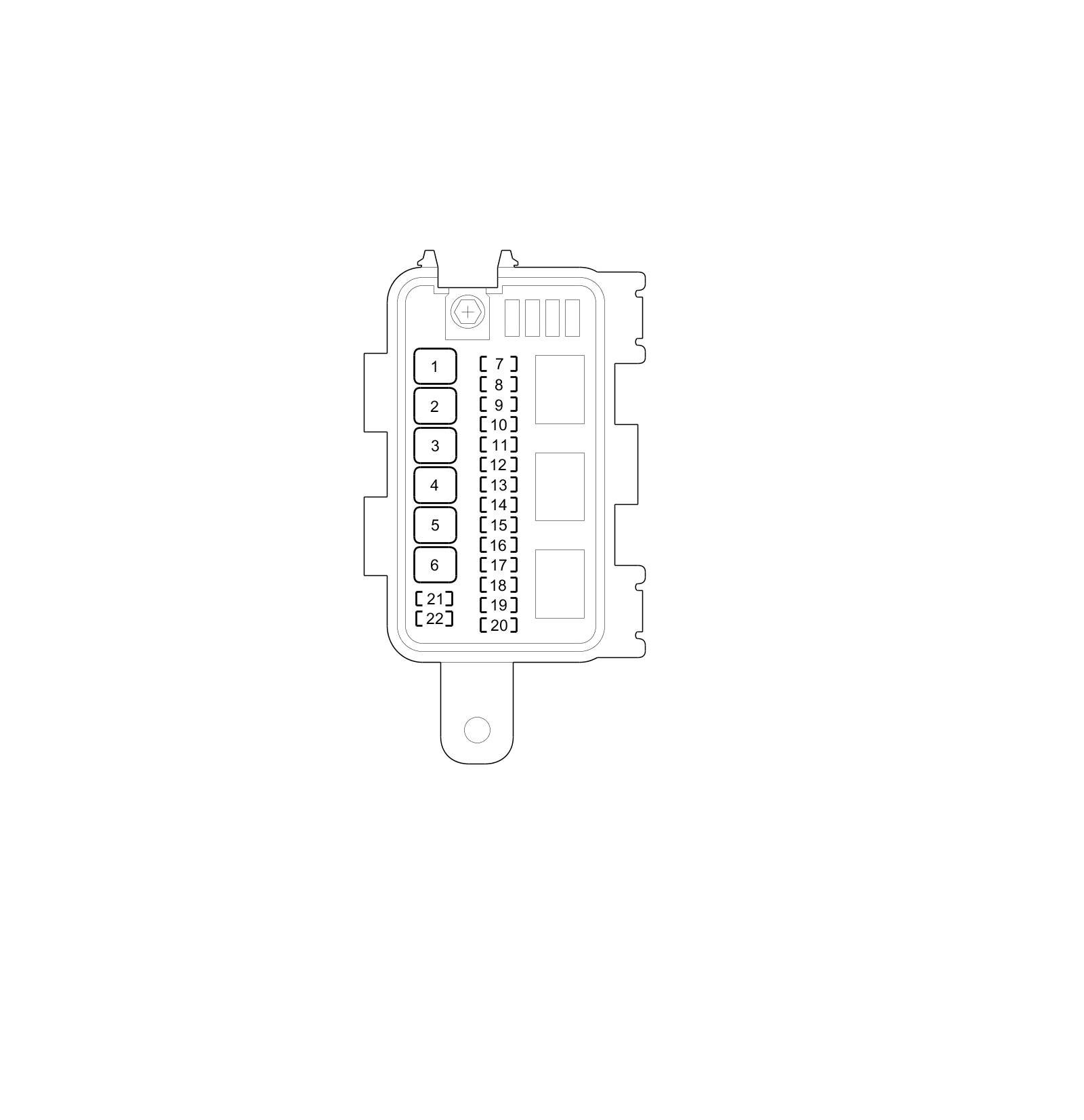

Auxiliary Under-hood fuse/Relay Box

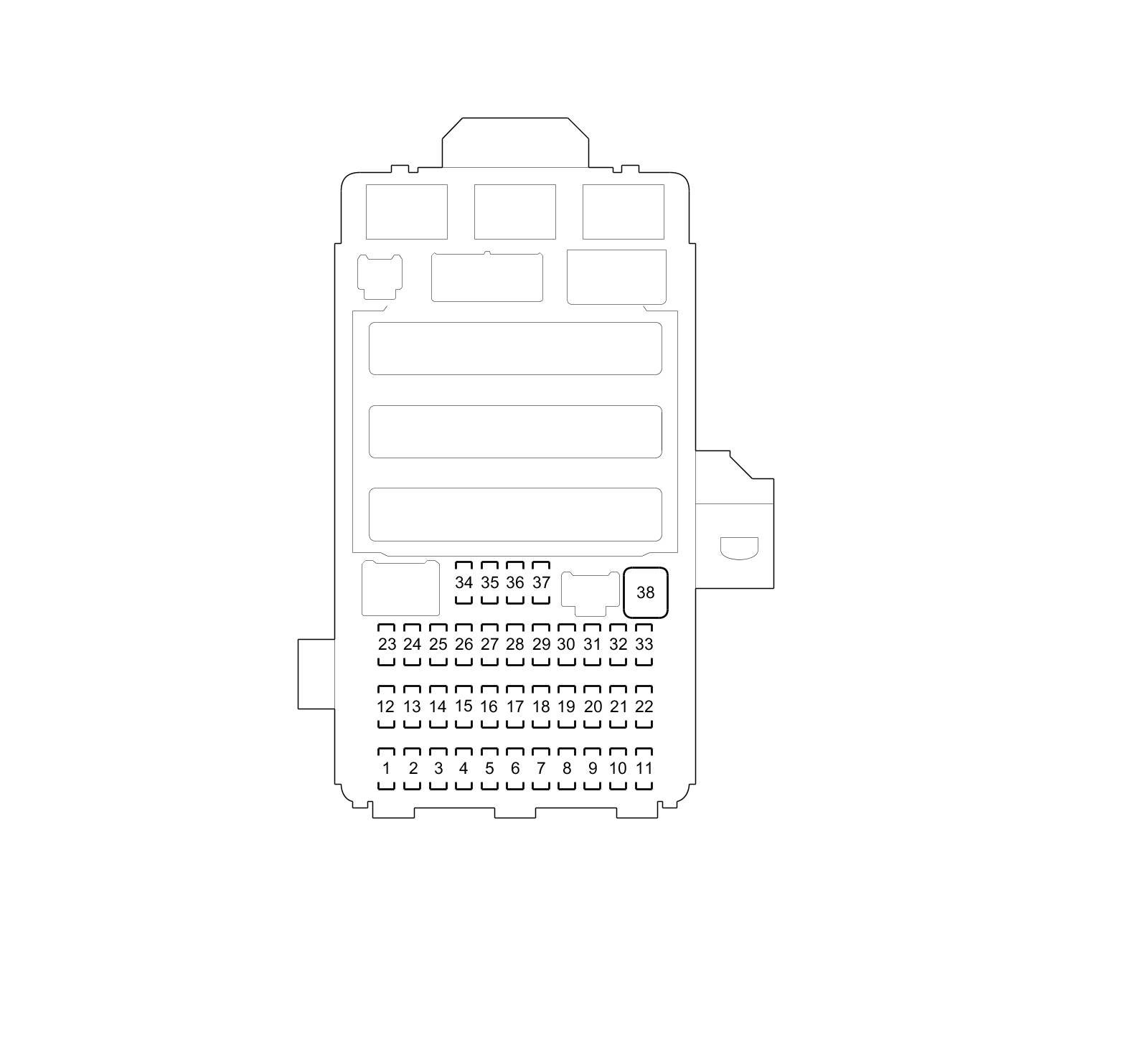

Under-dash Fuse/Relay Box

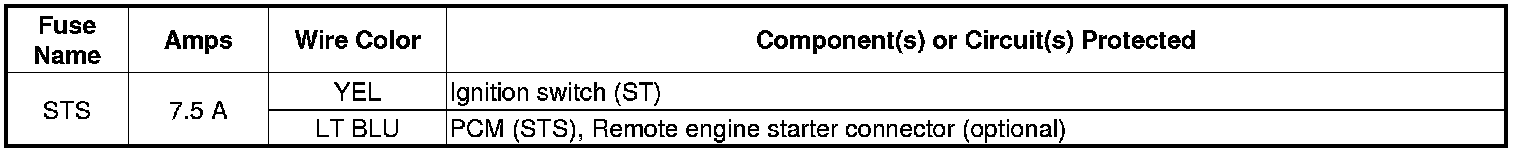

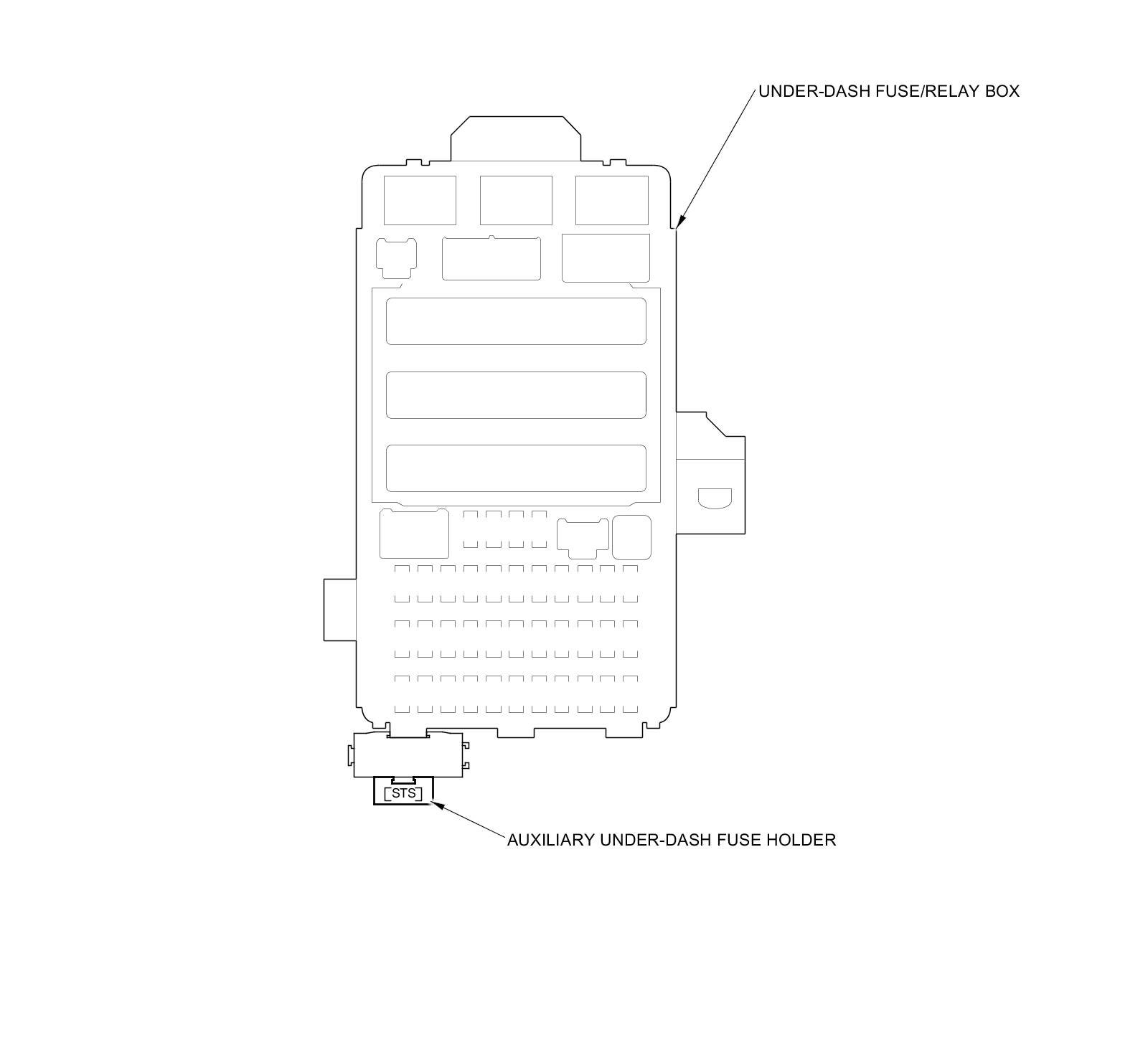

Auxiliary Under-dash Fuse Holder

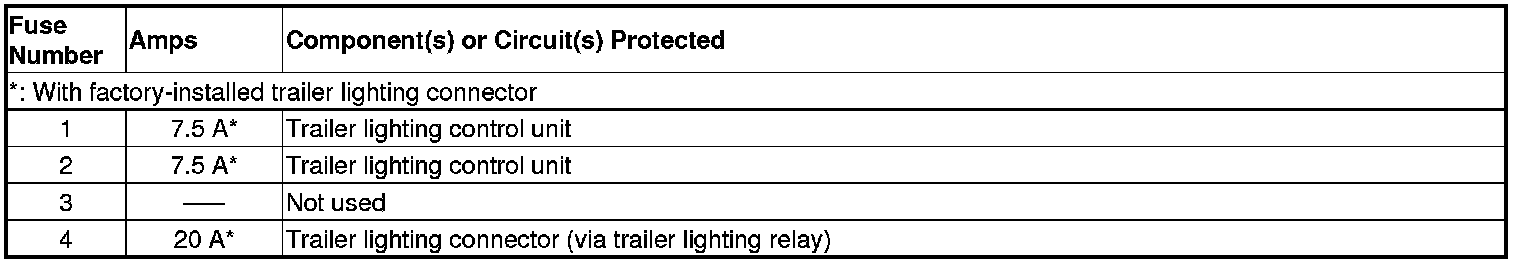

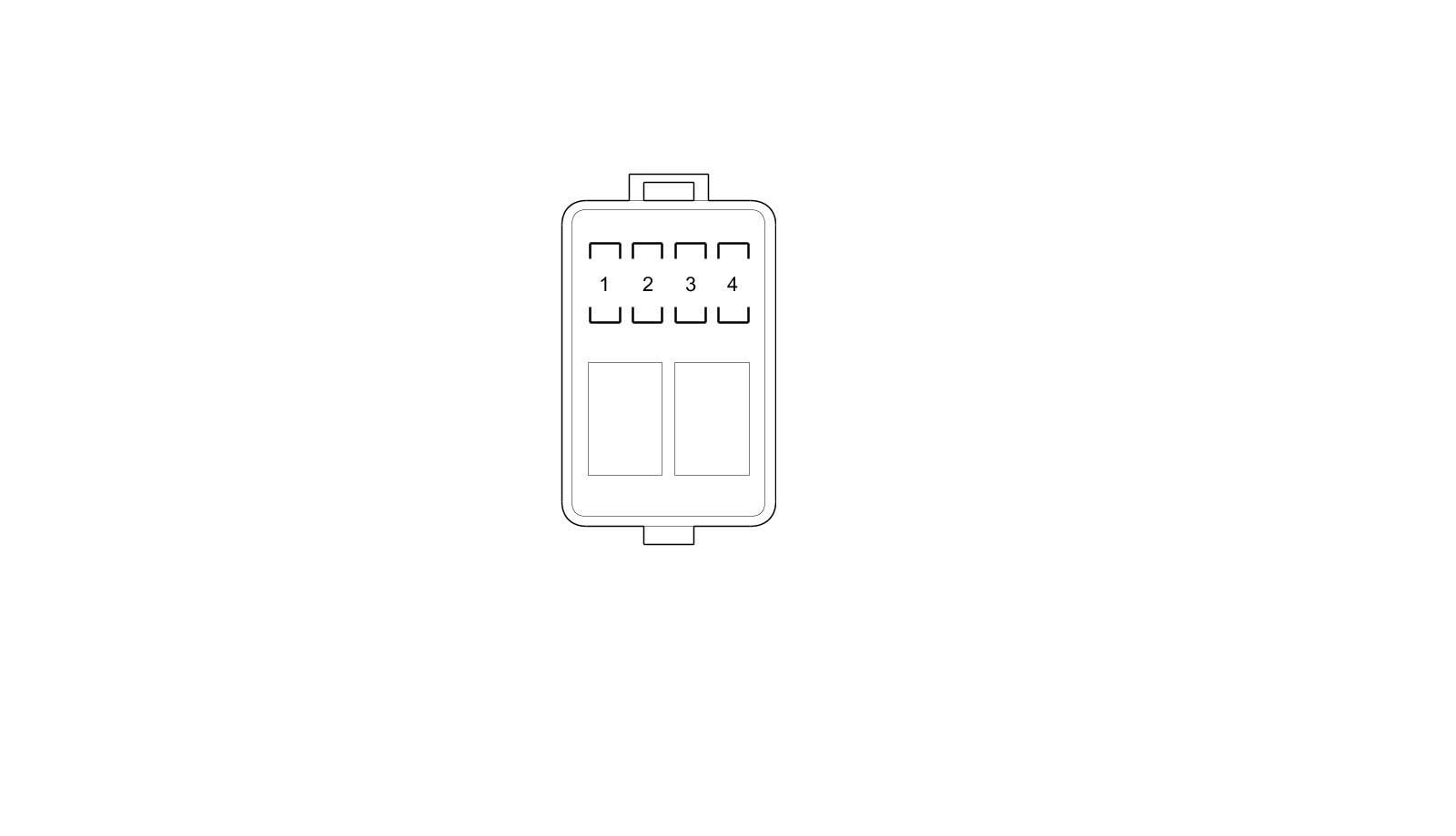

Rear Fuse/Relay Box
