CKP Pulse Plate Replacement

CKP Pulse Plate Replacement

1. Remove the crankshaft from the engine block Crankshaft And Piston Removal.

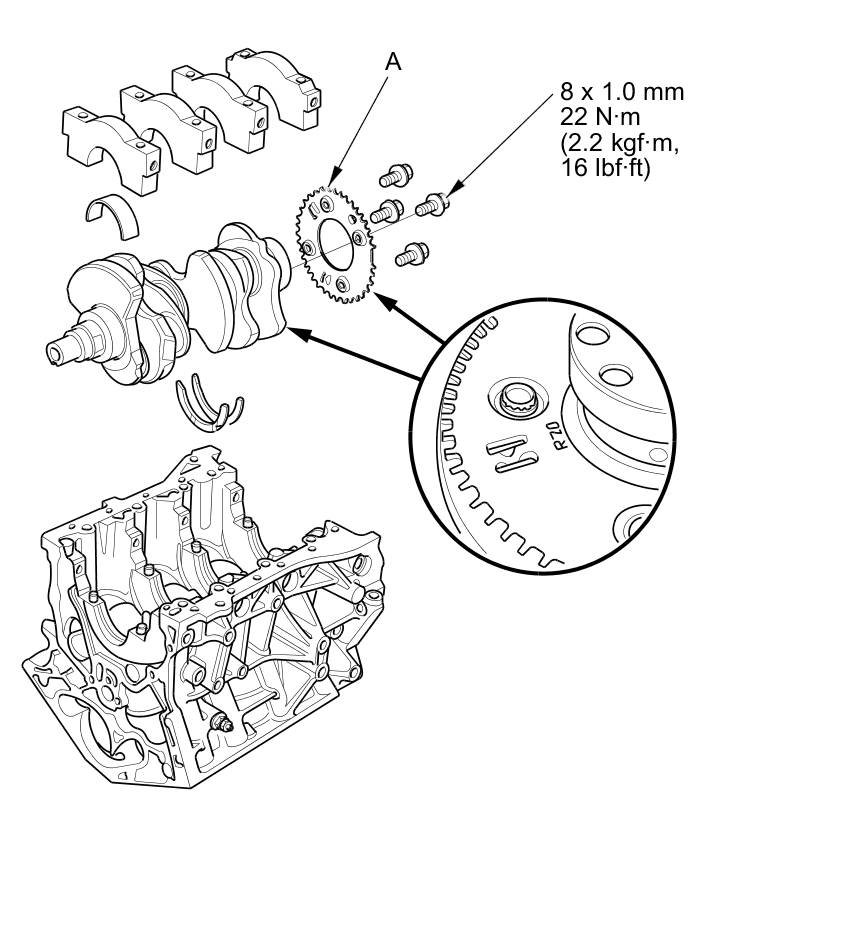

2. Remove the CKP pulse plate (A) from the crankshaft.

NOTE: Be careful not to damage the journals and the CKP pulse plate.






3. Install the CKP pulse plate in the reverse order of removal.

NOTE: When installing the crankshaft, refer to the crankshaft and piston installation procedure Crankshaft And Piston Installation.
