Front A/F Sensor (B2, S1) Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

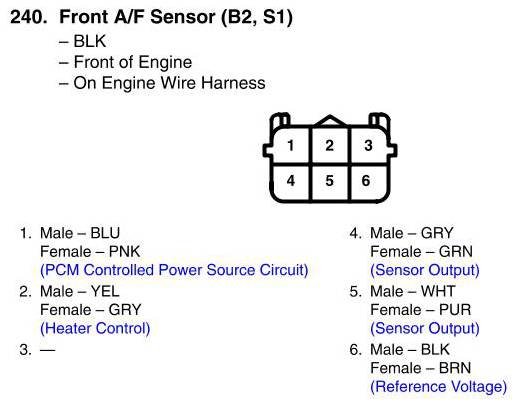

Front A/F Sensor (B2, S1) Connector View
