Front Rocker Arm Oil Pressure Switch Removal/Installation




Front Rocker Arm Oil Pressure Switch Removal/Installation

1. Remove the engine cover.

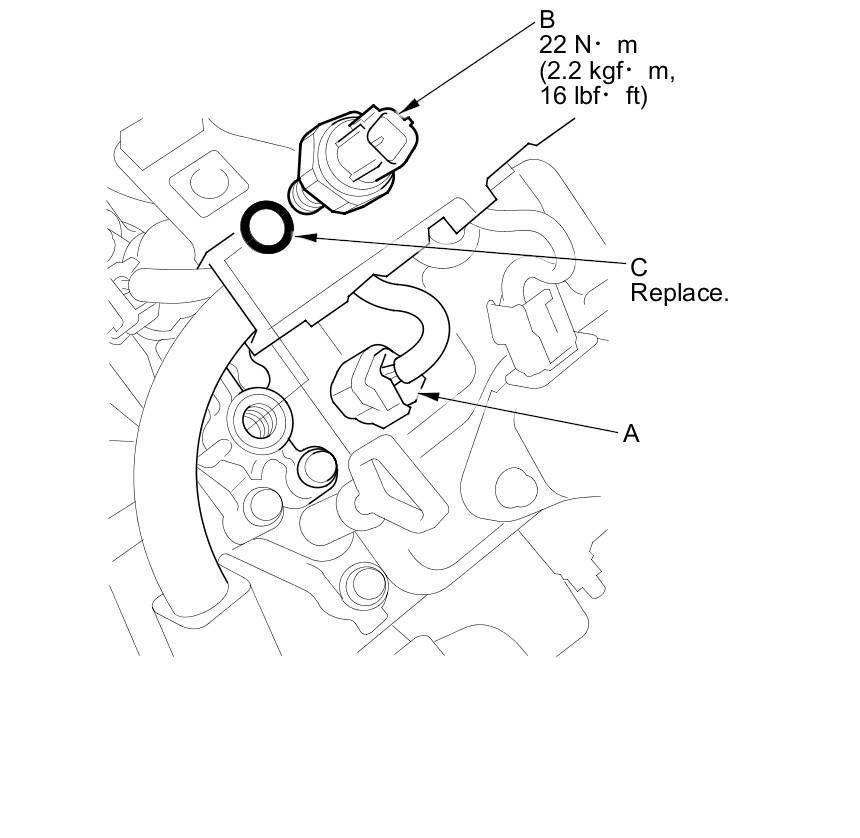

2. Disconnect the front rocker arm oil pressure switch 1P connector (A).





3. Remove the front rocker arm oil pressure switch (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
