Rear Rocker Arm Oil Pressure Switch Removal/Installation




Rear Rocker Arm Oil Pressure Switch Removal/Installation

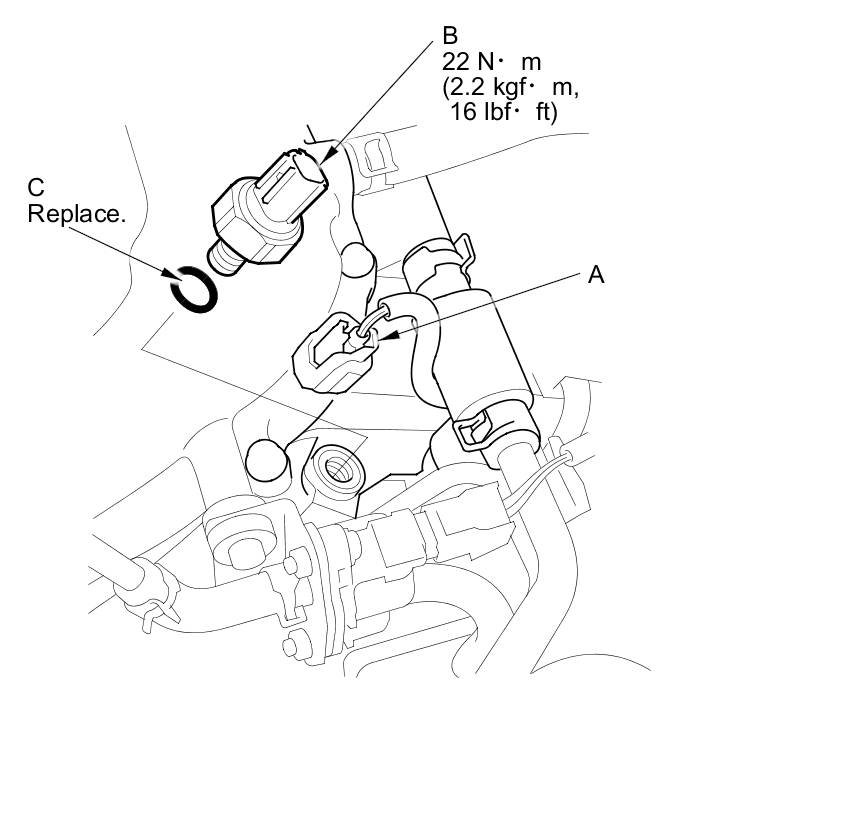

1. Disconnect the rear rocker arm oil pressure switch 1P connector (A).





2. Remove the rear rocker arm oil pressure switch (B).

3. Install the parts in the reverse order of removal with a new O-ring (C).
