Intake Manifold
Intake Manifold

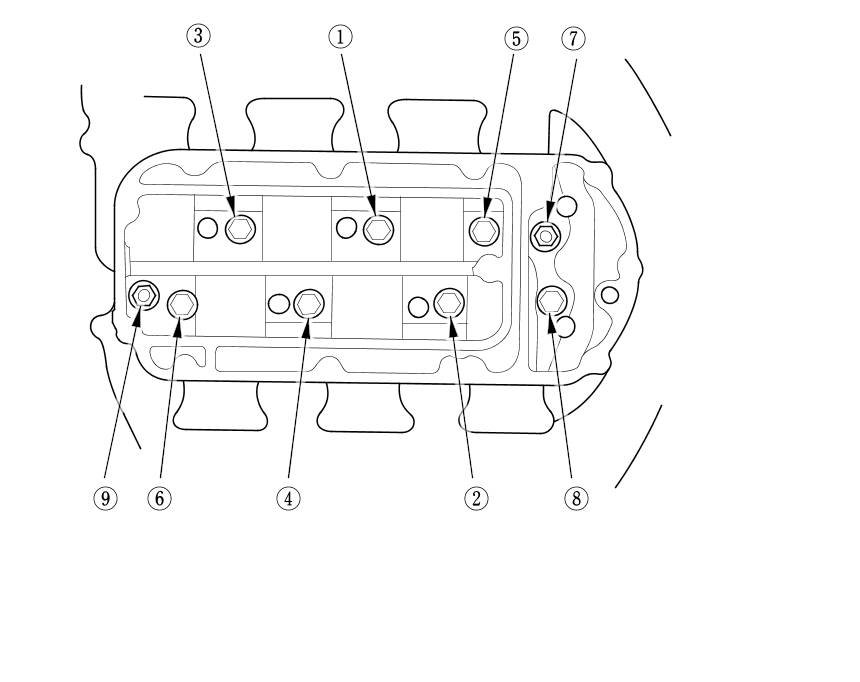

Tighten the bolts and nuts sequentially in three steps.

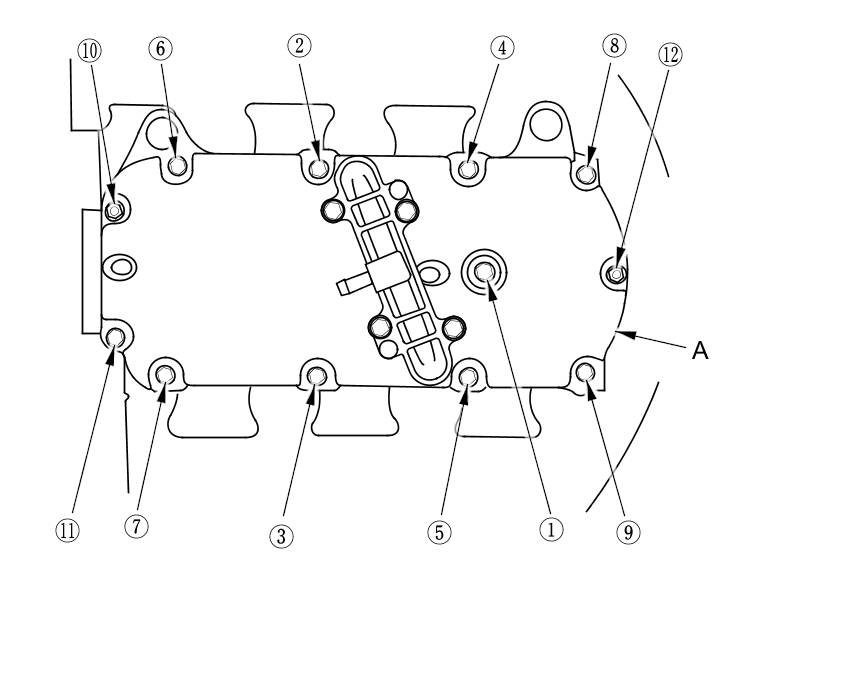

Upper cover (A)
Tighten the bolts and nuts sequentially in three steps.
