Switch: Service and Repair

VTM-4 LOCK Switch Test/Replacement

1. Remove the driver's center panel Dashboard Center Panel Removal/Installation.

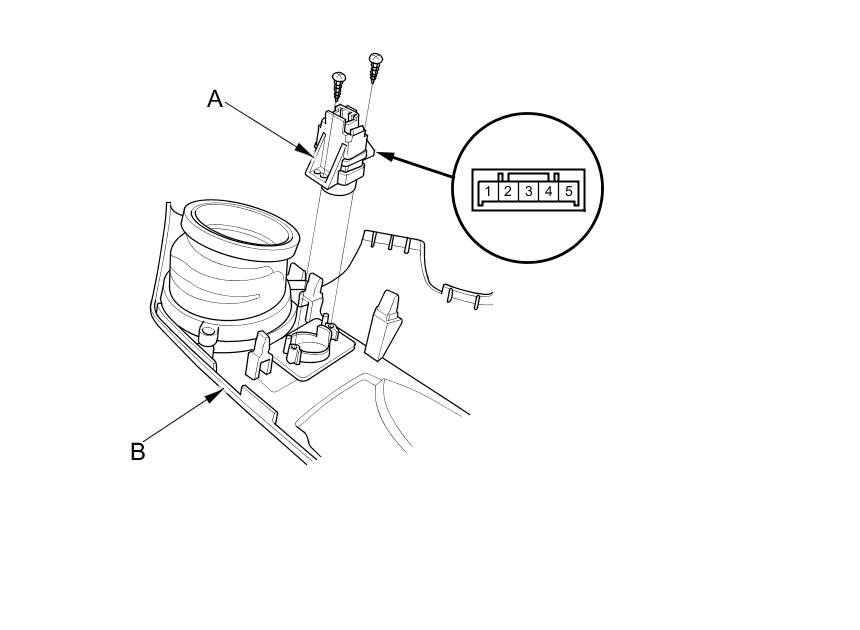

2. Disconnect the VTM-4 LOCK switch 5P connector from the VTM-4 LOCK switch (A), then remove the VTM-4 LOCK switch from the driver's center panel (B).

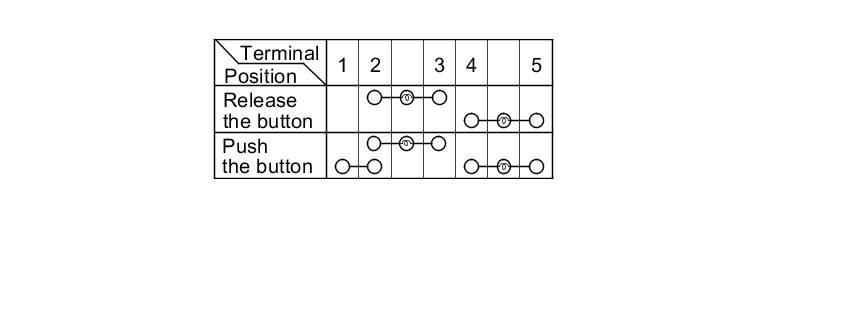

3. Check for continuity between the terminals in each button position according to the table.






4. If the continuity check is not as specified, replace the VTM-4 LOCK switch bulb or the VTM-4 LOCK switch.
