System Outline

This system is composed of the VSA modulator-control unit, the wheel speed sensor, the steering angle sensor, the yaw rate-lateral acceleration sensor, and the system indicators in the gauge control module. The VSA modulator-control unit controls the ABS, EBD, TCS, VSA, and brake assist with the brake pressure of each wheel and reduces engine torque.

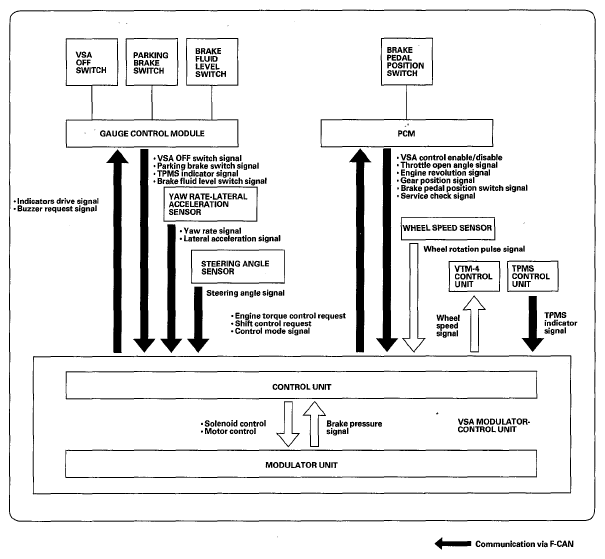

Fig 1: VSA (Vehicle Stability Assist) System Outline

Courtesy of AMERICAN HONDA MOTOR CO., INC.
