VSA OFF Switch Test/Replacement

Push out the VSA OFF switch (A) from the switch panel.

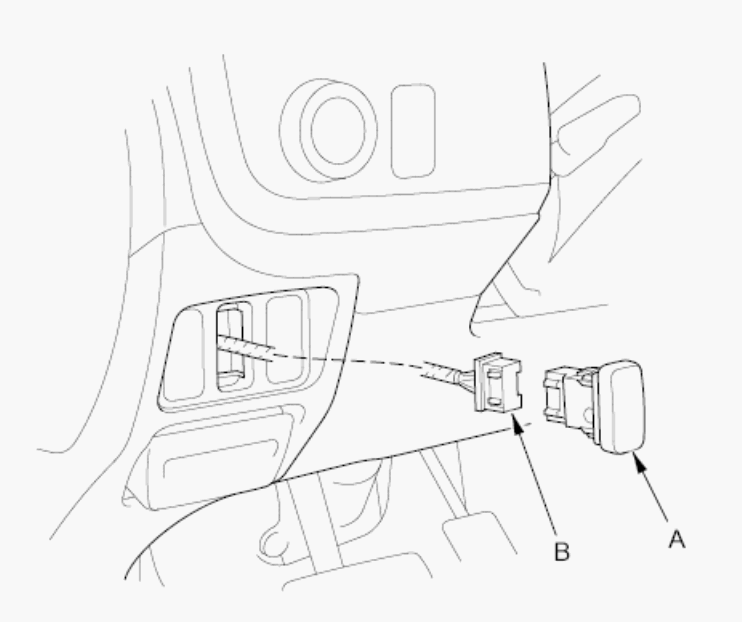

Fig 1: Identifying VSA OFF Switch & Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the VSA OFF switch 10P connector (B).
On the switch side, check for continuity between the VSA OFF switch 10P connector terminals No. 2 and No. 3. There should be continuity when the button is pressed, and no continuity when the button is released.

Fig 2: Checking Continuity Between VSA OFF Switch 10P Connector Terminals No. 2 And No. 3
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the VSA OFF switch 10P connector terminals No. 5 and No. 6. There should be continuity at all times.

Fig 3: Checking Continuity Between VSA OFF Switch 10P Connector Terminals No. 5 And No. 6
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the VSA OFF switch in the reverse order of removal.
