Wheel Speed Sensor Replacement: Front
- Turn the ignition switch to LOCK (0).

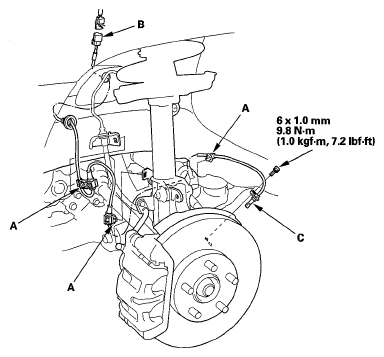

- Remove the three clips (A), then disconnect the wheel speed sensor connector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the bolts and the wheel speed sensor (C).
- Install the wheel speed sensor in the reverse order of removal, and note these items:
- Do not twist the sensor wires.
- If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
- Make sure there is no debris in the sensor mounting hole.
- Start the engine, and check that the ABS, the VSA indicators, and the trailer stability assist warning goes off.
- Test-drive the vehicle, and check that the ABS, the VSA indicators, and the trailer stability assist warning do not come on.
