Circuit Diagram

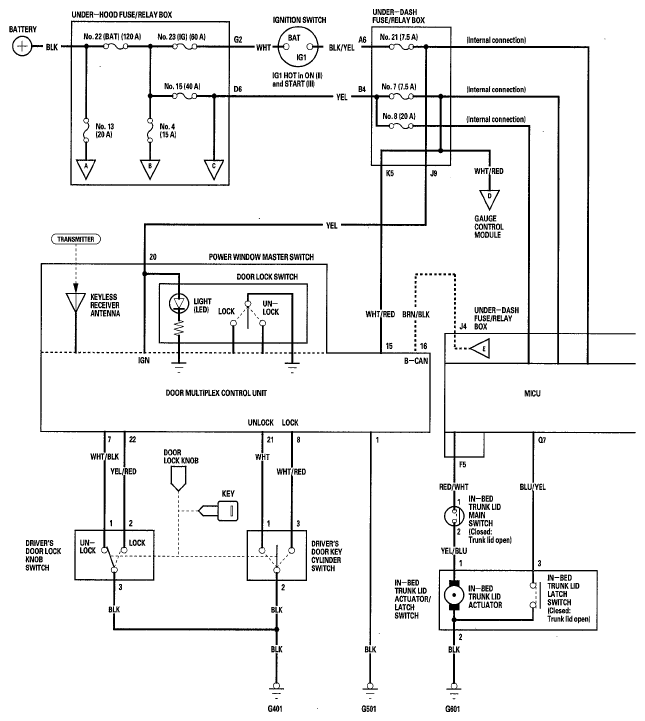

Fig 1: Keyless/Power Door Locks/Security System - Circuit Diagram (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

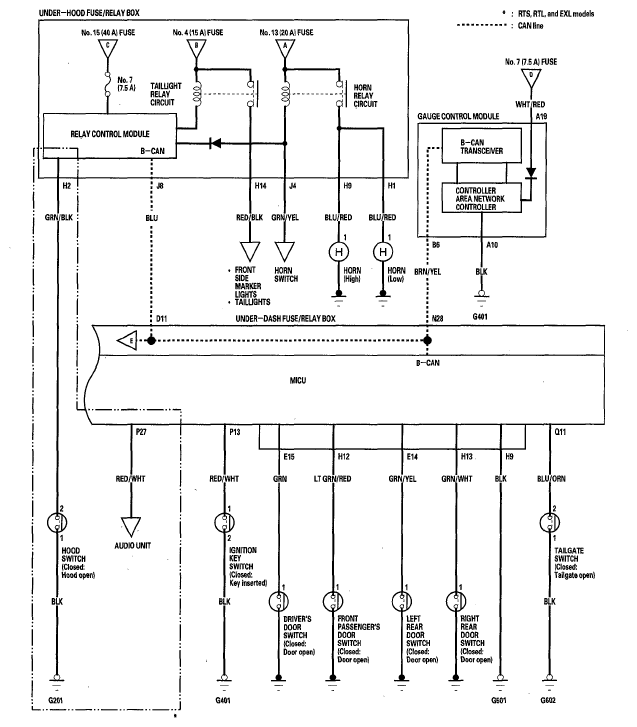

Fig 2: Keyless/Power Door Locks/Security System - Circuit Diagram (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

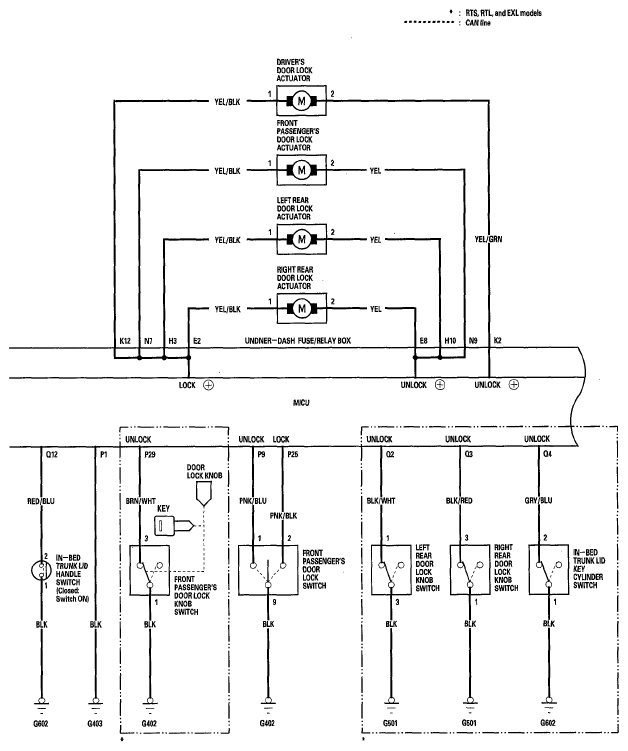

Fig 3: Keyless/Power Door Locks/Security System - Circuit Diagram (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
