Imoes Unit Input Test/Replacement (USA)

Imoes Unit Input Test/Replacement

USA models

1. Remove the rear panel insulator Rear Panel Insulator Replacement.

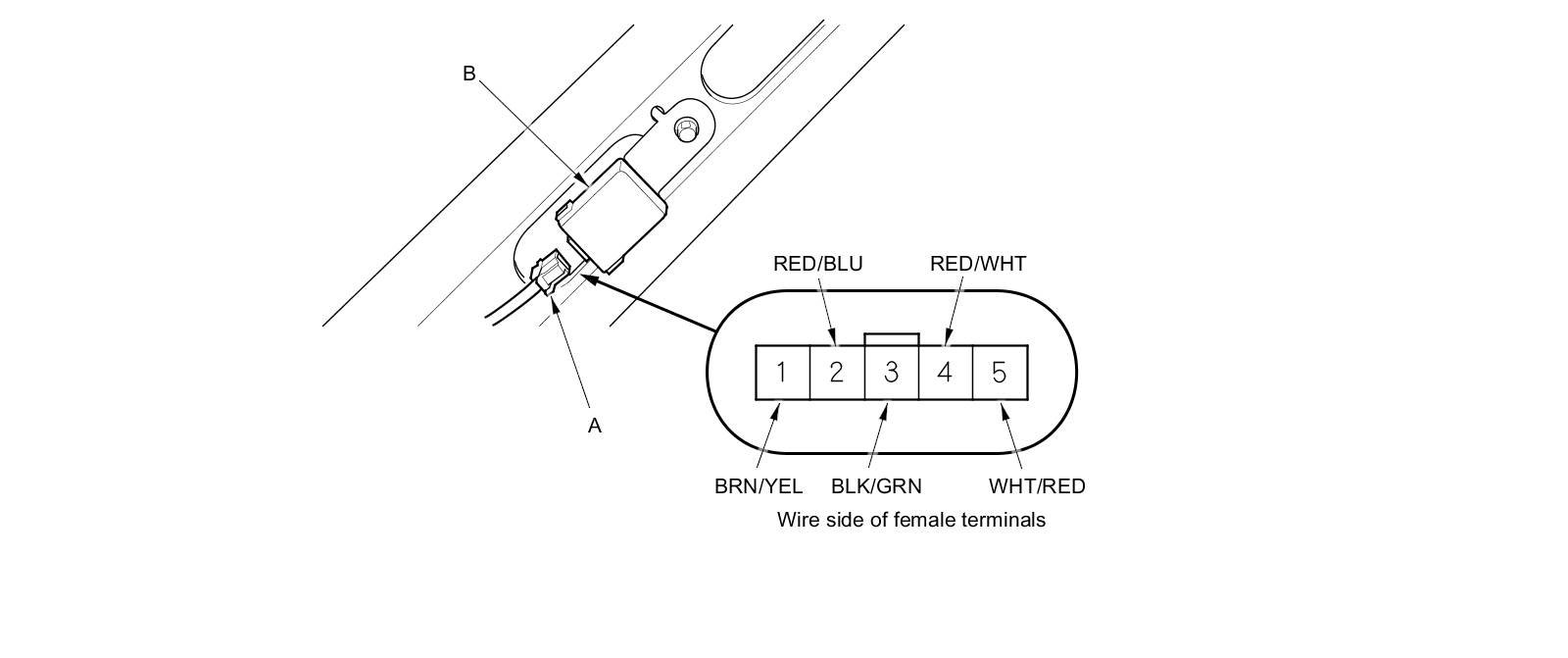

2. Disconnect the 5P connector (A) from the imoes unit (B).





3. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

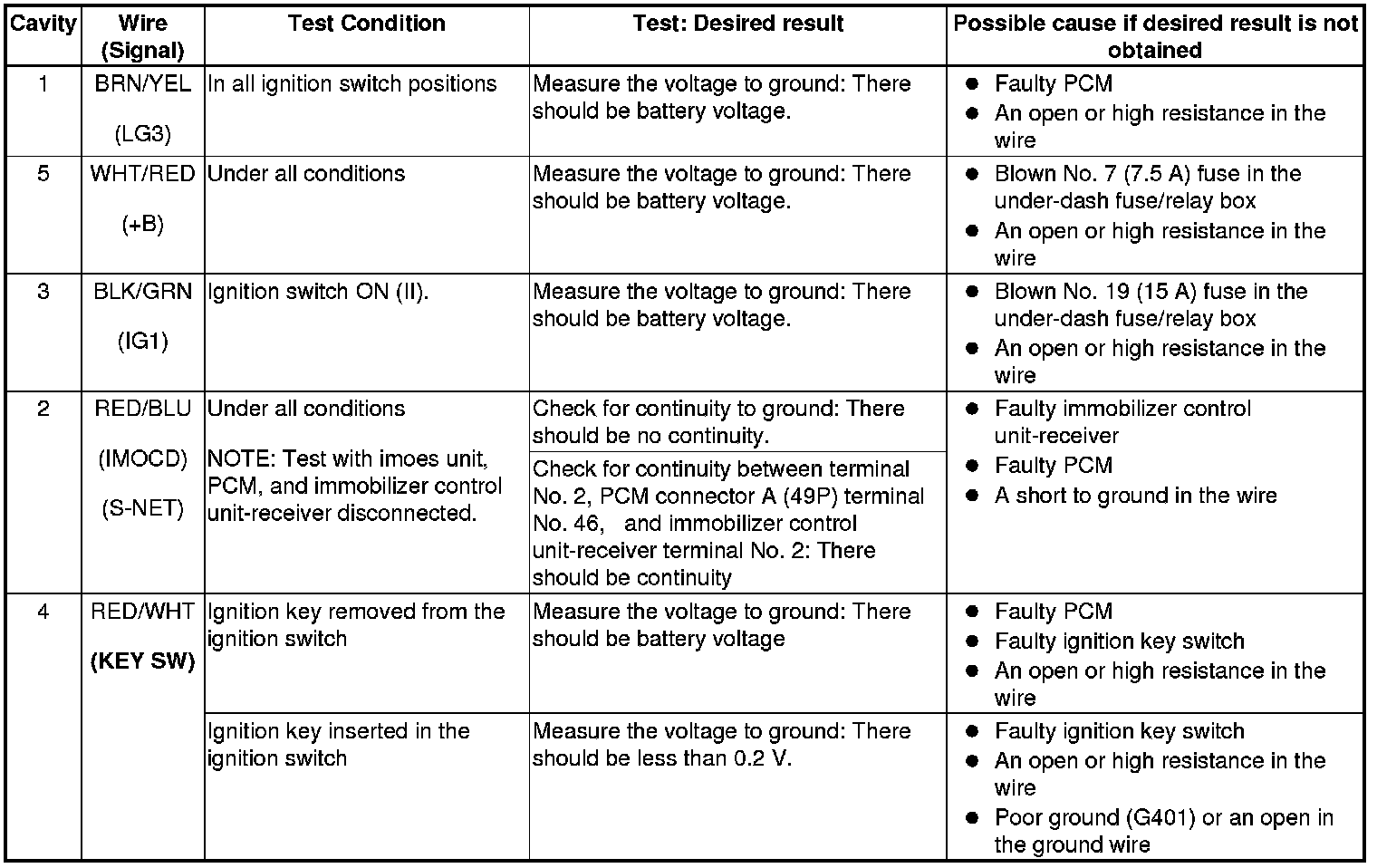

4. Reconnect the connector to the imoes unit, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the imoes unit must be faulty; replace it.
