Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

1. Raise the vehicle on a lift Service and Repair.

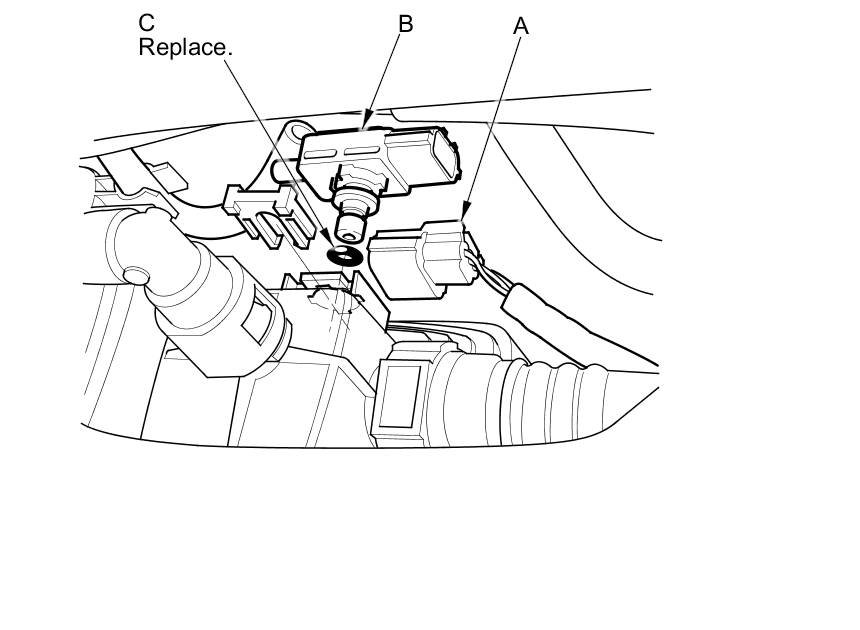

2. Disconnect the FTP sensor connector (A).





3. Remove the FTP sensor (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
