Exhaust Manifold




Warm Up TWC

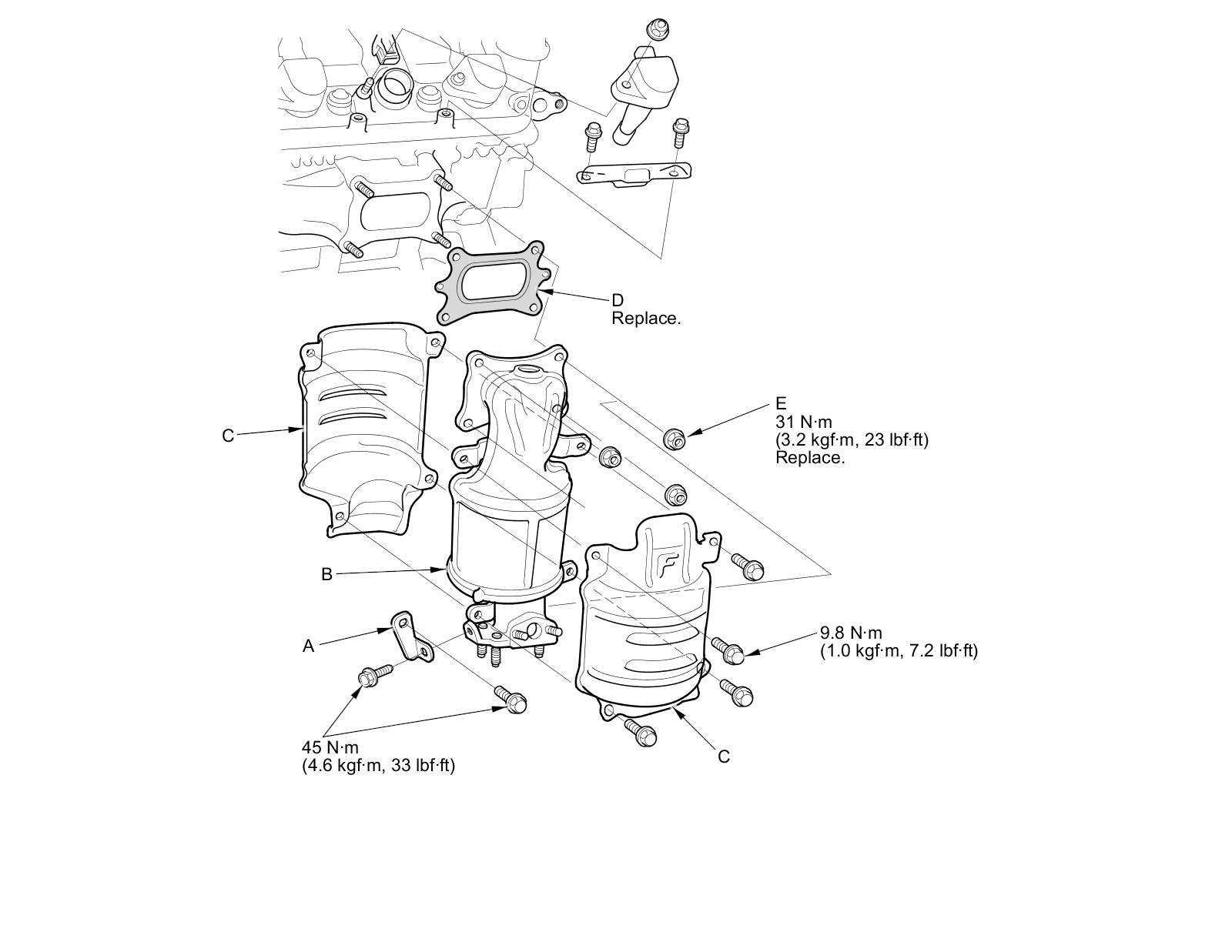

FRONT

New self-locking nuts (E). Tighten the nuts in a crisscross pattern in two or three steps.

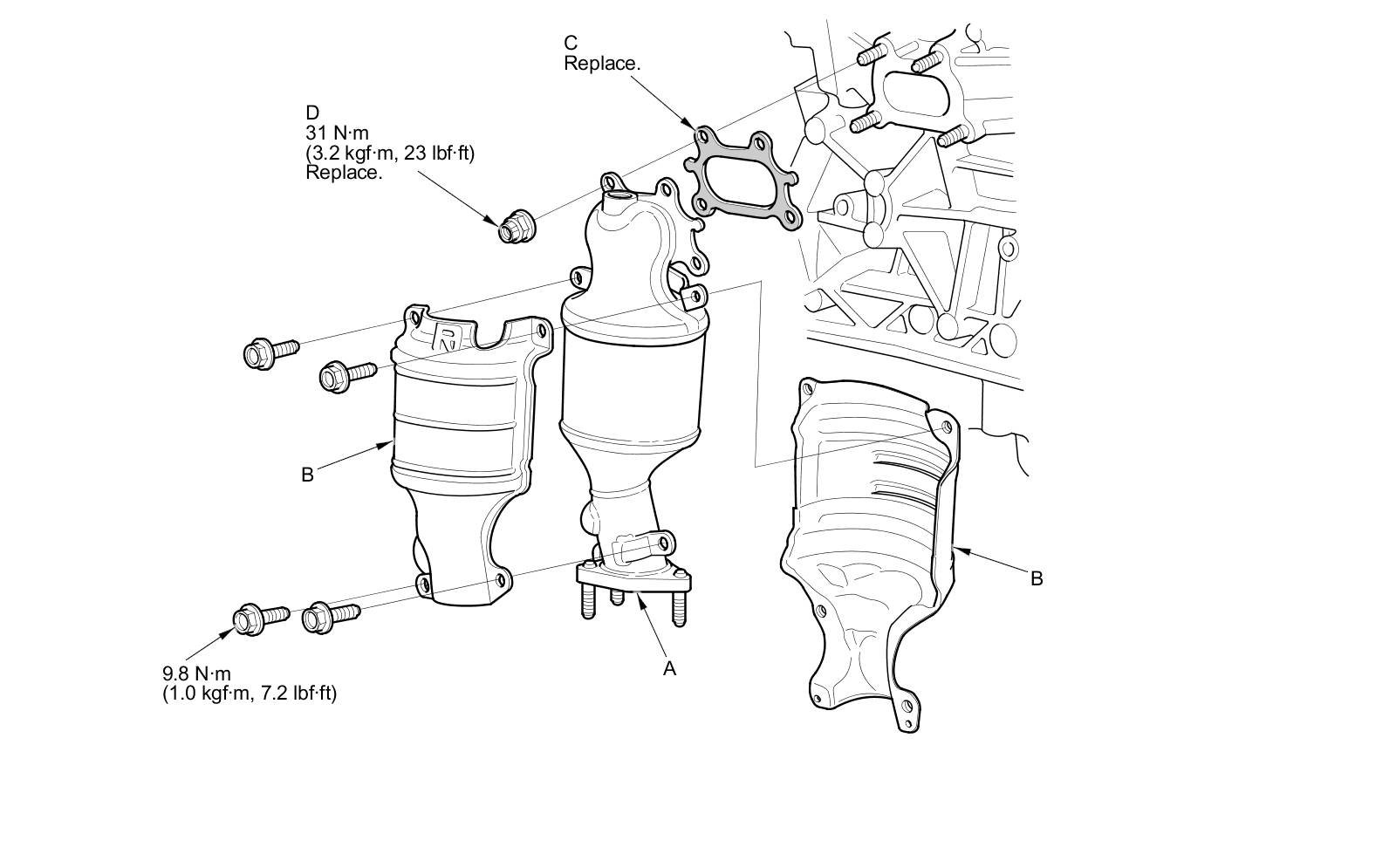

REAR

New self-locking nuts (D). Tighten the nuts in a crisscross pattern in two or three steps.
