Connector Locations




Fuse/Relay Box Connector Locations

Under-Hood Fuse/Relay Box

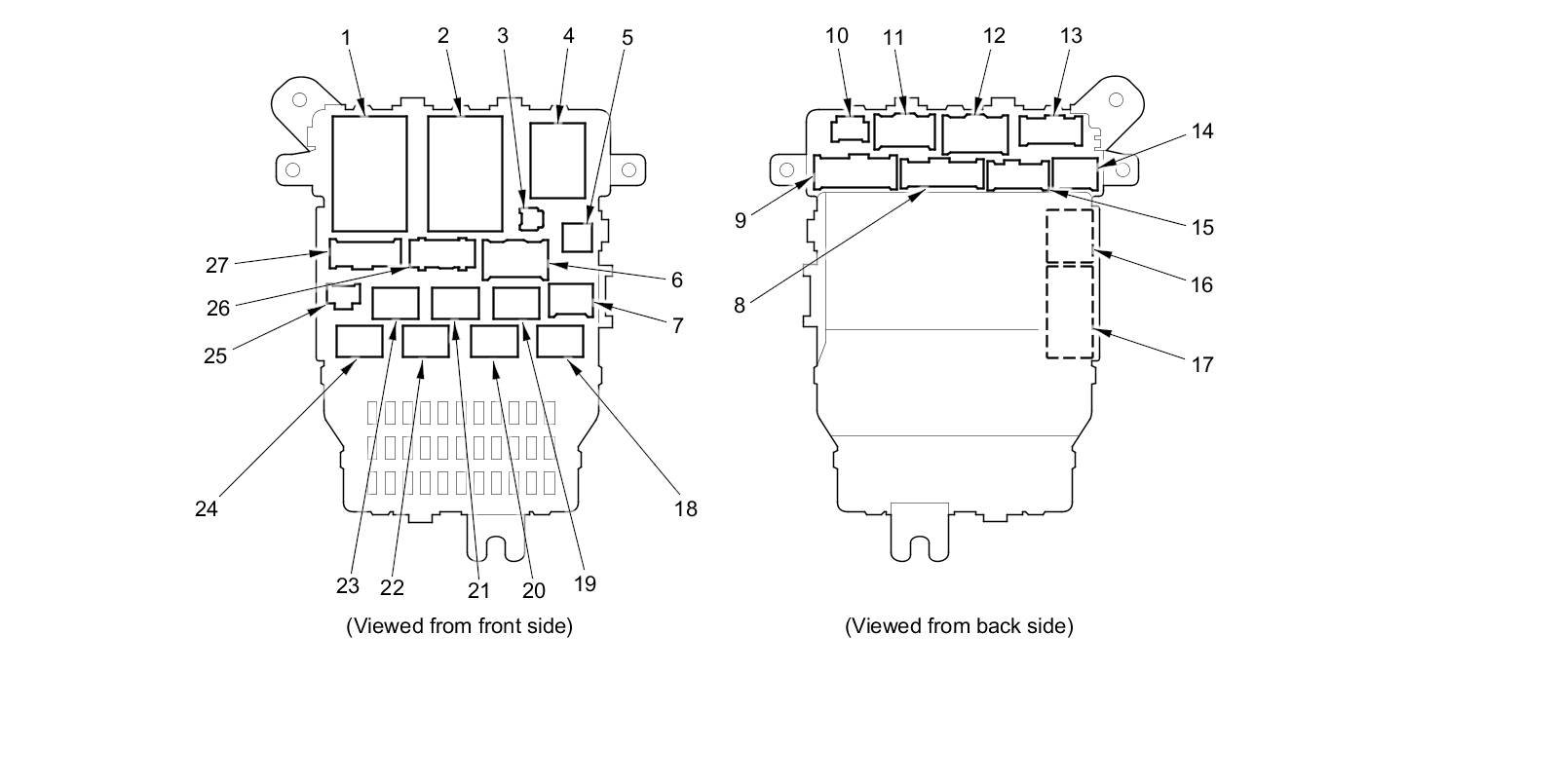

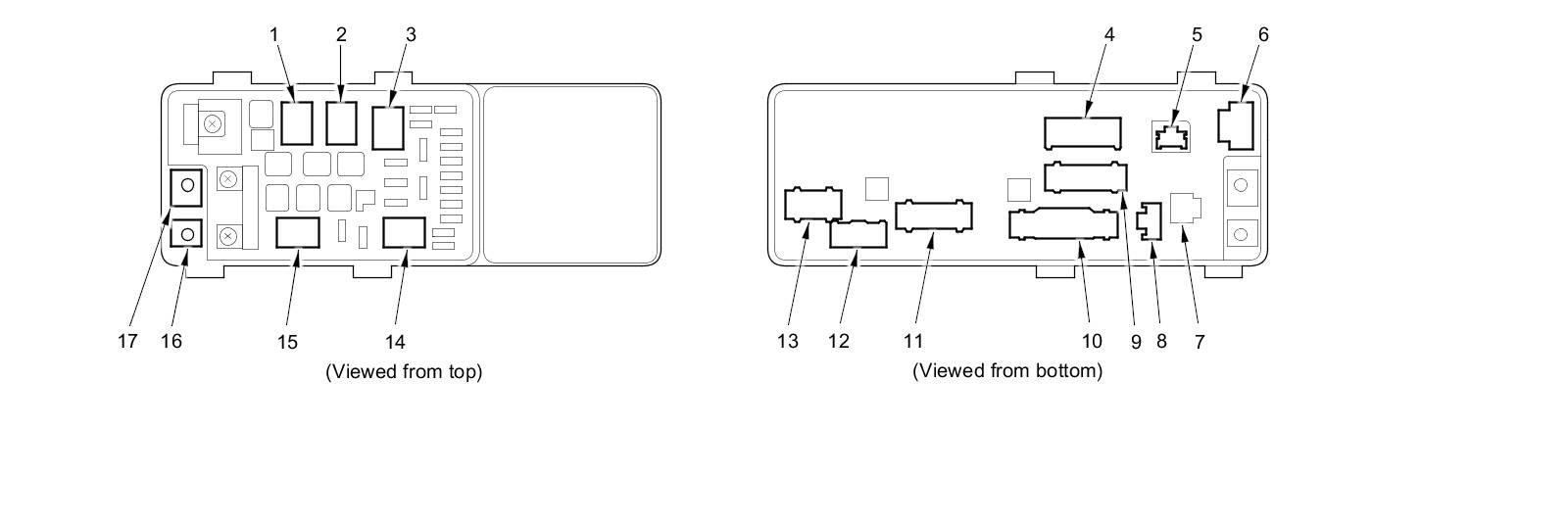

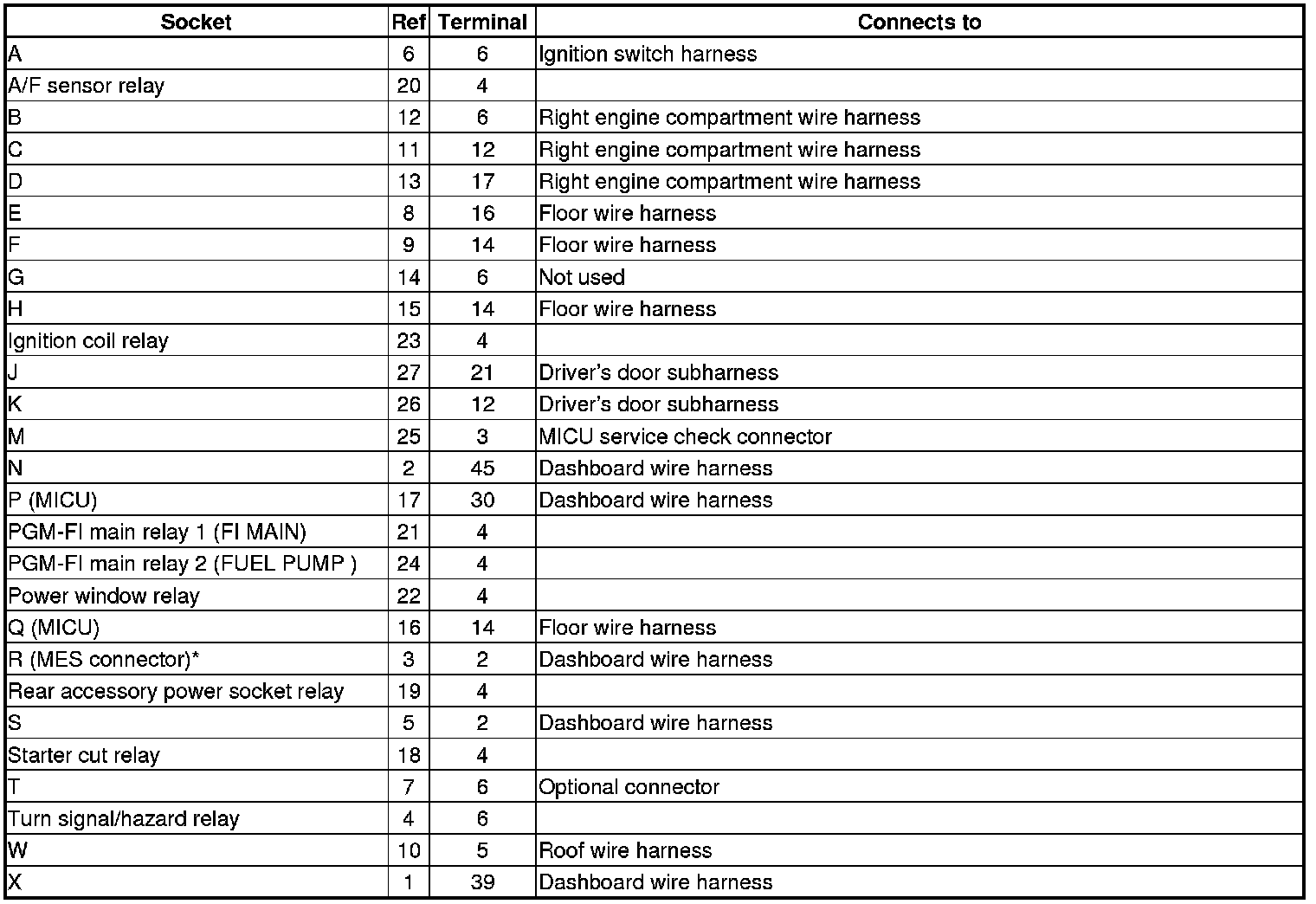

Under-Dash Fuse/Relay Box














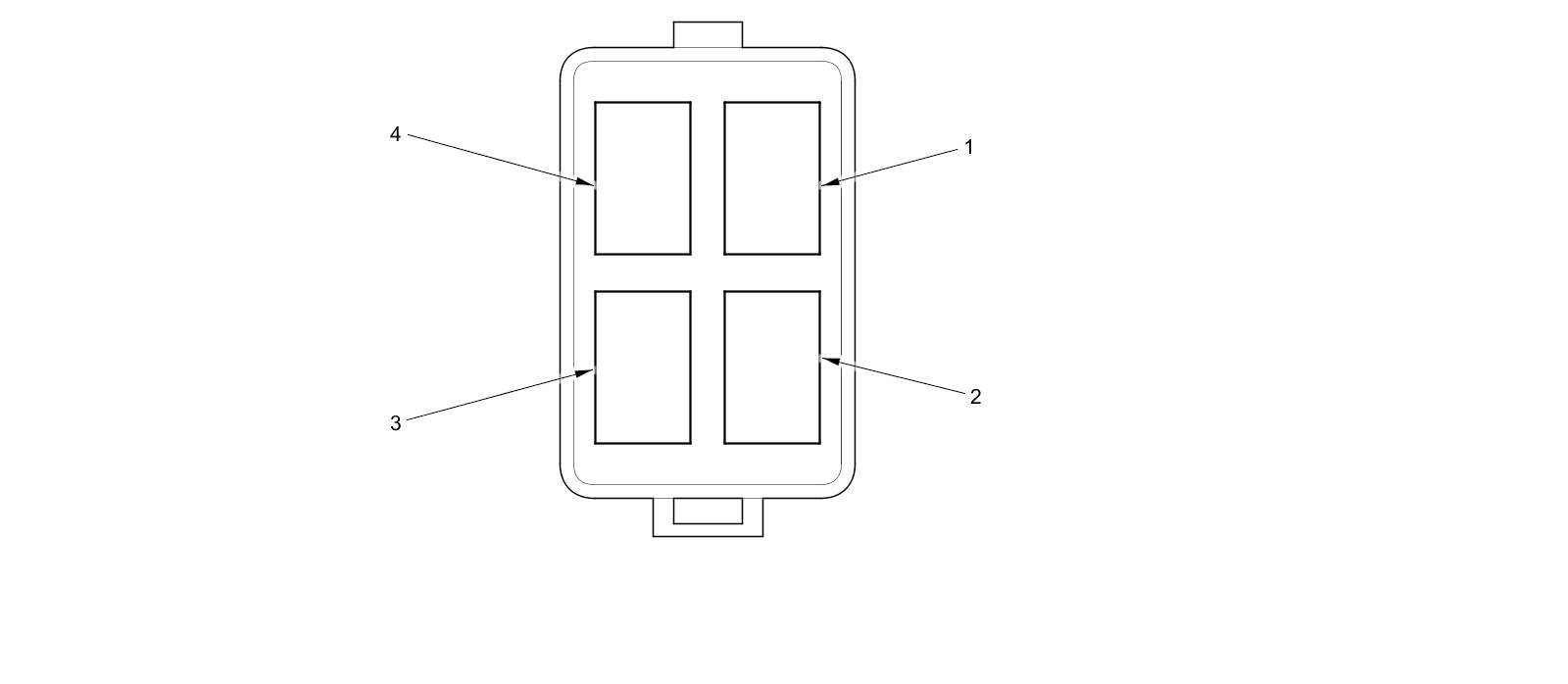

Auxiliary Under-Hood Relay box














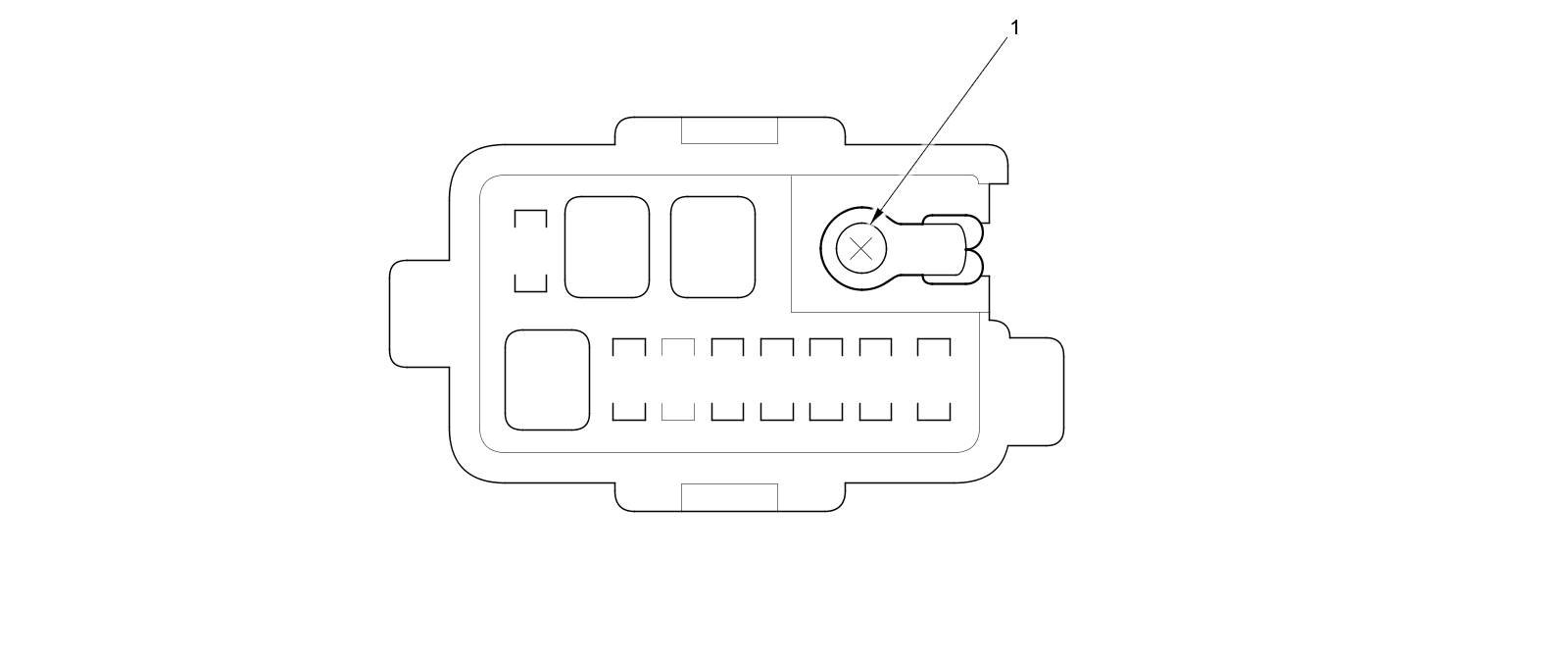

Auxiliary Under-Hood Fuse Box
