Passenger's Power Window Motor Test

Passenger's Power Window Motor Test

1. Remove the door panel.

- Front door Service and Repair
- Rear door Service and Repair

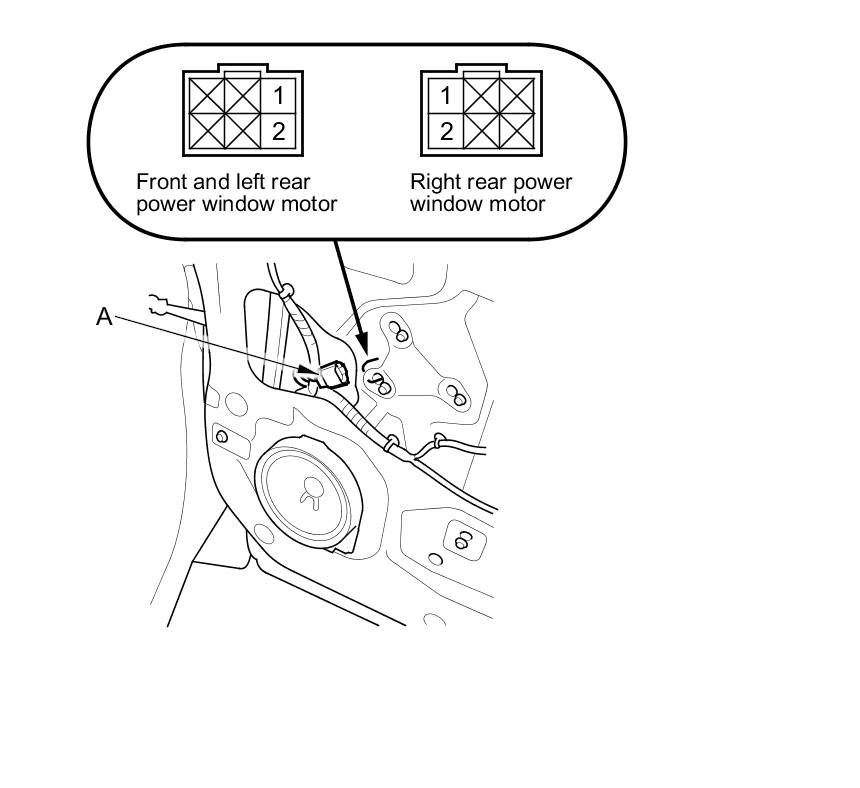

2. Disconnect the 6P connector (A) from the power window motor.

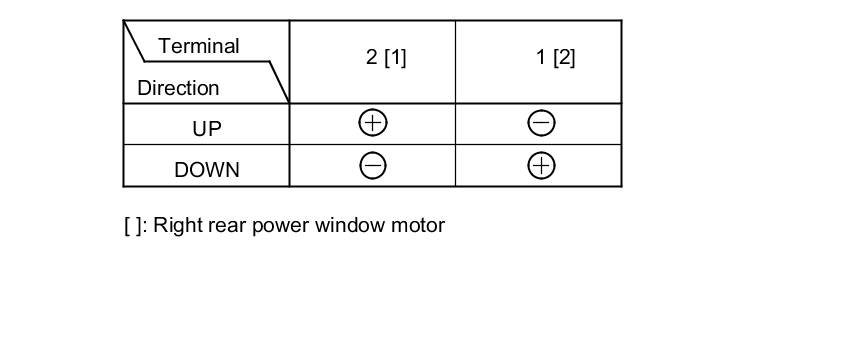

3. Test the motor by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.





4. If the motor does not run or fails to run smoothly, replace the passenger's door regulator.

- Front door regulator Service and Repair
- Rear door regulator Service and Repair
