Security Hood Switch Test

  1. Open the hood.
  2. Disconnect the 2P connector (A) from the security hood switch (B).

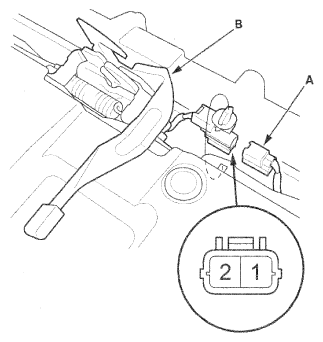

    Fig 1: Identifying Security Hood Switch And 2P Connector
    G06953922Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.
    • There should be continuity between the terminals No. 1 and No. 2 when the hood is opened (lever released).
    • There should be no continuity between the terminals No. 1 and No. 2 when the hood is closed (lever pushed down).
  4. If the continuity is not as specified, replace the hood latch (see HOOD LATCH REPLACEMENT ).
