Battery Terminal Fuse Box

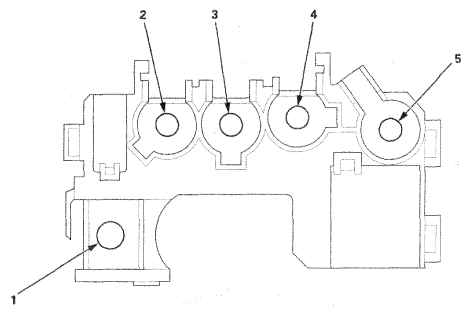

BATTERY TERMINAL FUSE BOX REFERENCE TERMINALS
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| T1 | 1 | -- | Battery terminal, Starter |
| T2 | 2 | -- | DC-DC converter cable (included in the IMA motor power cable) |
| T3 | 3 | -- | Left engine compartment wire harness |
| T4 | 4 | -- | Left engine compartment wire harness |
| T5 | 5 | -- | Left engine compartment wire harness |
