Speaker Check Mode
NOTE:
- There may be other self-diagnostic functions that are for factory use only.
- If no sound is heard from speakers, go to NO SOUND IS HEARD FROM THE SPEAKER(S) .
- Turn the ignition switch to ON (II).
- Make sure the audio unit is turned off.

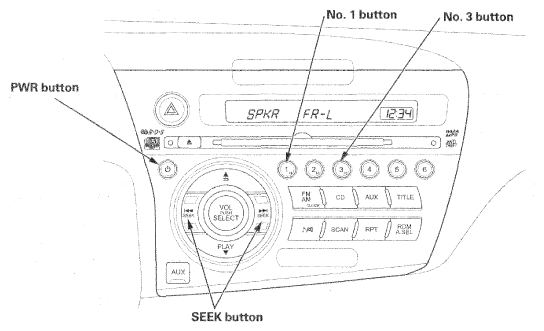

- Press and hold the preset No. 1 and No. 3 buttons.
- While holding the buttons, press the PWR button to on.
- Release the buttons and the speaker check mode begins. A tone should sound from one speaker as indicated on the display.
- Adjust the test tone volume to a comfortable level with the VOL/SELECT knob.
- Each time you press the SEEK button (« »), the test moves to the next speaker in the order listed in the table.
Display Specifications
Separated stereo amplifier type
(») is pressed: (1)→(2)→(3)→4→(5)→(6)
(«) is pressed: (1)→(6)→(5)→4→(3)→(2)
Built-in stereo amplifier type
(») is pressed: (1)→(2)→(3)→5→(6)
(«) is pressed: (1)→(6)→(5)→3→(2)
AUDIO SYSTEM BUTTONS SPECIFICATION CHARTSpeaker Displayed Segments Remarks (1) Driver's door speaker and left tweeter SPKR FR-L You should hear a tone corresponding to the speaker (2) Passenger's door speaker and right tweeter SPKR FR-R You should hear a tone corresponding to the speaker (3) Right rear speaker SPKR RR-R You should hear a tone corresponding to the speaker (4) Subwoofer SPKR SUBW You should hear a tone corresponding to the speaker (5) Left rear speaker SPKR RR-L You should hear a tone corresponding to the speaker (6) All speakers SPKR ALL You should hear a tone corresponding to the speaker NOTE: Any other diagnostic screens are for factory use only. - The speaker check mode ends when you turn the audio unit off or turn the ignition switch to LOCK (0).
