A/T Gear Position Indicator Panel Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Apply the parking brake, and move the shift lever to N.
  3. Remove the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  4. Remove the A/T gear position indicator panel light socket (A).

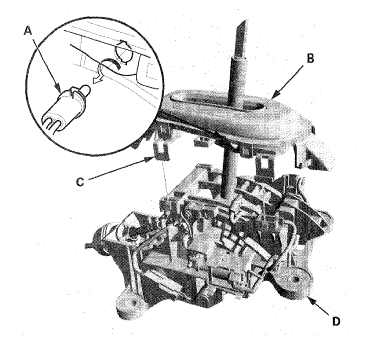

    Fig 1: Removing A/T Gear Position Indicator Panel Light Socket
    G06951134Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Wrap the end of a thin blade screwdriver with tape, and pry up the A/T gear position indicator panel (B) by releasing the four locks (C) from the shift lever bracket base (D).
  6. Remove the lever cover (A) from the A/T gear position indicator panel (B).

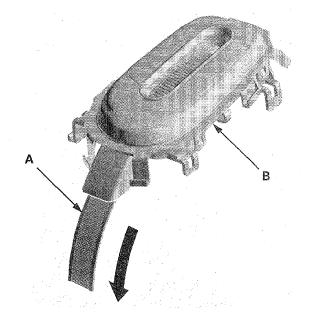

    Fig 2: Locating Lever Cover And A/T Gear Position Indicator Panel
    G06951135Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Check the lever cover for wear and damage, and replace it if necessary.
  8. Install the lever cover to the new A/T gear position indicator panel.
  9. Install the A/T gear position indicator panel (A) to the shift lever bracket base (B), and push the locks (C) to the hooks (D) securely.

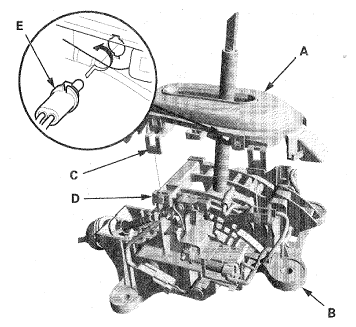

    Fig 3: Installing A/T Gear Position Indicator Panel Light Socket
    G06951136Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the A/T gear position indicator panel light socket (E).
  11. Install the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  12. Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  13. Shift the shift lever to P.
