Motor Power Inverter (MPI) Module Removal/Installation

Put on insulated gloves and use insulated tools to protect you from electrical shock.
IMA components are located in this area. The IMA is a high-voltage system. You must be familiar with the IMA system before working on or around it. Make sure you have read the IMA service precautions before doing repairs or service.

Remove the phase motor currrent sensor.
Remove the MCM. Motor Control Module (MCM) Removal/Installation

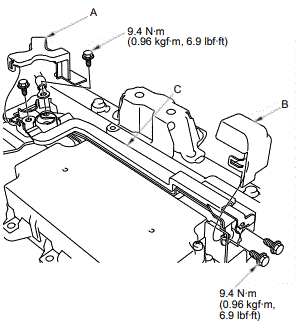

Remove the terminal cover (A, B), then remove the busbar (C) fromm the MPI Module.

Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the busbars (A, B) from the DC-DC converter.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

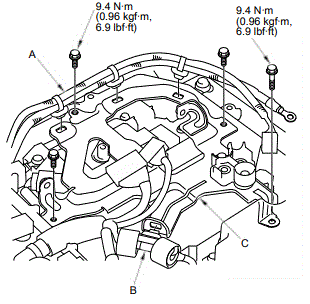

Remove the clips on the harness (A, B) then remove the MCM bracket (C).

Courtesy of AMERICAN HONDA MOTOR CO., INC.

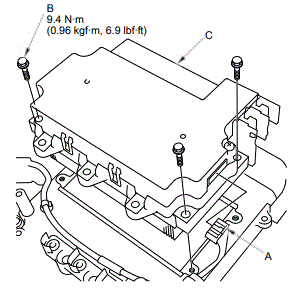

Disconnect the MPI module connector (A).

Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (B) and the MPI module (C).
Install the parts in the reverse order of removal.
NOTE: If the IMA battery level gauge displays no level, start the engine, and hold the engine speed between 3,500 rpm and 4,000 rpm without load (CVT in P or N, M/T in neutral) until the level gauge will display at least half charged level.
