Rear Door Lock Actuator Test: Installation
WARNING: This page is about a different variant/trim than selected.
Rear Door Panel
 Courtesy of HONDA, U.S.A., INC.
|

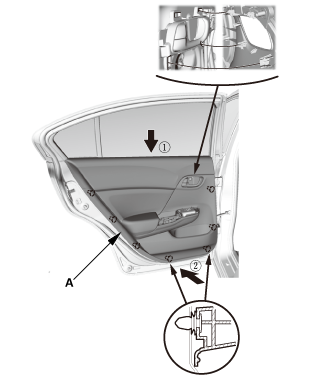

1. Install the door panel (A). |
 Courtesy of HONDA, U.S.A., INC.
|

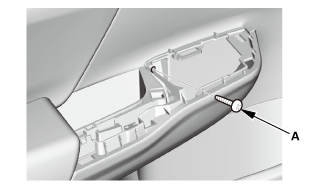

2. Install the screw (A). |
 Courtesy of HONDA, U.S.A., INC.
|

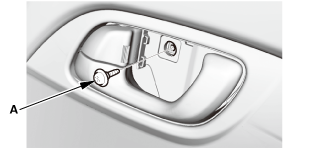

3. Install the screw (A). |
 Courtesy of HONDA, U.S.A., INC.
|

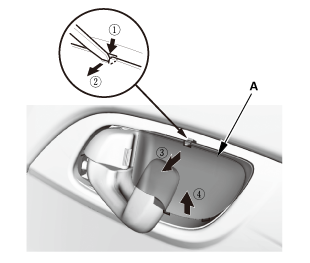

4. Install the inner handle cap (A). |
Rear Door Power Window Switch Panel
 Courtesy of HONDA, U.S.A., INC.
|

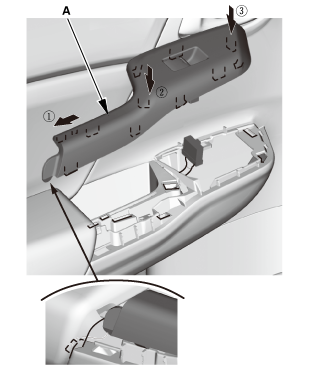

1. Install the power window switch panel (A). |
