Keyless Access LF Antenna (Middle Interior) Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

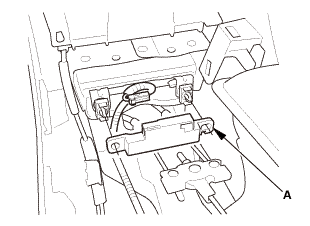

Middle Interior LF Antenna

Courtesy of HONDA, U.S.A., INC.

1. Install the middle interior LF antenna (A)

2. Connect the connector.

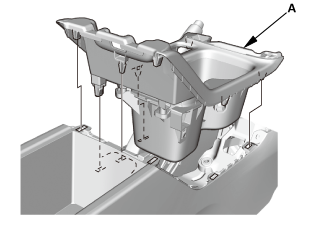

Cup Holder Panel Assembly

Courtesy of HONDA, U.S.A., INC.
1. Install the cup holder panel assembly (A).

Center Console Panel Assembly

Courtesy of HONDA, U.S.A., INC.

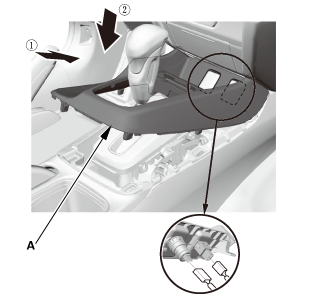

1. Connect the connector(s)

2. Install the center console panel (A).

Courtesy of HONDA, U.S.A., INC.

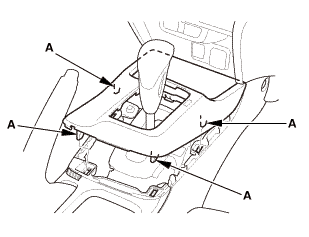

3. Attach the clips (A).

Shift Lever Knob

Courtesy of HONDA, U.S.A., INC.

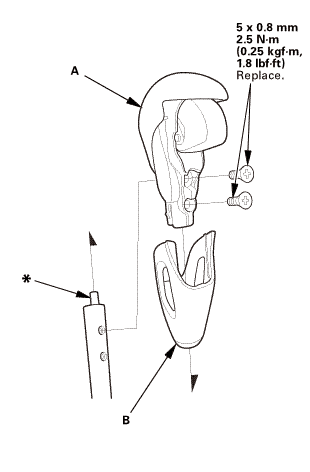

NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you assemble it.

1. Install the shift lever knob (A) and the shift lever knob ring (B)

2. Secure the shift lever knob with new screws.

Courtesy of HONDA, U.S.A., INC.

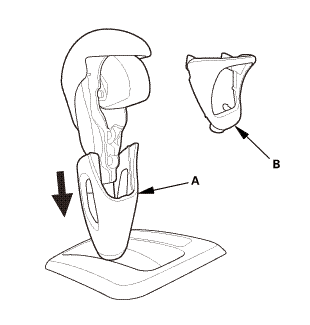

3. Pull down the shift lever ring (A) if necessary, and install the shift lever knob cover (B). Pull up the shift lever ring to secure the knob cover.
