HandsFreeLink Control Unit 32P Connector

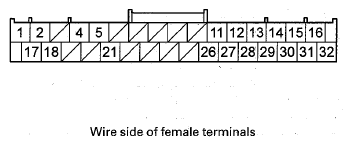

Fig 1: Identifying Handsfreelink Control Unit 32P Connector Terminals
G08083264Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire Color Connects to
1 BLK Body ground to G501 (GND)
2 GRIM HFL-navigation voice control switch (STRG SW)
4 YEL Audio-navigation unit (GA-NET BUS +)
5 GRN Audio-navigation unit (GA-NET BUS -)
11 BLK Audio-navigation unit (AUDIO R +)
12 WHT Audio-navigation unit (AUDIO L+)
13 PNK Audio-navigation unit (TELEM SIG +)
14 GRY(1) Shield for terminals No. 15 and No. 16 (MIC SH)
15 LT GRN HFL-navigation microphone (MIC SIG)
16 PUR HFL-navigation microphone (MIC GND)
17 PNK No. 1 (10 A) fuse in the under-dash fuse/relay box (+ B)
18 ORN No. 14 (7.5 A) fuse in the under-dash fuse/relay box (ACC)
21 GRY(1) Shield for terminals No. 4 and No. 5 (GA-NET BUS SH)
26 GRY(1) Shield for terminals No. 11, No. 12, No. 27, and No. 28 (AUDIO SH)
27 RED Audio-navigation unit (AUDIO R -)
28 GRN Audio-navigation unit (AUDIO L-)
29 BLU Audio-navigation unit (TELEM SIG -)
30 GRY(1) Shield for terminals No. 13 and No. 29 (TELEM SIG SIG)
31 YEL Audio-navigation unit (HFT-NAVI MIC+)
32 GRN Audio-navigation unit (HFT-NAVI MIC-)
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
