Mode Control Switch Test

  1. Remove the heater-A/C control panel (see HEATER-A/C CONTROL PANEL REMOVAL/INSTALLATION  ).
  2. Check for continuity between heater-A/C control panel 6P connector terminals No. 1 and No. 2, while rotating the mode control dial from (A) and (B).

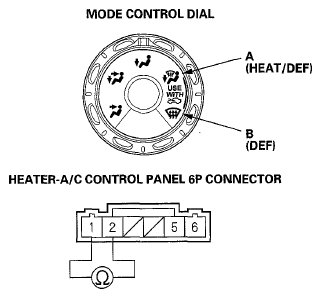

    Fig 1: Checking Continuity Between Heater-A/C Control Panel 6P Connector Terminals No. 1 & No. 2
    G05959822Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If there is no continuity, replace the mode control switch (see HEATER CONTROL PANEL DISASSEMBLY AND REASSEMBLY ).
