Circuit Diagram - PCM A/T Control System - Seven-position Transmission

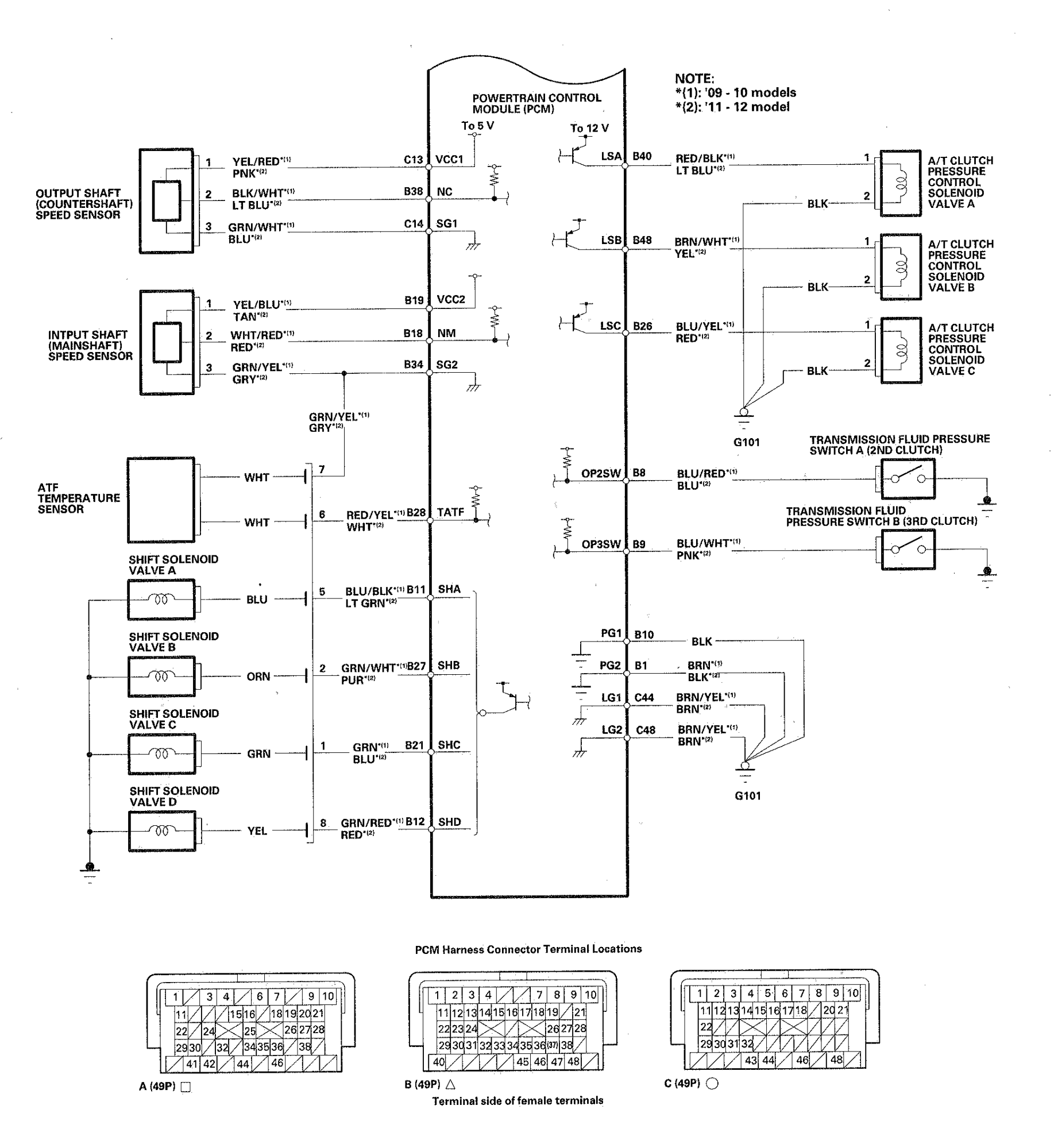

Fig 1: PCM A/T Control System - Seven-Position Transmission Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

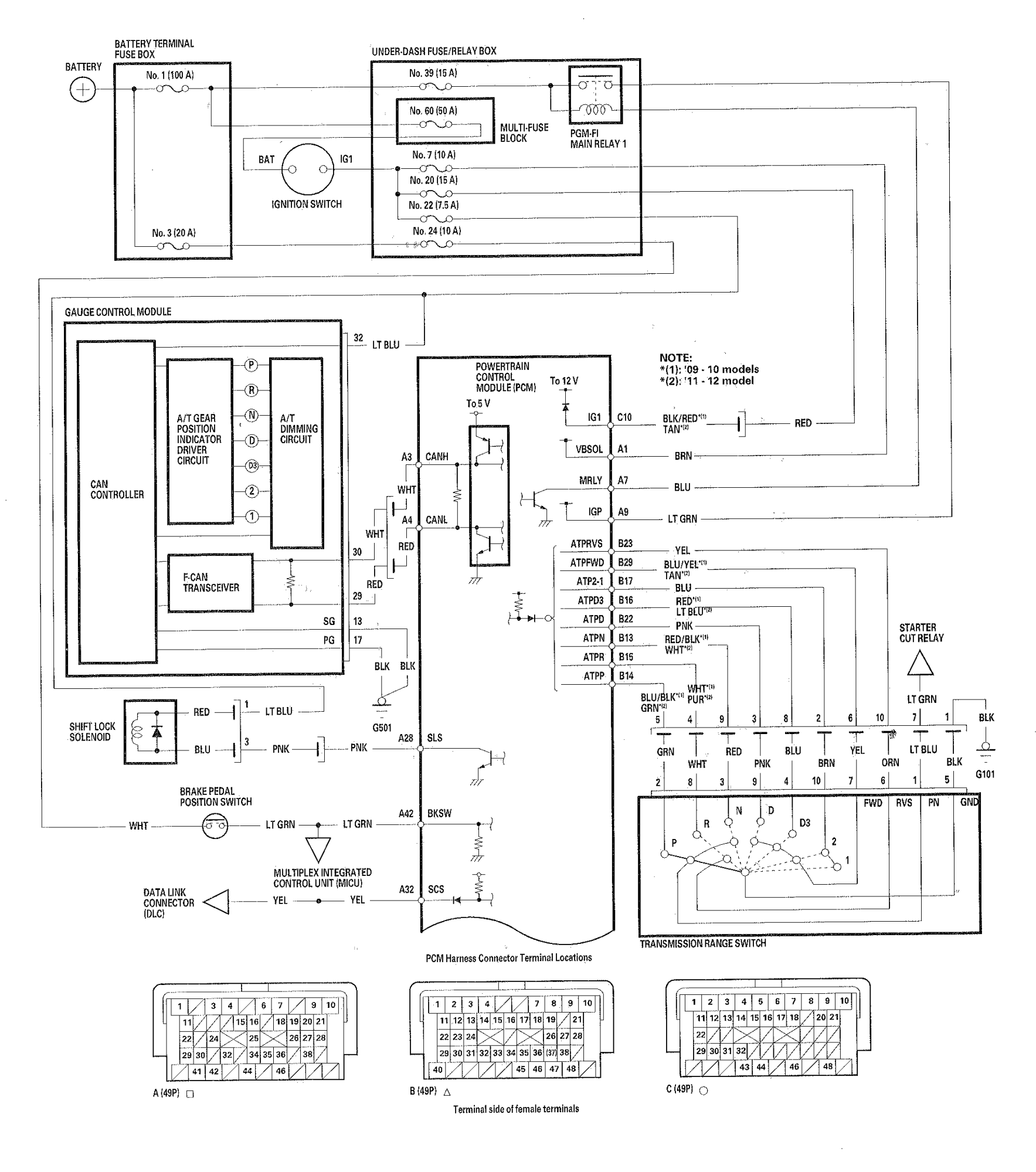

Fig 2: PCM A/T Control System - Seven-Position Transmission Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
