Cruise Control Combination Switch Test

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES in the SRS before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Disconnect the 20P connector from the cable reel.
   Fig 1: Identifying Cruise Control Combination 20P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the table below.
   • If there is continuity, and it matches the table, but the cruise control input test, indicated a faulty switch check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).

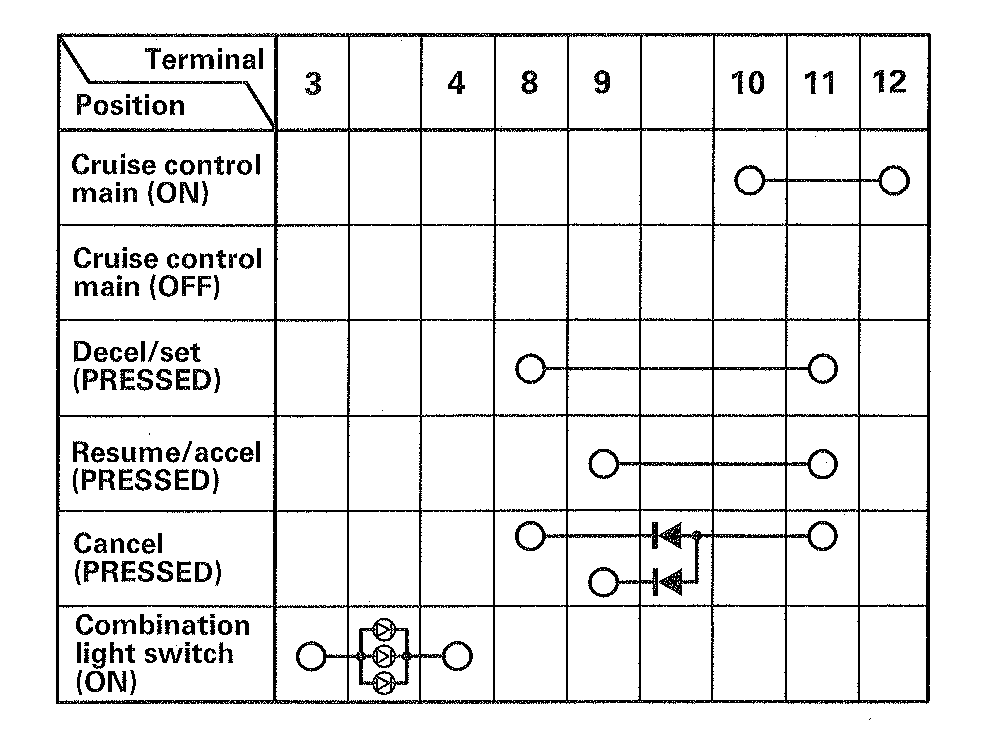

     Fig 2: Identifying Cruise Control Main Switch Continuity Table

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Use a diode tester between the terminals according to the table below. If the diode fails the test, replace the switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
   Fig 3: Identifying Cruise Control Main Switch Continuity Table

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
