GPS Antenna Removal/Installation
- Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION
).
- Remove the gauge control module GAUGE CONTROL MODULE REPLACEMENT

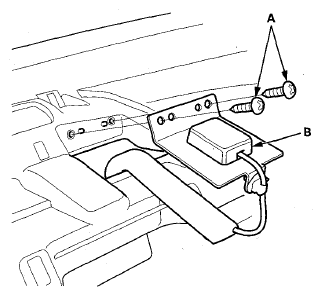

- Remove the screws (A) from the GPS antenna (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

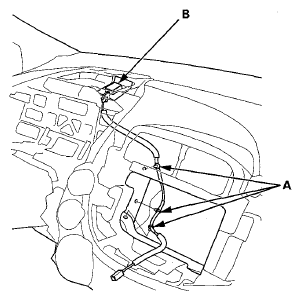

- Remove the wire harness clips (A), the screws, and the GPS antenna (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the GPS antenna in the reverse order of removal.
