Transmission Range Switch Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
  2. Shift to N.
  3. Remove the transmission range switch cover.

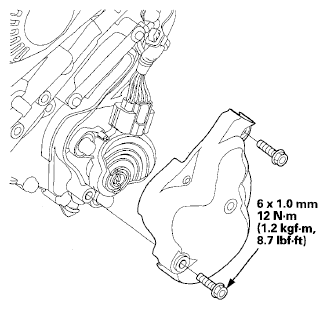

    Fig 1: Removing Transmission Range Switch Cover
    G06768563Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the transmission range switch.
    Fig 2: Removing Transmission Range Switch
    G06768564Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Make sure the shift position is in N. If necessary, put the shift lever into N.
    NOTE: Do not use the selector control shaft to adjust the shift position. If the control shaft tips are squeezed together it will cause a faulty signal or position due to play between the selector control shaft and switch.
  6. Align the cutouts (A) on the rotary-frame with the neutral positioning cutouts (B) on the transmission range switch (C), then put a 2.0 mm (0.08 in) feeler gauge blade (D) in the cutouts to hold the switch in the N position.
    NOTE: Be sure to use a 2.0 mm (0.08 in) blade or equivalent to hold the switch in the N position.
    Fig 3: Aligning Cutouts On Rotary-Frame With Neutral Positioning Cutouts
    G06768565Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.08 in) blade (C).

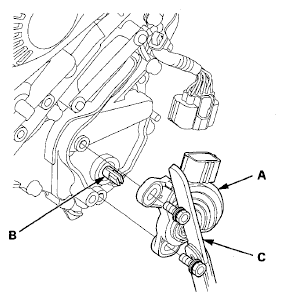

    Fig 4: Installing Transmission Range Switch On Selector Control Shaft
    G06768566Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Tighten the bolts on the transmission range switch while you continue to hold the N position. Do not move the transmission range switch when tightening the bolts. Remove the feeler gauge.
    Fig 5: Identifying Bolts On Transmission Range Switch
    G06768567Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect the connector securely.
  10. Turn the ignition switch to ON (II). Move the shift lever through all positions, and check the transmission range switch synchronization with the A/T gear position indicator.
  11. Check that the engine starts in P and N, and does not start in any other shift lever position.
  12. Check that the back-up lights come on when the shift lever is in R.
  13. Allow the front wheels to rotate freely, then start the engine, and check the shift lever operation.
  14. Install the transmission range switch cover.
