Transmission Range Switch Test

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the transmission range switch harness connector (A).

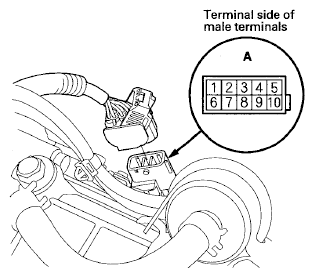

    Fig 1: Disconnecting Transmission Range Switch Harness Connector
    G06768554Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between terminals at the harness connector. There should be continuity between the terminals in the following table for each switch position.

    Transmission Range Switch Harness Connector Seven-position Transmission

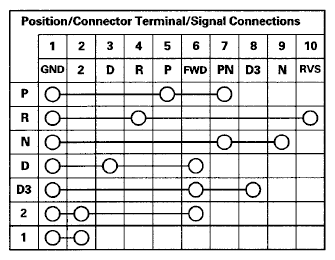

    Fig 2: Continuity Reference Chart
    G06768555Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Transmission Range Switch Harness Connector Five-position Transmission

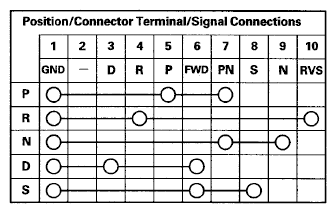

    Fig 3: Continuity Reference Chart - Transmission Range Switch Harness Connector Five-Position Transmission
    G06768556Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Transmission range switch test has finished if the test results are OK.

    If there is no continuity between any terminals, go to step 5.

  5. Raise the vehicle on a lift, or apply the parking brake, block rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
  6. Remove the transmission range switch cover.

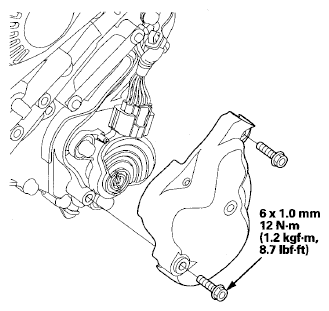

    Fig 4: Removing Transmission Range Switch Cover
    G06768557Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Disconnect the transmission range switch connector.
    Fig 5: Disconnecting Transmission Range Switch Connector
    G06768558Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Check for continuity between terminals at the switch connector. There should be continuity between the terminals in the following table for each switch position.

    Transmission Range Switch Connector Seven-position Transmission

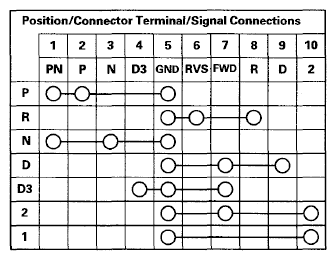

    Fig 6: Continuity Reference Chart - Transmission Range Switch Connector Seven-Position Transmission
    G06768559Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Transmission Range Switch Connector Five-position Transmission

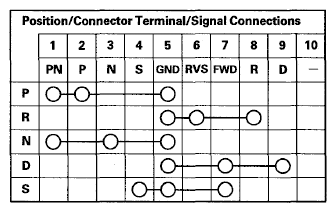

    Fig 7: Continuity Reference Chart - Transmission Range Switch Connector Five-Position Transmission
    G06768560Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. If the transmission range switch continuity check is OK, replace the faulty transmission range switch harness; remove the harness clamps (A) from the clamp bracket (B), remove the transmission range switch harness (C).

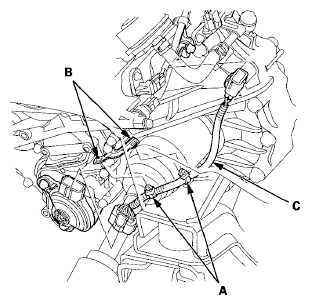

    Fig 8: Removing Transmission Range Switch Harness
    G06768561Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. If there is no continuity between any terminals, remove the transmission range switch, and check the end of the selector control shaft (A).

    Selector Control Shaft:

    Width (B): 6.1-6.2 mm (0.240-0.244 in)

    End Gap (C): 1.8-2.0 mm (0.07-0.08 in)

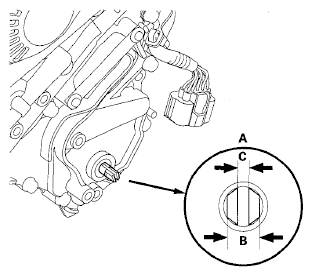

    Fig 9: Measuring Selector Control Shaft Width
    G06768562Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. If the measurement of the selector control shaft end is within the standard, replace the transmission range switch. If the measurement is out of the standard, repair the selector control shaft end, and recheck the transmission range switch continuity.
