System Links
- Select Self-Diagnosis Mode from the navigation screen main menu. The message at the bottom of the screen flashes indicating the diagnostic is running. Make sure you enter the anti-theft code.
- Touch the icon you want to diagnose, then to see the details of that diagnostic function.

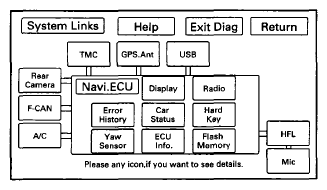

The System Links function runs automatically and displays a flashing message at the bottom of the screen reminding you to have the engine running for the test. The diagnostic tests the following:
- Most of the wires connecting the external navigation components shown in the block diagram.
- The results from the various components shown in the block diagram.
- The microphone is tested by listening to the bong sound produced by the audio-navigation unit from the speakers when the diagnostic is started. This requires that the audio system be operating normally.
When the diagnostic finishes, the icons turn different colors based on their test status. The color definitions are shown below and can also be seen by selecting Help on the System Links screen.
The indication on the screen may not change until you exit and re-enter the Self-Diagnosis Mode. In some cases, you may have to restart the engine for the indication to change. After you repair the affected component or harness, repeat this diagnostic.
Each icon color is explained in the table.
| Icon Colors | Description |
|---|---|
| Green | The system ran a diagnosis and the results are OK. |
| Red | Errors that require replacement of hardware or harness. Examples are connection error or memory diagnosis errors. Troubleshoot for DTCs. |
| Yellow | Errors that don't require hardware replacement, such as leaving the vehicle in ACCESSORY (1) or because of a missing accessory. |
| White | The diagnosis is running. The screen functions are locked out while the diagnosis runs. |
| Gray | The system cannot automatically check this function. You have to select the diagnosis item and manually do additional testing, like checking the navigation buttons in the Hard Key test. When you complete the Hard Key test and return to the System Links menu, the gray icon turns green. |
NOTE:
By selecting the HELP icon, you can see a description for each color.
ICON COLOR INFORMATION
| Icon | Icon Color | ||||||
|---|---|---|---|---|---|---|---|
| GREEN | RED | YELLOW | WHITE | GRAY | |||
| Display | Result is always OK | -- | -- | -- | -- | ||
| Radio | Result of "Connection" under the "Radio" diagnosis menu is OK. | Result of "Connection" under the "Radio" diagnosis menu is NG. | -- | Executing (Not completed) | -- | ||
| GPS Ant. | All result of "Antenna" is OK. | Any result of "Antenna" is NG. | -- | Executing (Not completed) | -- | ||
| Rear Camera | Result of "Connection" under the "Rear Camera" diagnosis menu is OK. | Result of "Connection" under the "Rear Camera" diagnosis menu is NG. | -- | Executing (Not completed) | -- | ||
| A/C(1) | Result of "Connection" under the "Aircon" diagnosis menu is OK while "Ignition" is ON. | Result of "Connection" under the "Aircon" diagnosis menu is NG while "Ignition" is ON. | While ignition is OFF | Executing (Not completed) | -- | ||
| F-CAN | All result of F-CAN related units are OK. | All result of F-CAN related units are NG. | -- | Executing (Not completed) | -- | ||
| Mic | The microphone detect the sound "Pi-Pi-Pon" at the system link menu. | The microphone could not detects the sound "Pi-Pi-Pon" at the system link menu. | -- | Executing (Not completed) | -- | ||
| HFL | Result of "GA-NET" under the "HFL" diagnosis menu is OK. | Result of "GA-NET" under the "HFL" diagnosis menu is NG. | -- | Executing (Not completed) | -- | ||
|
|||||||
| Icon | Icon Color | ||||||
|---|---|---|---|---|---|---|---|
| GREEN | RED | YELLOW | WHITE | GRAY | |||
| ECU Info. | Both D-RAM and FLASH are OK, and all "Program Version", "Serial No.", "Model" are available. | Either the D-RAM or FLASH is NG, or any of the "Program Version", "Serial No.", "Model" is unavailable. | -- | Executing (Not completed) | -- | ||
| Hard Key | All buttons are pressed and are detected under "Hard key" menu. | All buttons are not pressed or pressed but not detected under "Hard key" menu, or exit from "Hard key" menu without the button not detected. | -- | -- | Until changing to "Hard key" menu. | ||
| Error History | -- | -- | "Hard Error" or "Soft Error" is detected under "Error History" menu. | Executing (Not completed) | "Hard Error" or "Soft Error" is not detected under "Error History" menu. | ||
| SD | Result of "Connection" under the "SD" diagnosis menu is OK. | Result of "Connection" under the "SD" diagnosis menu is NG. | -- | Executing (Not completed) | -- | ||
| Yaw Sensor | Result of the "Gyro AD" and "Gyro Zero" under the "Yaw Sensor" diagnosis menu is OK. | Result of the "Gyro AD" and "Gyro Zero" under the "Yaw Sensor" diagnosis menu is NG. | No value can be detected. | Executing (Not completed) | -- | ||
| Car Status | -- | -- | -- | -- | Check these systems manually. | ||
| TMC(1) | Result of Provider Count under the "TMC" diagnosis menu is 1 or more. | -- | Result of Provider Count under the "TMC" diagnosis menu is 0. | -- | -- | ||
| USB | Result of "Connection" under the "USB" diagnosis menu is OK. | Result of "Connection" under the "USB" diagnosis menu is NG. | -- | Executing (Not completed) | -- | ||
|
|||||||
