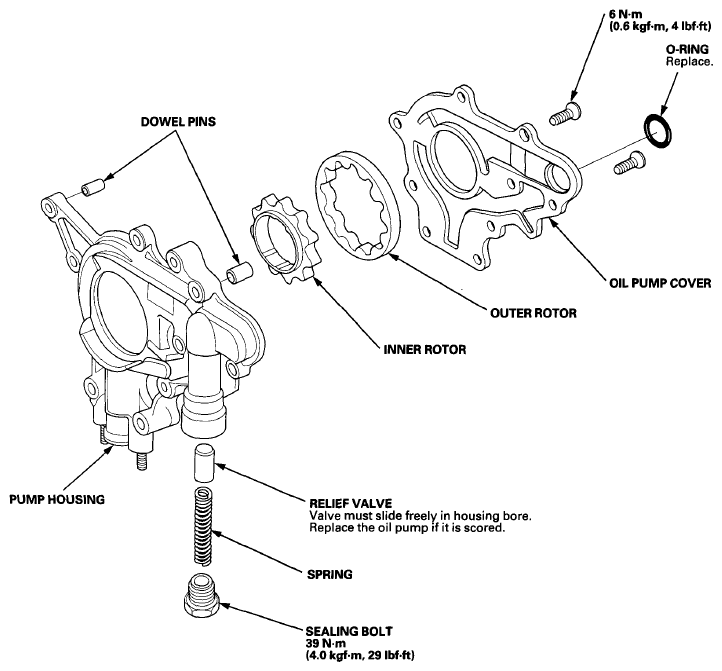

Exploded View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Special Tools Required
- Support Eyelet 07AAK-SNAA600
- Engine Support Hanger, A and Reds AAR-T1256*
*Available through the Honda Tool and Equipment Program 888-424-6857
