Climate Control Unit Auto Idle Stop Conditions

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

The climate control unit calculates a maximum time for auto idle stop. This time depends on whether ECON ON or ECON OFF is selected.

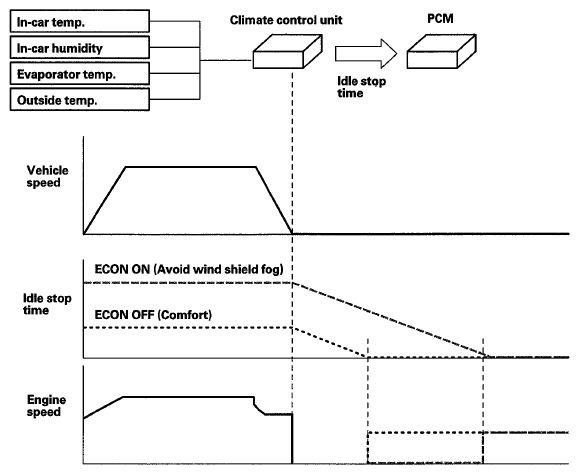

Fig 1: Climate Control Unit Auto Idle Stop Conditions Graph
G06429672Courtesy of AMERICAN HONDA MOTOR CO., INC.
